Item Code | Color | Inside Height | Material | Overall Length | Handle Material | Base Width | Mounting Hole Diameter | Handle Type | Handle Finish | Mounting Hole Center Distance | Handle Style | Handle Color | Overall Height | Mounting Hole Distance | Handle Shape | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

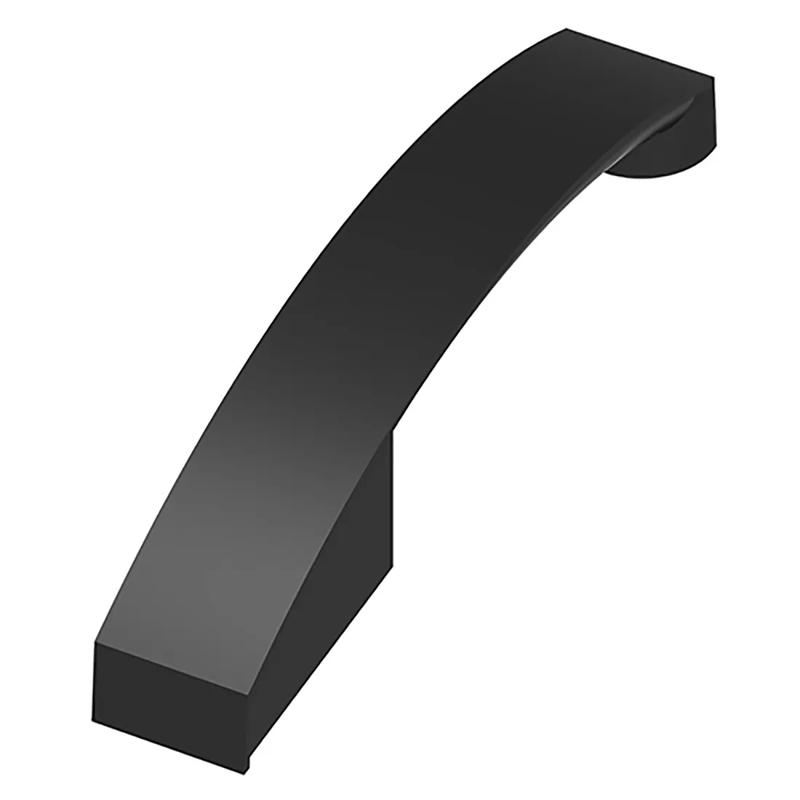

286 | Black | 25.0 mm | GF PA | 186.5 mm | Glass Filled Nylon 6 | 30.0 mm | 3.2 mm | Rectangular Handle | No Finish | 160.0 mm | Bridge, Grab | Black | 40.0 mm | 16.0 mm | Rectangular Bar | Screw Mount, 3.2 mm Hole |
Color
Black
Inside Height
25.0 mm
Material
GF PA
Overall Length
186.5 mm
