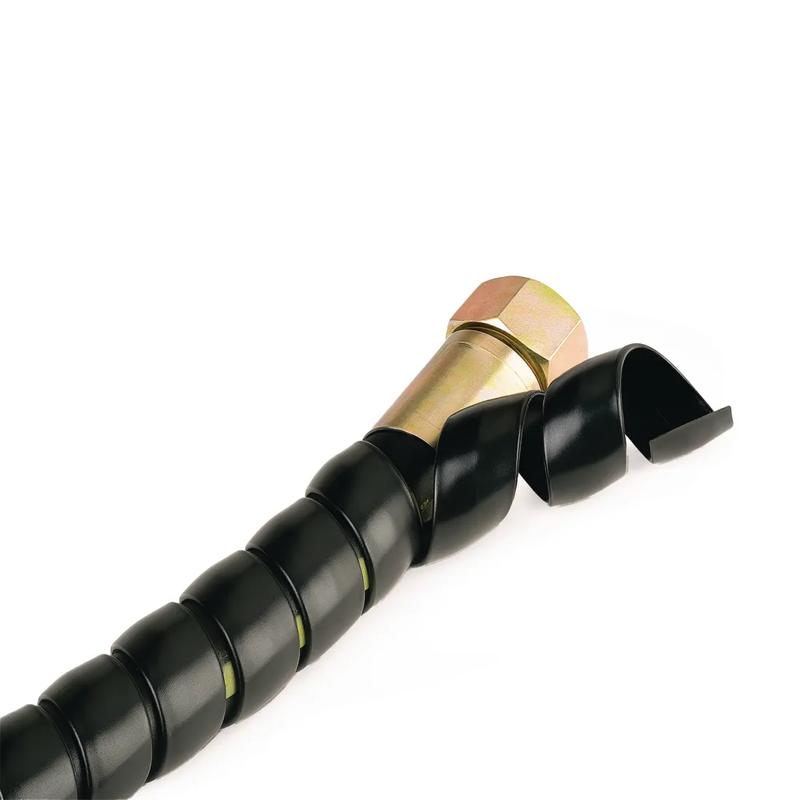

SRSGX FRAS - SPIRALGUARD® Flame Retardant Antistatic Series
Showing 1-10 of 10
Per page:1-10 of 10
Item Code | Color | Wall Thickness | Material | For Use With | Overall Length | Spiral Spacing | Hose Diameter (Seed) | Request Quote |
|---|---|---|---|---|---|---|---|---|
SGX110FRASA | Gray | 0.295 in | HDPE | -64 Hydraulic Hose | 32.81 ft | 2.200 in | 3.307 in | |
SGX32FRASA | Gray | 0.138 in | HDPE | -10 and -12 Hydraulic Hose | 65.62 ft | 0.900 in | 0.906 in | |
SGX20FRASA | Gray | 0.098 in | HDPE | -6 Hydraulic Hose | 65.62 ft | 0.610 in | 0.591 in | |
SGX40FRASA | Gray | 0.167 in | HDPE | -16 Hydraulic Hose | 65.62 ft | 1.140 in | 1.201 in | |
SGX25FRASA | Gray | 0.108 in | HDPE | -6 and -8 Hydraulic Hose | 65.62 ft | 0.750 in | 0.748 in | |
SGX75FRASA | Gray | 0.236 in | HDPE | -32 Hydraulic Hose | 65.62 ft | 1.730 in | 2.402 in | |
SGX63FRASA | Gray | 0.217 in | HDPE | -24 Hydraulic Hose | 65.62 ft | 1.550 in | 1.850 in | |
SGX90FRASA | Gray | 0.276 in | HDPE | -48 Hydraulic Hose | 65.62 ft | 2.000 in | 2.776 in | |
SGX50FRASA | Gray | 0.167 in | HDPE | -20 Hydraulic Hose | 65.62 ft | 1.420 in | 1.496 in |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
SGX110FRASA
Color
Gray
Wall Thickness
0.295 in
Material
HDPE
For Use With
-64 Hydraulic Hose
SGX32FRASA
Color
Gray
Wall Thickness
0.138 in
Material
HDPE
For Use With
-10 and -12 Hydraulic Hose
SGX20FRASA
Color
Gray
Wall Thickness
0.098 in
Material
HDPE
For Use With
-6 Hydraulic Hose
SGX40FRASA
Color
Gray
Wall Thickness
0.167 in
Material
HDPE
For Use With
-16 Hydraulic Hose
Per page:
1–5 of 11
