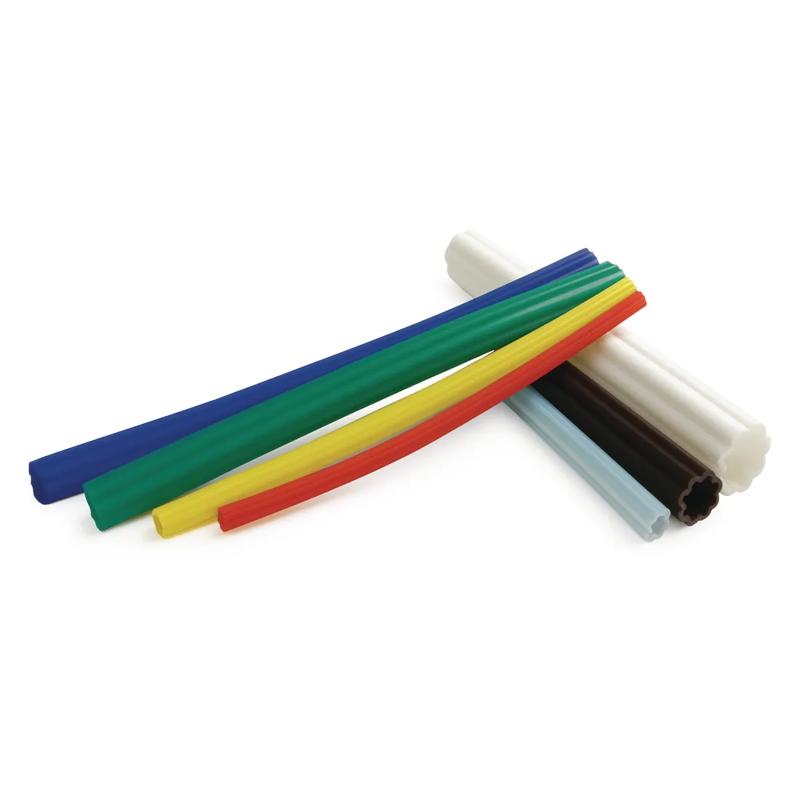

SRSTFL - Flexible Silicone Star Tubing
Showing 1-10 of 26
Per page:1-10 of 26
Item Code | Color | Wall Thickness | Inside Diameter | Roll Length | Inner Ring Min. Diameter | Inner Ring Max. Diameter | Maximum Operating Temperature | Maximum Temperature | Thread Size | Material | Outside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STFL011020A | Red | 0.060 in | 0.209 in | 30.4 m | 0.110 in | 0.209 in | 600 °F | 600 °F | #4-40, #6-32, #8-32, #10-24, M4, M5 | Silicone | - | |
STFL018028A | Yellow | 0.060 in | 0.287 in | 30.4 m | 0.189 in | 0.287 in | 600 °F | 600 °F | #10-24, #2-24, 1/4-20, M5, M6 | Silicone | - | |
STFL072087A | Blue | 0.060 in | 0.875 in | 15.2 m | 0.725 in | 0.875 in | 600 °F | 600 °F | 3/4-10, 7/8-9, M20 | Silicone | - | |
STFL025037A | Clear | 0.060 in | 0.374 in | 30.4 m | 0.256 in | 0.374 in | 600 °F | 600 °F | 5/16-18, M8 | Silicone | - | |
STFL062075A | Rusty | 0.060 in | 0.750 in | 15.2 m | 0.625 in | 0.750 in | 600 °F | 600 °F | 5/8-11, 11/16 in, M16, M18 | Silicone | - | |
STFL050062A | Purple | 0.060 in | 0.625 in | 30.4 m | 0.500 in | 0.625 in | 600 °F | 600 °F | 9/16-12, 5/8-11 | Silicone | - | |
STFL033045A | Blue | 0.060 in | 0.452 in | 30.4 m | 0.335 in | 0.452 in | 600 °F | 600 °F | 3/8-16, M10 | Silicone | - | |
STFL042055A | Green | 0.060 in | 0.551 in | 30.4 m | 0.421 in | 0.551 in | 600 °F | 600 °F | 7/16-14, 1/2-13, M12, M14 | Silicone | - | |
STFL085100A | White | 0.060 in | 1.000 in | 15.2 m | 0.850 in | 1.000 in | 600 °F | 600 °F | M20, M24, M25, #1-8 | Silicone | - |
Per page:
1-10 of 26
1–5 of 26 variants
Per page:
STFL011020A
Color
Red
Wall Thickness
0.060 in
Inside Diameter
0.209 in
Roll Length
30.4 m
STFL018028A
Color
Yellow
Wall Thickness
0.060 in
Inside Diameter
0.287 in
Roll Length
30.4 m
STFL072087A
Color
Blue
Wall Thickness
0.060 in
Inside Diameter
0.875 in
Roll Length
15.2 m
STFL025037A
Color
Clear
Wall Thickness
0.060 in
Inside Diameter
0.374 in
Roll Length
30.4 m
Per page:
1–5 of 27
