SRSPP - Straight Pull Plugs for Thru Holes
Showing 1-10 of 78
Per page:1-10 of 78

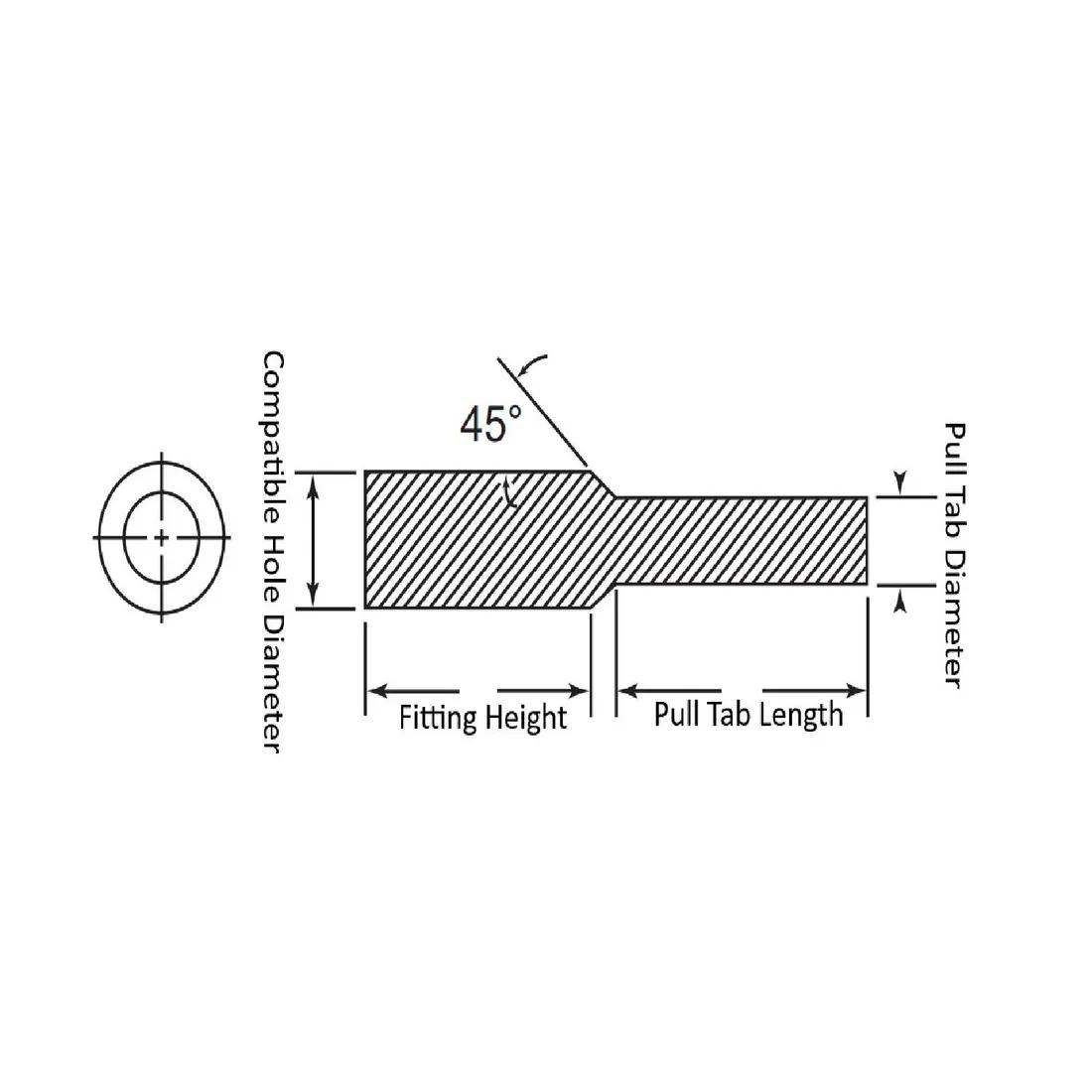

Item Code | Color | Fitting Diameter | Hardness | Pull-Tab Length | Chamfer Angle | Maximum Operating Temperature | Maximum Temperature | Material | Overall Diameter | Fitting Style | Pull-Tab Diameter | Fitting Height | Flanged | Thread Size | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPP0091C | Black | 2.3 mm | 50 +/-5 Durometer (Shore A) | 15.9 mm | 45 ° | 425 °F | 425 °F | EPDM | 0.091 in | Push-Fit | 1.6 mm | 15.9 mm | N | - | - | |
SPP0073C | Black | 1.9 mm | 50 +/-5 Durometer (Shore A) | 15.0 mm | 45 ° | 425 °F | 425 °F | EPDM | 0.073 in | Push-Fit | 1.2 mm | 15.5 mm | N | 1/16 in, M2 | - | |
SPP0062A | Natural | 1.6 mm | 55 +/-5 Durometer (Shore A) | 8.6 mm | 45 ° | 600 °F | 600 °F | Silicone | 0.062 in | Push-Fit | 1.2 mm | 9.5 mm | N | #0-80 | 80 TPI | |
SPP0067A | Natural | 1.7 mm | 55 +/-5 Durometer (Shore A) | 15.5 mm | 45 ° | 600 °F | 600 °F | Silicone | 0.067 in | Push-Fit | 1.2 mm | 15.9 mm | N | - | - | |
SPP0109A | Natural | 2.8 mm | 55 +/-5 Durometer (Shore A) | 25.4 mm | 45 ° | 600 °F | 600 °F | Silicone | 0.109 in | Push-Fit | 1.6 mm | 25.4 mm | N | #4-40 | 40 TPI | |
SPP0067B | Black | 1.7 mm | 50 +/-5 Durometer (Shore A) | 15.5 mm | 45 ° | 425 °F | 425 °F | EPDM | 0.067 in | Push-Fit | 1.2 mm | 15.9 mm | N | - | - | |
SPP0118A | Natural | 3.0 mm | 55 +/-5 Durometer (Shore A) | 25.4 mm | 45 ° | 600 °F | 600 °F | Silicone | 0.118 in | Push-Fit | 2.1 mm | 25.4 mm | N | - | - | |
SPP0154A | Natural | - | 55 +/-5 Durometer (Shore A) | 15.9 mm | 45 ° | 600 °F | 600 °F | Silicone | 0.154 in | Push-Fit | 2.1 mm | 16.1 mm | N | - | - | |
SPP0105A | Natural | - | 55 +/-5 Durometer (Shore A) | 25.4 mm | 45 ° | 600 °F | 600 °F | Silicone | 0.105 in | Push-Fit | 1.8 mm | 25.4 mm | N | M3 | - |
Per page:
1-10 of 78
1–5 of 78 variants
Per page:
SPP0091C
Color
Black
Fitting Diameter
2.3 mm
Hardness
50 +/-5 Durometer (Shore A)
Pull-Tab Length
15.9 mm
SPP0073C
Color
Black
Fitting Diameter
1.9 mm
Hardness
50 +/-5 Durometer (Shore A)
Pull-Tab Length
15.0 mm
SPP0062A
Color
Natural
Fitting Diameter
1.6 mm
Hardness
55 +/-5 Durometer (Shore A)
Pull-Tab Length
8.6 mm
SPP0067A
Color
Natural
Fitting Diameter
1.7 mm
Hardness
55 +/-5 Durometer (Shore A)
Pull-Tab Length
15.5 mm
Per page:
1–5 of 79
