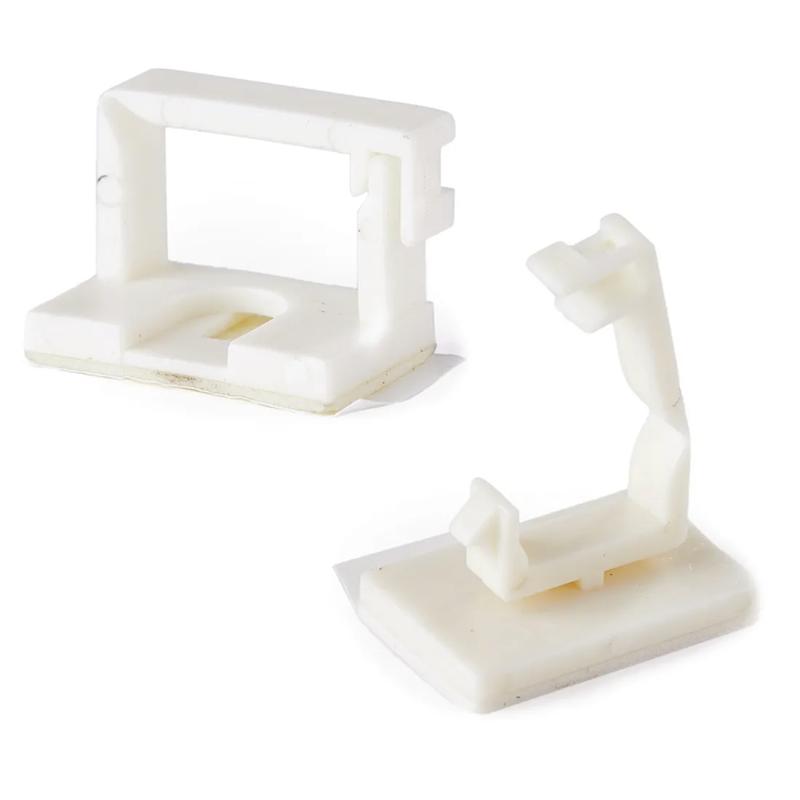

SRWSLTB - Wire Saddles Locking Top
Showing 1-5 of 5
Per page:1-5 of 5

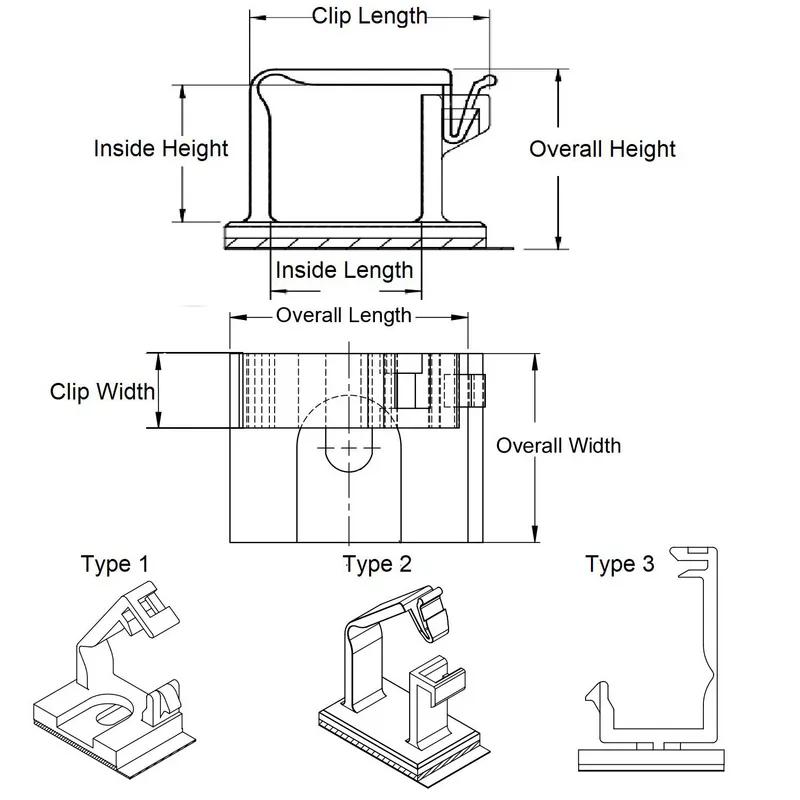

Item Code | Color | Inside Height | Overall Width | Mounting Hole Diameter | Adhesive Material | Inside Length | Base Height | Overall Height | Maximum Operating Temperature | Mount Type | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Length to Hole Center | Base Width | Minimum Inside Diameter | Base Length | Clip Width | Type | Hole Diameter | Screw Size | Thread Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WSLTB-01A-19A | Natural | 4.8 | 12.7 mm | 3.2 mm | Acrylic | 7.0 mm | 2.5 mm | 10.4 | 110 °C | Adhesive | 10.7 | UL94 V-0 | -40 °C | Nylon 6/6 | 16.0 mm | UL E70062 | 6.4 mm | 0.500 in | 1.6 mm | 9.5 mm | 16.8 mm | 1 | - | - | - | |
WSLTB-03A-19A | Natural | 11.0 | 12.0 mm | - | Acrylic | - | 1.5 mm | 17.5 | 110 °C | Adhesive | 12.7 | UL94 V-0 | -40 °C | Nylon 6/6 | 19.0 mm | UL E70062 | - | 12.0 mm | - | 9.5 mm | 16.8 mm | 2 | - | - | - | |
WSLTB-02A-19 | Natural | 10.0 | 12.7 mm | 3.2 mm | - | 7.0 mm | 2.5 mm | 14.7 mm | 110 °C | Screw, SR-30XX Rivet | 16.3 | UL94 V-0 | -40 °C | Nylon 6/6 | 21.5 mm | UL E70062 | 6.4 mm | - | 1.6 mm | - | 22.4 mm | 1 | 0.125 in | #4, M3 | #4;M3 | |
WSLTB-02A-19A | Natural | 10.0 | 12.7 mm | 3.2 mm | Acrylic | 7.0 mm | 2.5 mm | 15.5 | 110 °C | Adhesive | 16.3 | UL94 V-0 | -40 °C | Nylon 6/6 | 21.5 mm | UL E70062 | 6.4 mm | 0.500 in | 1.6 mm | 9.5 mm | 22.4 mm | 1 | - | - | - | |
WSLTB-01A-19 | Natural | 4.8 | 12.7 mm | 3.2 mm | - | 7.0 mm | 2.5 mm | 9.6 mm | 110 °C | Screw, SR-30XX Rivet | 10.7 | UL94 V-0 | -40 °C | Nylon 6/6 | 16.0 mm | UL E70062 | 6.4 mm | - | 1.6 mm | - | 16.8 mm | 1 | 0.125 in | #4, M3 | #4;M3 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
WSLTB-01A-19A
Color
Natural
Inside Height
4.8
Overall Width
12.7 mm
Mounting Hole Diameter
3.2 mm
WSLTB-03A-19A
Color
Natural
Inside Height
11.0
Overall Width
12.0 mm
Base Width
12.0 mm
WSLTB-02A-19
Color
Natural
Inside Height
10.0
Hole Diameter
0.125 in
Overall Width
12.7 mm
WSLTB-02A-19A
Color
Natural
Inside Height
10.0
Overall Width
12.7 mm
Mounting Hole Diameter
3.2 mm
Per page:
1–5 of 6
