SRWSLT - Locking Wire/Cable Saddles
Showing 1-10 of 20
Per page:1-10 of 20

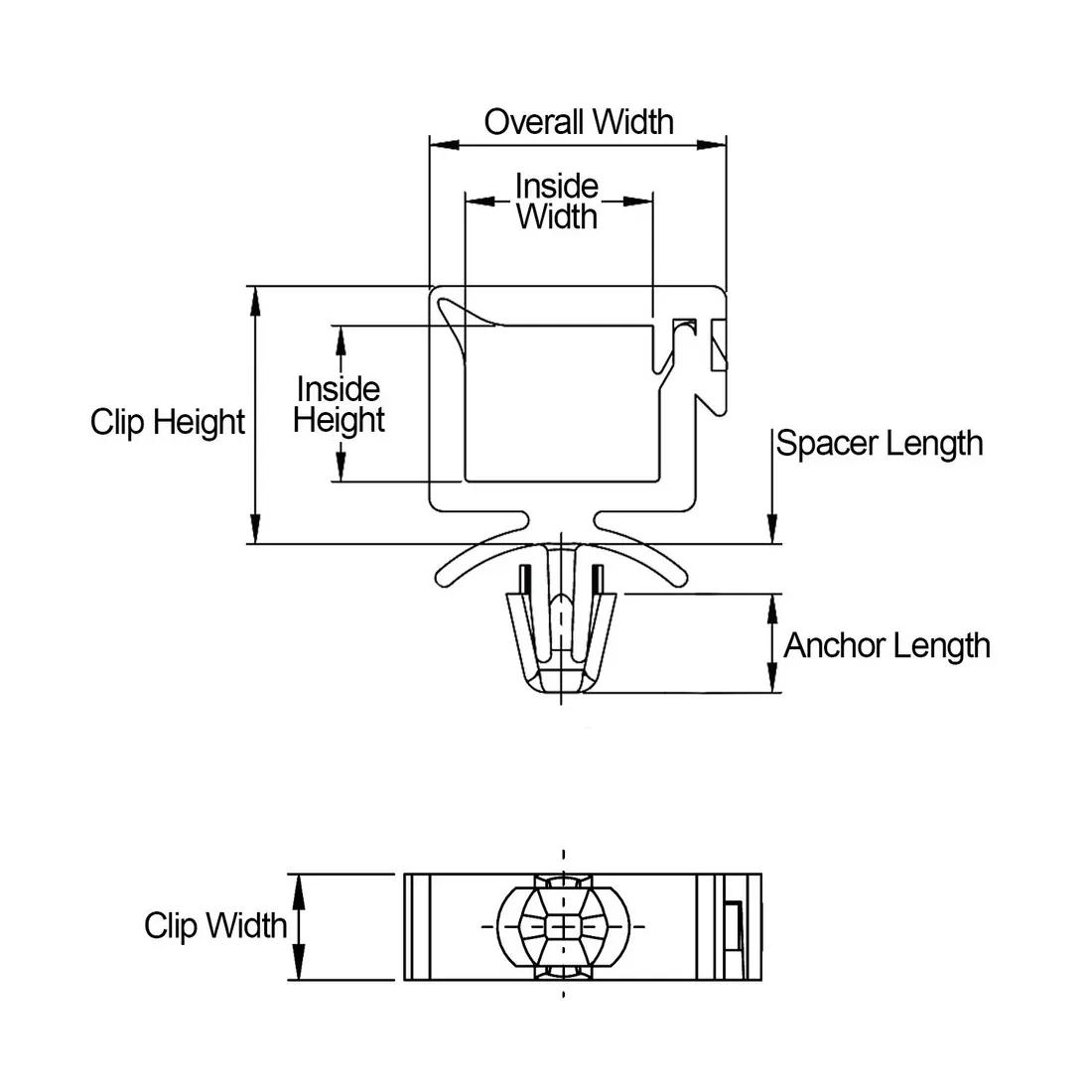

Item Code | Color | Inside Height | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Clip Depth | Locking Head Height | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Overall Width | Spacer Length | UL/CSA Description | Anchor Length | Panel Thickness | Mounting Hole Width | Mounting Hole Length | Mounting Method | Length to Hole Center | Slot Height | Base Length | Minimum Panel Thickness | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WSLT-01A-19 | Natural | 4.8 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 10.6 mm | 110 °C | 16.8 mm | 10.7 | UL94 V-0 | -40 °C | Nylon 6/6 | 16.8 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-01-2-01 | Natural | 8.8 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 14.6 mm | 85 °C | 16.8 mm | 10.7 | UL94 V-2 | -40 °C | Nylon 6/6 | 16.8 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-02A-01 | Natural | 10.0 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 15.8 mm | 85 °C | 22.4 mm | 16.3 | UL94 V-2 | -40 °C | Nylon 6/6 | 22.4 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-01A-01 | Natural | 4.8 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 10.6 mm | 85 °C | 16.8 mm | 10.7 | UL94 V-2 | -40 °C | Nylon 6/6 | 16.8 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-3.5-2-1-01 | Natural | 3.4 | 1.57 | 9.5 mm | 3.5 mm | 5.0 mm | 3.0 mm | 8.9 mm | 85 °C | 19.6 mm | 13.5 | UL94 V-2 | -40 °C | Nylon 6/6 | 19.6 mm | 2.5 mm | UL E70062 | 3.0 mm | - | - | - | - | - | - | - | - | - | |
WSLT-03-3-01 | Natural | 21.7 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 27.3 mm | 85 °C | 24.1 mm | 18.0 | UL94 V-2 | -40 °C | Nylon 6/6 | 24.1 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-02A-19 | Natural | 10.0 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 15.8 mm | 110 °C | 22.4 mm | 16.3 | UL94 V-0 | -40 °C | Nylon 6/6 | 22.4 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-03-2-19 | Natural | 14.1 | 1.57 | 14.3 mm | 4.75 mm | 5.0 mm | 5.6 mm | 19.6 mm | 110 °C | 22.4 mm | 16.3 | UL94 V-0 | -40 °C | Nylon 6/6 | 22.4 mm | 2.8 mm | UL E70062 | 5.6 mm | - | - | - | - | - | - | - | - | - | |
WSLT-T-01A-19 | Natural | 5.5 | 1.65 | - | 3.0 mm | 5.1 mm | 2.4 mm | 9.0 mm | 110 °C | 16.7 mm | 10.3 | UL94 V-0 | -40 °C | Nylon 6/6 | - | 1.8 mm | UL E70062 | 2.4 mm | 1.65 mm | - | - | - | - | - | - | - | - |
Per page:
1-10 of 20
1–5 of 20 variants
Per page:
WSLT-01A-19
Color
Natural
Inside Height
4.8
Maximum Panel Thickness
1.57
Base Width
14.3 mm
WSLT-01-2-01
Color
Natural
Inside Height
8.8
Maximum Panel Thickness
1.57
Base Width
14.3 mm
WSLT-02A-01
Color
Natural
Inside Height
10.0
Maximum Panel Thickness
1.57
Base Width
14.3 mm
WSLT-01A-01
Color
Natural
Inside Height
4.8
Maximum Panel Thickness
1.57
Base Width
14.3 mm
Per page:
1–5 of 21
