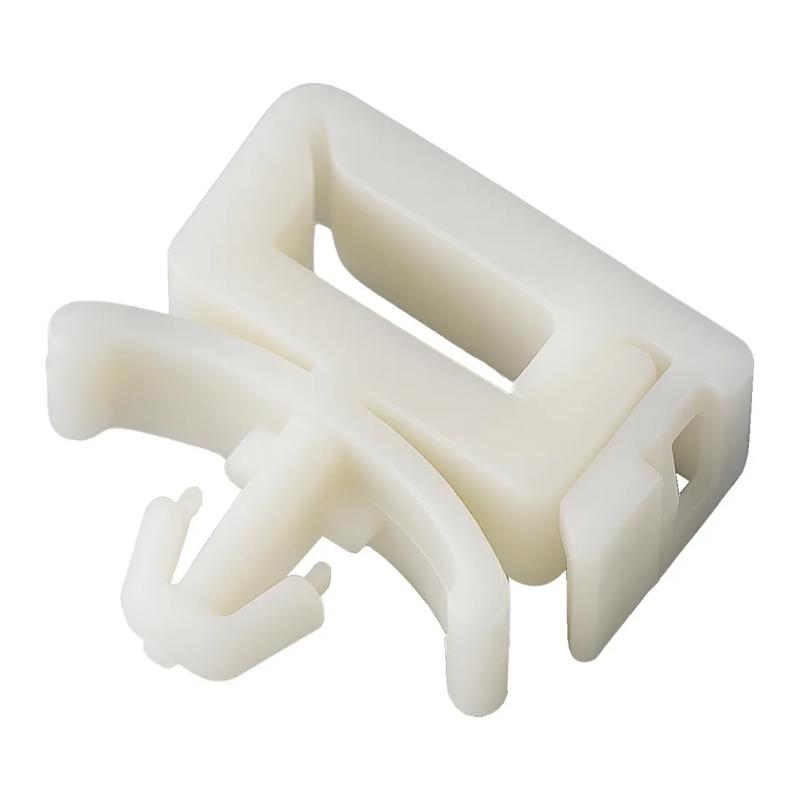

SRWSLC - Locking Wire/Cable Saddles
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Standoff Width | Inside Height | Maximum Panel Thickness | Mounting Hole Diameter | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Color | Standoff Height | Minimum Operating Temperature | Material | Overall Width | Spacer Length | Overall Length | UL/CSA Description | Anchor Length | Strap Width | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WSLC-1-01 | 5.4 mm | 2.0 mm | 2.2 mm | 3.5 mm | 5.8 mm | 85 °C | 4.0 mm | 6.0 mm | UL94 V-2 | Natural | 2.5 mm | -40 °C | Nylon 6/6 | 12.0 mm | 0.5 mm | 12.0 mm | UL E70062 | 2.5 mm | 12.0 mm | 0.8 mm | |
WSLC-5-01 | 5.4 mm | 4.0 mm | 2.2 mm | 3.5 mm | 7.8 mm | 85 °C | 4.0 mm | 12.0 mm | UL94 V-2 | Natural | 2.5 mm | -40 °C | Nylon 6/6 | 18.0 mm | 0.5 mm | 18.0 mm | UL E70062 | 2.5 mm | 12.0 mm | 0.8 mm | |
WSLC-2-01 | 5.4 mm | 4.0 mm | 2.2 mm | 3.5 mm | 7.8 mm | 85 °C | 4.0 mm | 6.0 mm | UL94 V-2 | Natural | 2.5 mm | -40 °C | Nylon 6/6 | 12.0 mm | 0.5 mm | 12.0 mm | UL E70062 | 2.5 mm | 12.0 mm | 0.8 mm | |
WSLC-4-01 | 5.4 mm | 6.0 mm | 2.2 mm | 3.5 mm | 9.8 mm | 85 °C | 4.0 mm | 9.0 mm | UL94 V-2 | Natural | 2.5 mm | -40 °C | Nylon 6/6 | 15.0 mm | 0.5 mm | 15.0 mm | UL E70062 | 2.5 mm | 12.0 mm | 0.8 mm | |
WSLC-6-01 | 5.4 mm | 6.0 mm | 2.2 mm | 3.5 mm | 9.8 mm | 85 °C | 4.0 mm | 12.0 mm | UL94 V-2 | Natural | 2.5 mm | -40 °C | Nylon 6/6 | 18.0 mm | 0.5 mm | 18.0 mm | UL E70062 | 2.5 mm | 12.0 mm | 0.8 mm | |
WSLC-3-01 | 5.4 mm | 4.0 mm | 2.2 mm | 3.5 mm | 7.8 mm | 85 °C | 4.0 mm | 9.0 mm | UL94 V-2 | Natural | 2.5 mm | -40 °C | Nylon 6/6 | 15.0 mm | 0.5 mm | 15.0 mm | UL E70062 | 2.5 mm | 12.0 mm | 0.8 mm |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
WSLC-1-01
Standoff Width
5.4 mm
Inside Height
2.0 mm
Maximum Panel Thickness
2.2 mm
Mounting Hole Diameter
3.5 mm
WSLC-5-01
Standoff Width
5.4 mm
Inside Height
4.0 mm
Maximum Panel Thickness
2.2 mm
Mounting Hole Diameter
3.5 mm
WSLC-2-01
Standoff Width
5.4 mm
Inside Height
4.0 mm
Maximum Panel Thickness
2.2 mm
Mounting Hole Diameter
3.5 mm
WSLC-4-01
Standoff Width
5.4 mm
Inside Height
6.0 mm
Maximum Panel Thickness
2.2 mm
Mounting Hole Diameter
3.5 mm
