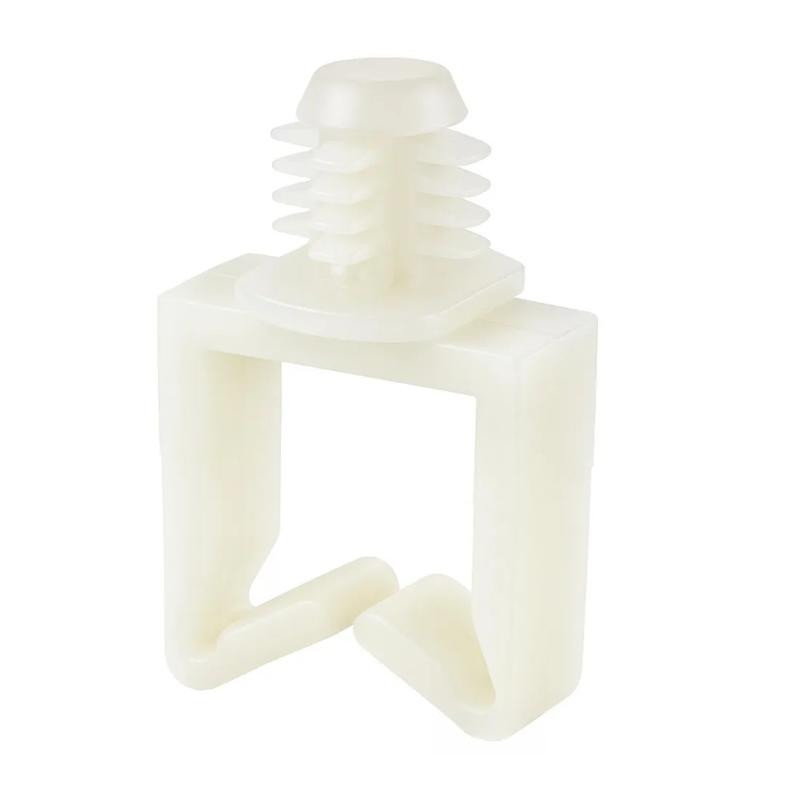

SRWSBH - Wire Saddles
Showing 1-4 of 4
Per page:1-4 of 4

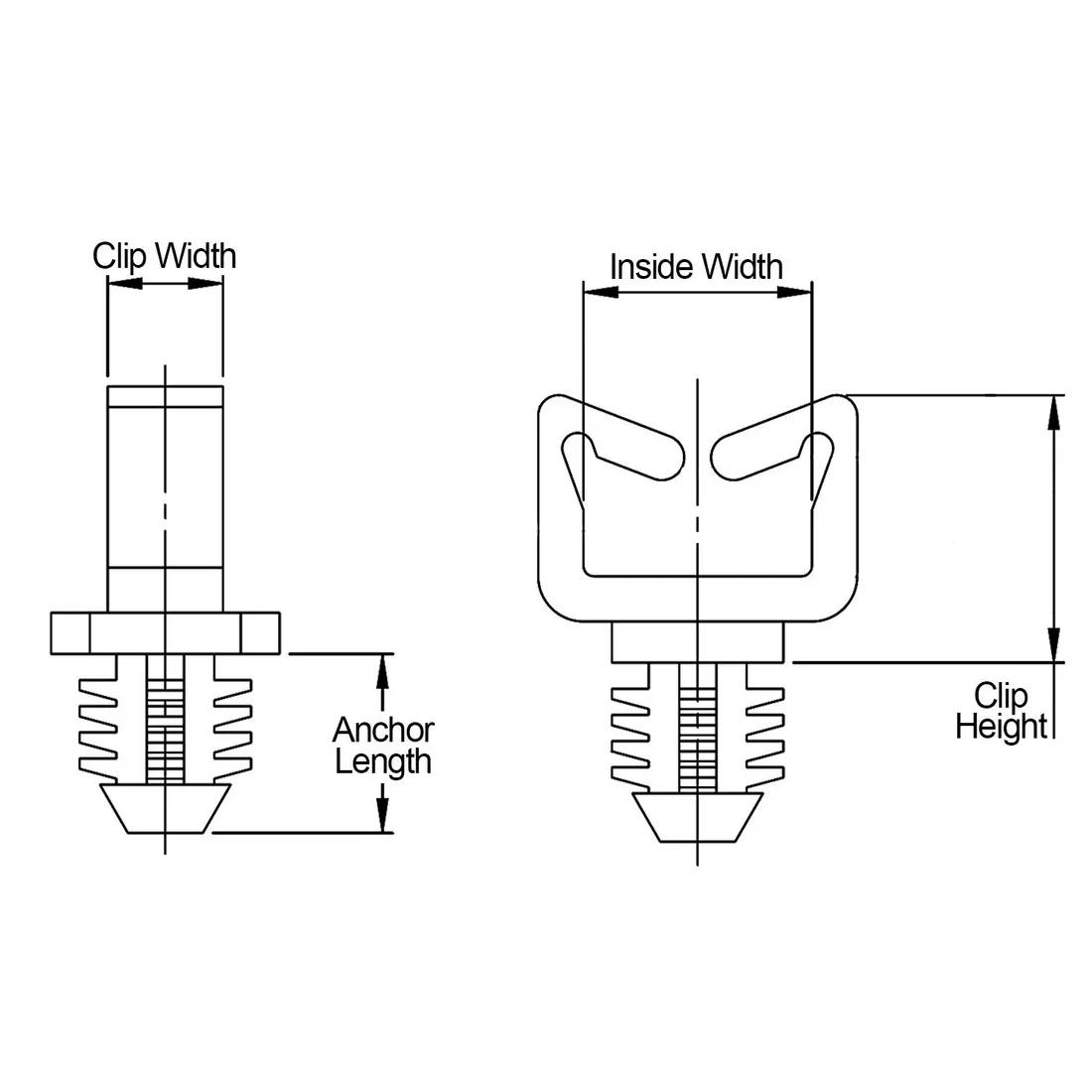

Item Code | Maximum Hole Diameter | Mounting Hole Diameter | Fitting Style | Clip Depth | Gap Width | Panel Thickness | Clip Height | Maximum Operating Temperature | Clip Width | Compatible Hole Diameter | Inside Width | Material Flammability Standard | Color | Standoff Height | Wall Thickness | Inside Height | Minimum Operating Temperature | Material | UL/CSA Description | Anchor Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WSBH-1-01 | 7.9 mm | 7.9 mm | Push-In | 5.6 mm | 1.3 mm | 6.4 mm | 13.2 mm | 85 °C | 15.5 mm | 0.312 in | 11.1 | UL94 V-2 | Natural | 8.7 mm | 2.2 mm | 4.8 | -40 °C | Nylon 6/6 | UL E70062 | 8.7 mm | 6.4 mm | |
WSBH-4-01 | 7.9 mm | 7.9 mm | Push-In | 5.6 mm | 1.3 mm | 6.4 mm | 35.0 mm | 85 °C | 15.5 mm | 0.312 in | 11.1 | UL94 V-2 | Natural | 8.7 mm | 2.2 mm | 26.7 | -40 °C | Nylon 6/6 | UL E70062 | 8.7 mm | 6.4 mm | |
WSBH-3-01 | 7.9 mm | 7.9 mm | Push-In | 5.6 mm | 1.3 mm | 6.4 mm | 27.2 mm | 85 °C | 15.5 mm | 0.312 in | 11.1 | UL94 V-2 | Natural | 8.7 mm | 2.2 mm | 18.8 | -40 °C | Nylon 6/6 | UL E70062 | 8.7 mm | 6.4 mm | |
WSBH-2-01 | 7.9 mm | 7.9 mm | Push-In | 5.6 mm | 1.3 mm | 6.4 mm | 18.0 mm | 85 °C | 15.5 mm | 0.312 in | 11.1 | UL94 V-2 | Natural | 8.7 mm | 2.2 mm | 9.7 | -40 °C | Nylon 6/6 | UL E70062 | 8.7 mm | 6.4 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
WSBH-1-01
Maximum Hole Diameter
7.9 mm
Mounting Hole Diameter
7.9 mm
Fitting Style
Push-In
Clip Depth
5.6 mm
WSBH-4-01
Maximum Hole Diameter
7.9 mm
Mounting Hole Diameter
7.9 mm
Fitting Style
Push-In
Clip Depth
5.6 mm
WSBH-3-01
Maximum Hole Diameter
7.9 mm
Mounting Hole Diameter
7.9 mm
Fitting Style
Push-In
Clip Depth
5.6 mm
WSBH-2-01
Maximum Hole Diameter
7.9 mm
Mounting Hole Diameter
7.9 mm
Fitting Style
Push-In
Clip Depth
5.6 mm
