SRWS - Wire Saddles
Showing 1-10 of 23
Per page:1-10 of 23

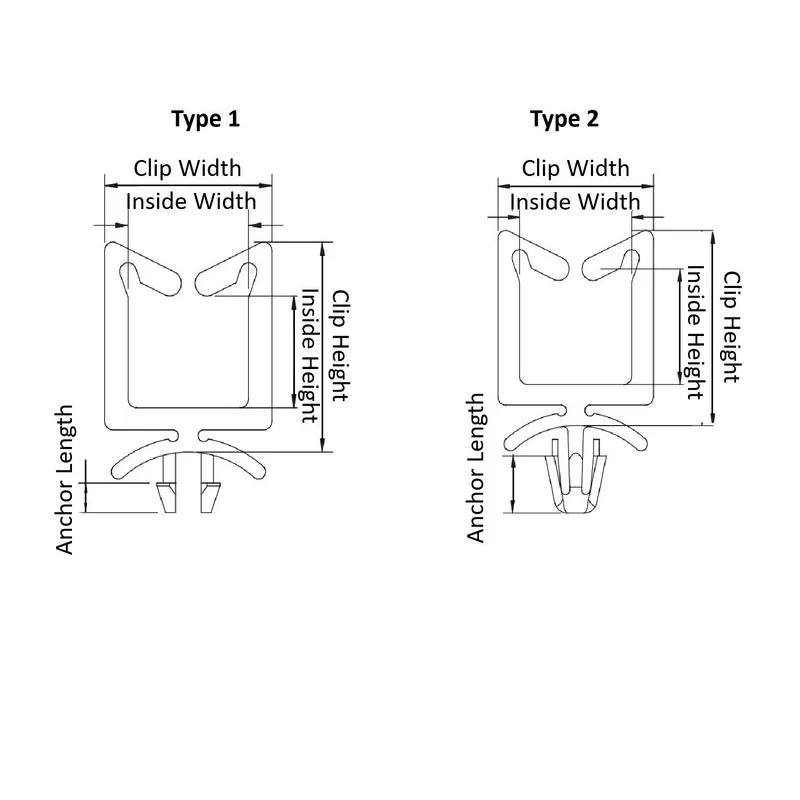

Item Code | Color | Inside Height | Material | Overall Width | Depth | Maximum Panel Thickness | Mounting Hole Diameter | Style | Locking Head Height | Panel Thickness | Clip Height | Inside Width | Material Flammability Standard | UL/CSA Description | Anchor Length | Clip Width | Type | Compatible Hole Diameter | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WS-A-1-01 | Natural | 4.8 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.063 in | 4.8 mm | 1 | 5.6 mm | 1.6 mm | 13.2 mm | 11.1 | UL94 V-2 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-01 | Natural | 9.7 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.063 in | 4.8 mm | 1 | 5.6 mm | 1.6 mm | 18.0 mm | 11.1 | UL94 V-2 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-3-01 | Natural | 18.8 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.125 in | 4.8 mm | 1 | 5.6 mm | 3.2 mm | 27.2 mm | 11.1 | UL94 V-2 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-2-01 | Natural | 9.7 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.125 in | 4.8 mm | 1 | 5.6 mm | 3.2 mm | 18.0 mm | 11.1 | UL94 V-2 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-4-01 | Natural | 26.7 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.125 in | 4.8 mm | 1 | 5.6 mm | 3.2 mm | 35.0 mm | 11.1 | UL94 V-2 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-1-19 | Natural | 4.8 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.125 in | 4.8 mm | 1 | 5.6 mm | 3.2 mm | 13.2 mm | 11.1 | UL94 V-0 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-1-01 | Natural | 4.8 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.125 in | 4.8 mm | 1 | 5.6 mm | 3.2 mm | 13.2 mm | 11.1 | UL94 V-2 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-2-3-19 | Natural | 18.8 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.125 in | 4.8 mm | 1 | 5.6 mm | 3.2 mm | 27.2 mm | 11.1 | UL94 V-0 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha | |
WS-A-1-19 | Natural | 4.8 | Nylon 6/6 | 0.610 in | 5.6 mm | 0.063 in | 4.8 mm | 1 | 5.6 mm | 1.6 mm | 13.2 mm | 11.1 | UL94 V-0 | UL E70062 | 5.6 mm | 15.4 mm | 2 | 0.187 in | Punta de flecha |
Per page:
1-10 of 23
1–5 of 23 variants
Per page:
WS-A-1-01
Color
Natural
Inside Height
4.8
Material
Nylon 6/6
Overall Width
0.610 in
WS-A-2-01
Color
Natural
Inside Height
9.7
Material
Nylon 6/6
Overall Width
0.610 in
WS-A-2-3-01
Color
Natural
Inside Height
18.8
Material
Nylon 6/6
Overall Width
0.610 in
WS-A-2-2-01
Color
Natural
Inside Height
9.7
Material
Nylon 6/6
Overall Width
0.610 in
Per page:
1–5 of 24
