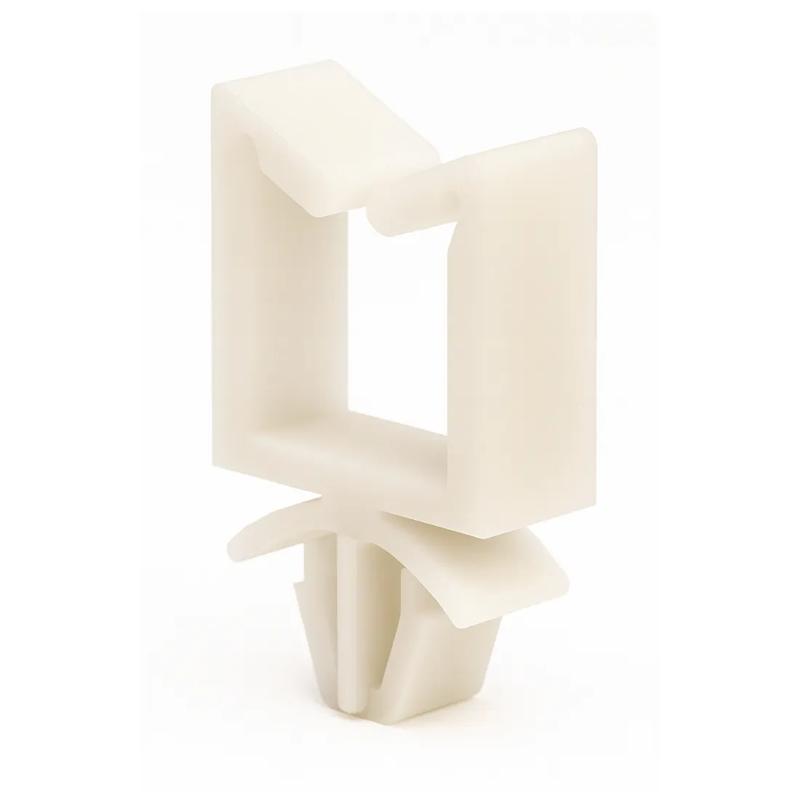

SRWS-SH - Wire Saddles - Square Hole Mount
Showing 1-8 of 8
Per page:1-8 of 8

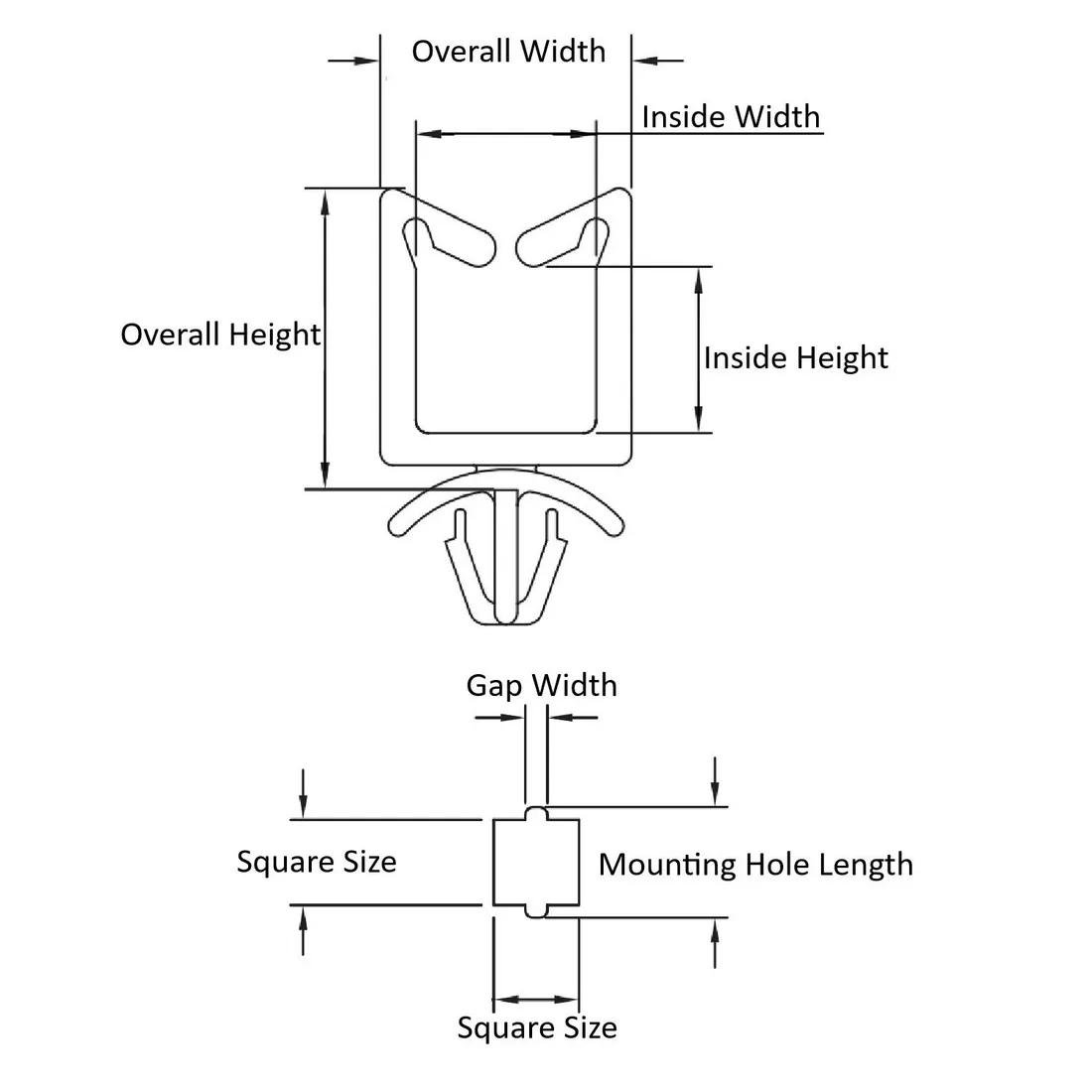

Item Code | Color | Inside Height | Material | Overall Width | UL/CSA Description | Depth | Maximum Panel Thickness | Minimum Panel Thickness | Gap Width | Square Size | Overall Height | Mounting Hole Length | Inside Width | Material Flammability Standard | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WS-SH-3-01 | Natural | 0.750 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 1.060 in | 0.280 in | 0.438 in | UL94 V-2 | |
WS-SH-1-19 | Natural | 0.190 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 0.510 in | 0.280 in | 0.438 in | UL94 V-0 | |
WS-SH-4-01 | Natural | 1.070 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 1.370 in | 0.280 in | 0.438 in | UL94 V-2 | |
WS-SH-2-01 | Natural | 0.390 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 0.700 in | 0.280 in | 0.438 in | UL94 V-2 | |
WS-SH-1-01 | Natural | 0.190 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 0.510 in | 0.280 in | 0.438 in | UL94 V-2 | |
WS-SH-3-19 | Natural | 0.750 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 1.060 in | 0.280 in | 0.438 in | UL94 V-0 | |
WS-SH-4-19 | Natural | 1.070 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 1.370 in | 0.280 in | 0.438 in | UL94 V-0 | |
WS-SH-2-19 | Natural | 0.390 in | Nylon 6/6 | 0.610 in | UL E71558 | 0.219 in | 0.078 in | 0.031 in | 0.067 in | 0.217 in | 0.700 in | 0.280 in | 0.438 in | UL94 V-0 |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
WS-SH-3-01
Color
Natural
Inside Height
0.750 in
Material
Nylon 6/6
Overall Width
0.610 in
WS-SH-1-19
Color
Natural
Inside Height
0.190 in
Material
Nylon 6/6
Overall Width
0.610 in
WS-SH-4-01
Color
Natural
Inside Height
1.070 in
Material
Nylon 6/6
Overall Width
0.610 in
WS-SH-2-01
Color
Natural
Inside Height
0.390 in
Material
Nylon 6/6
Overall Width
0.610 in
Per page:
1–5 of 9
