SRWS-SE - Wire Saddles - Side Entry
Showing 1-10 of 15
Per page:1-10 of 15

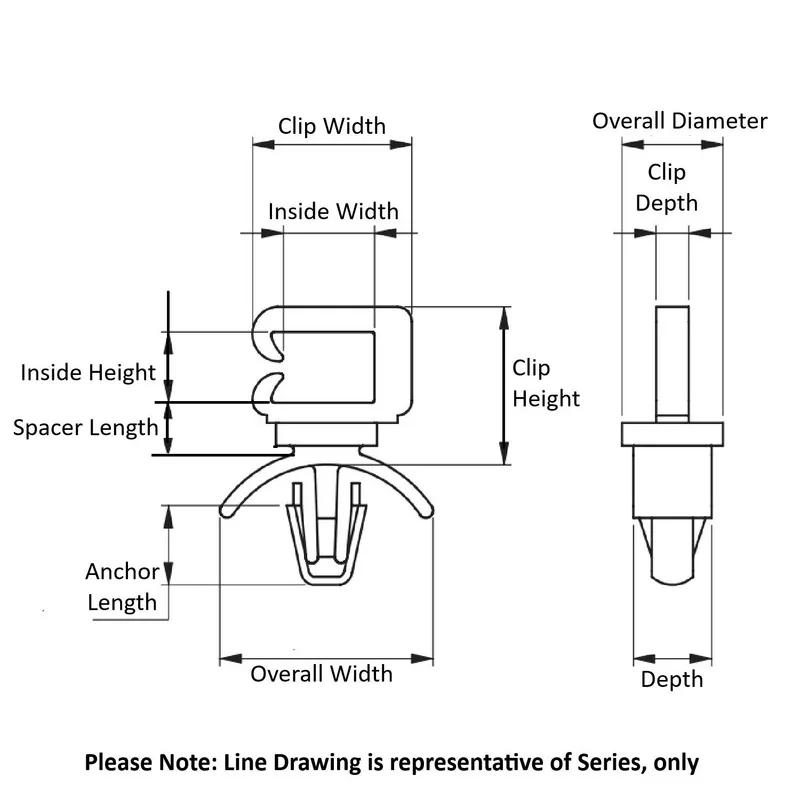

Item Code | Color | Inside Height | Material | Overall Width | Maximum Panel Thickness | Mounting Hole Diameter | Clip Height | Type | Inside Width | Material Flammability Standard | UL/CSA Description | Anchor Length | Minimum Panel Thickness | Clip Width | Spacer Length | Overall Diameter | Clip Depth | Depth | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WS-SE-A-2-01 | Natural | 11.4 | Nylon 6/6 | 0.220 in | 2.0 | 4.8 mm | 16.4 mm | 2 | 10.2 | UL94 V-2 | UL E70062 | 5.3 mm | 0.8 | - | - | - | - | - | |
WS-SE-A-3-19 | Natural | 12.0 | Nylon 6/6 | 0.720 in | 1.8 | 4.8 mm | 18.1 mm | 3 | 12.0 | UL94 V-0 | UL E70062 | 7.4 mm | 0.6 | 18.4 mm | - | - | - | - | |
WS-SE-A-4-19 | Natural | 5.7 mm | Nylon 6/6 | - | 1.8 mm | 6.5 mm | 9.3 mm | 4 | 10.2 mm | UL94 V-0 | UL E70062 | 9.0 mm | 0.6 mm | 3.0 mm | 2.1 mm | 19.0 mm | - | - | |
WS-SE-A-4-01 | Natural | 5.7 | Nylon 6/6 | 0.750 in | 2.0 | 6.5 mm | 9.3 mm | 4 | 10.2 | UL94 V-2 | UL E70062 | 9.0 mm | 0.8 | 3.0 mm | 2.1 mm | 19.0 mm | - | - | |
WS-SE-A-2-19 | Natural | 11.4 | Nylon 6/6 | 0.220 in | 2.0 | 4.8 mm | 16.4 mm | 2 | 10.2 | UL94 V-0 | UL E70062 | 5.3 mm | 0.8 | - | - | - | - | - | |
WS-SE-A-3-01 | Natural | 12.0 | Nylon 6/6 | 0.720 in | 1.8 | 4.8 mm | 18.1 mm | 3 | 12.0 | UL94 V-2 | UL E70062 | 7.4 mm | 0.6 | 18.4 mm | - | - | - | - | |
WS-SE1-2-01 | Natural | 4.2 | Nylon 6/6 | 0.590 in | 1.6 | 3.5 mm | 6.7 mm | 5 | 0.220 in | UL94 V-2 | UL E70062 | 3.0 mm | 0.5 | 15.1 mm | - | - | 5.0 mm | - | |
WS-SE-C-1-19 | Natural | 4.8 mm | Nylon 6/6 | 15.0 mm | 2.0 mm | 4.8 mm | 10.7 mm | 8 | 6.4 mm | UL94 V-2 | UL E70062 | 5.4 mm | 0.8 mm | 11.2 mm | - | 7.1 mm | 2.3 mm | 5.5 mm | |
WS-SE-A-1-19 | Natural | 5.6 | Nylon 6/6 | 0.220 in | 2.0 | 4.75 mm | 10.7 mm | 1 | 10.2 | UL94 V-0 | UL E70062 | 5.3 mm | 0.8 | - | - | - | - | - |
Per page:
1-10 of 15
1–5 of 15 variants
Per page:
WS-SE-A-2-01
Color
Natural
Inside Height
11.4
Material
Nylon 6/6
Overall Width
0.220 in
WS-SE-A-3-19
Color
Natural
Inside Height
12.0
Material
Nylon 6/6
Overall Width
0.720 in
WS-SE-A-4-19
Color
Natural
Inside Height
5.7 mm
Spacer Length
2.1 mm
Maximum Panel Thickness
1.8 mm
WS-SE-A-4-01
Color
Natural
Inside Height
5.7
Maximum Panel Thickness
2.0
Mounting Hole Diameter
6.5 mm
Per page:
1–5 of 16
