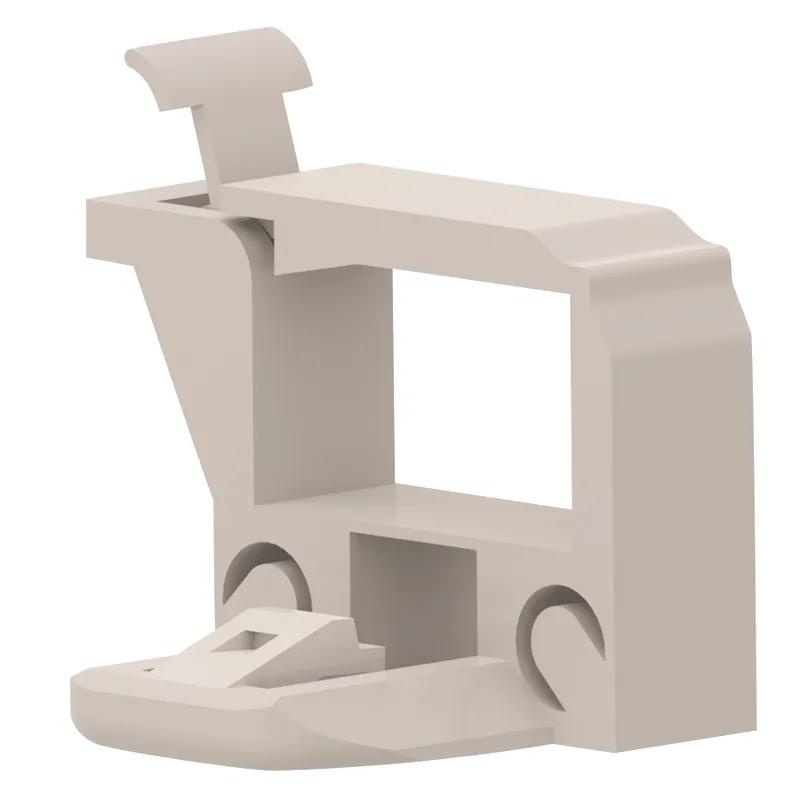

SRSMWSLT - Side Mount Wire Saddles
Showing 1-1 of 1
Per page:1-1 of 1

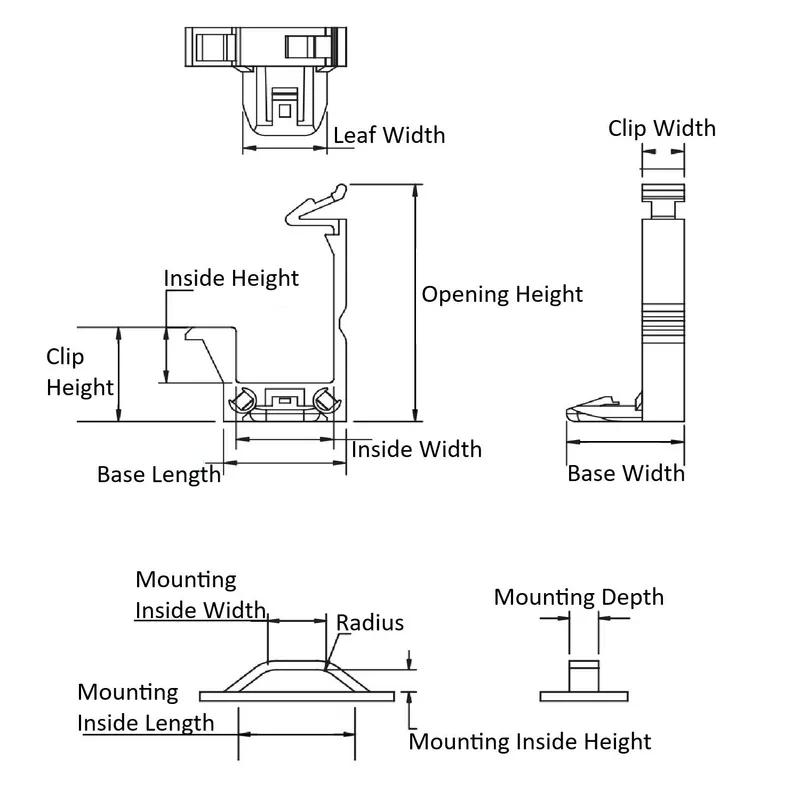

Item Code | Color | Inside Height | Material | Base Width | Base Length | Clip Width | Inside Width | Material Flammability Standard | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
SMWSLT-1-19 | Natural | 7.2 mm | Nylon 6/6 | 14.0 mm | 14.6 mm | 5.0 mm | 11.6 mm | UL94 V-0 | 30.7 mm | 12.2 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
SMWSLT-1-19
Color
Natural
Inside Height
7.2 mm
Material
Nylon 6/6
Base Width
14.0 mm
