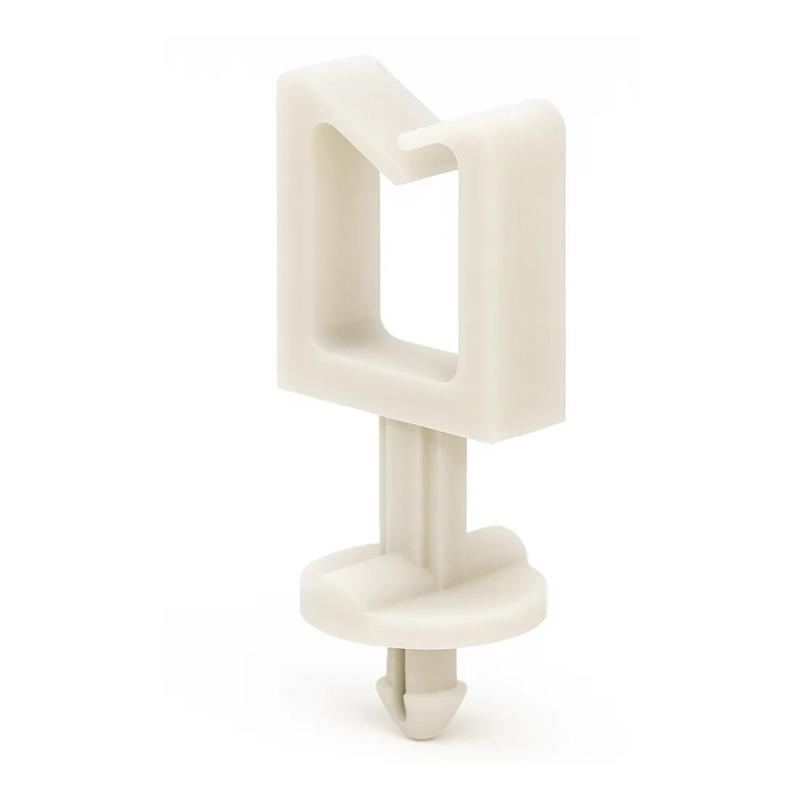

SRSMWS - Standoff Micro Wire Saddles
Showing 1-4 of 4
Per page:1-4 of 4

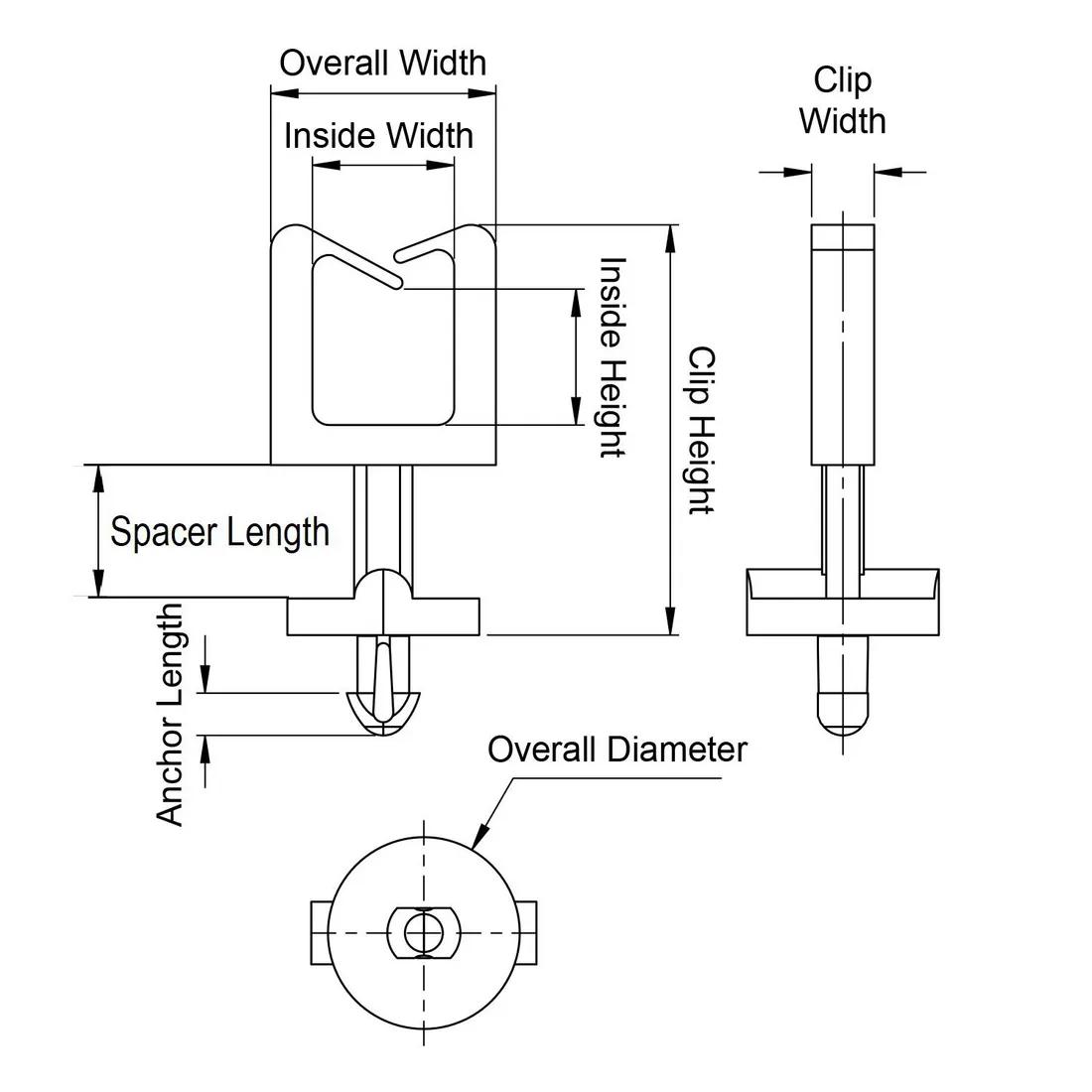

Item Code | Color | Inside Height | Mounting Hole Diameter | Fitting Style | Clip Depth | Locking Head Height | Panel Thickness | Clip Height | Maximum Operating Temperature | Compatible Hole Diameter | Inside Width | Material Flammability Standard | Saddle Type | Minimum Operating Temperature | Material | Overall Diameter | Overall Width | Spacer Length | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Flange Diameter | Style | Height Above the Flange | Cable Diameter | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMWS-1-19 | Natural | 4.1 | 1.78 mm | Push-In | 1.9 mm | 1.3 mm | 1.57 mm | 12.4 mm | 110 °C | 0.070 in | 4.3 | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 5.8 mm | 6.9 | 6.4 | UL E70062 | 1.3 mm | 1.57 | 5.8 mm | 1 | 12.4 mm | 1.78 mm | 6.9 mm | Stand-Off | |
SMWS-1-01 | Natural | 4.1 | 1.78 mm | Push-In | 1.9 mm | 1.3 mm | 1.57 mm | 12.4 mm | 85 °C | 0.070 in | 4.3 | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 5.8 mm | 6.9 | 6.4 | UL E70062 | 1.3 mm | 1.57 | 5.8 mm | 1 | 12.4 mm | 1.78 mm | 6.9 mm | Stand-Off | |
SMWS1-1-19 | Natural | 4.1 | 1.78 mm | Push-In | 1.9 mm | 1.3 mm | 2.36 mm | 12.4 mm | 110 °C | 0.070 in | 4.3 | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 5.8 mm | 6.9 | 6.4 | UL E70062 | 1.3 mm | 2.36 | 5.8 mm | 1 | 12.4 mm | 1.78 mm | 6.9 mm | Stand-Off | |
SMWS1-1-01 | Natural | 4.1 | 1.78 mm | Push-In | 1.9 mm | 1.3 mm | 2.36 mm | 12.4 mm | 85 °C | 0.070 in | 4.3 | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 5.8 mm | 6.9 | 6.4 | UL E70062 | 1.3 mm | 2.36 | 5.8 mm | 1 | 12.4 mm | 1.78 mm | 6.9 mm | Stand-Off |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
SMWS-1-19
Color
Natural
Inside Height
4.1
Mounting Hole Diameter
1.78 mm
Fitting Style
Push-In
SMWS-1-01
Color
Natural
Inside Height
4.1
Mounting Hole Diameter
1.78 mm
Fitting Style
Push-In
SMWS1-1-19
Color
Natural
Inside Height
4.1
Mounting Hole Diameter
1.78 mm
Fitting Style
Push-In
SMWS1-1-01
Color
Natural
Inside Height
4.1
Mounting Hole Diameter
1.78 mm
Fitting Style
Push-In
