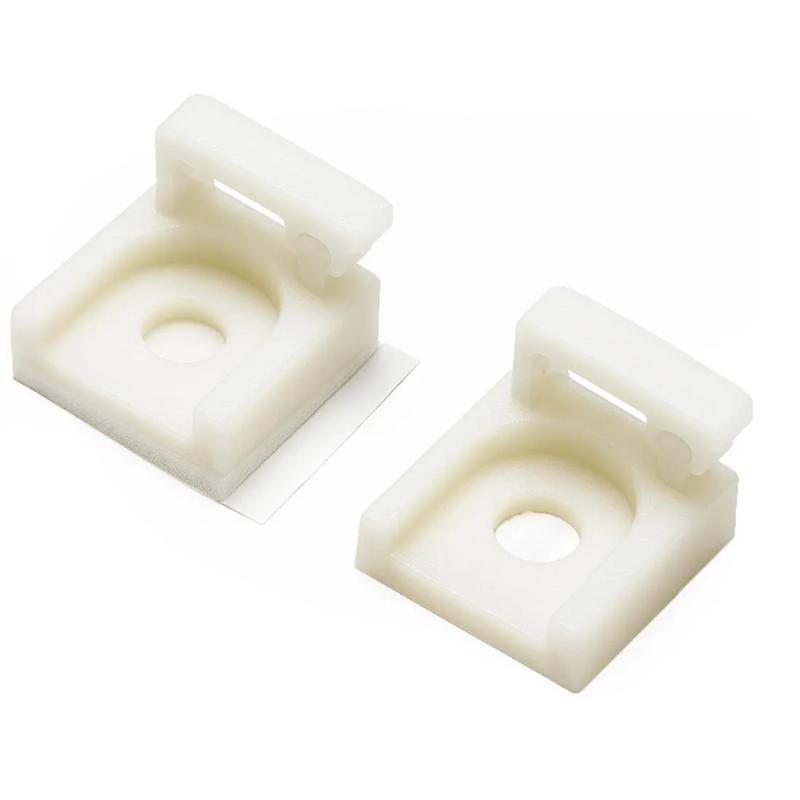

SRMWSLTB - Wire Saddles Locking Top
Showing 1-2 of 2
Per page:1-2 of 2

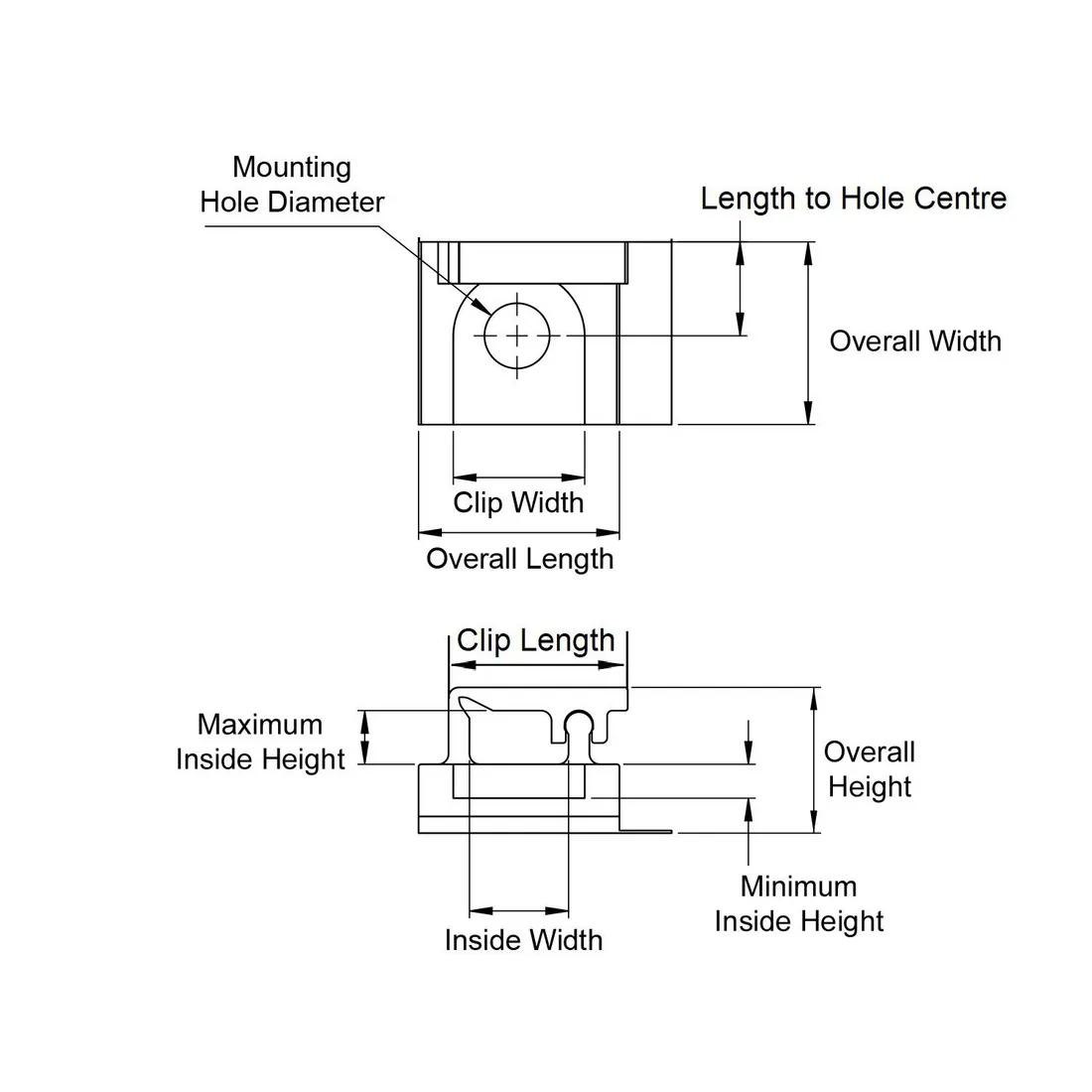

Item Code | Base Opening Height | Inside Height | Hole Diameter | Overall Width | Mounting Hole Diameter | Base Height | Mounting Hole Center Distance | Maximum Operating Temperature | Mount Type | Inside Width | Material Flammability Standard | Saddle Type | Color | Base Opening Width | Minimum Operating Temperature | Material | Base End to Arm End Length | Thread Size | Overall Length | UL/CSA Description | Length to Hole Center | Base Width | Minimum Inside Diameter | Minimum Inside Diameter | Base Length | Overall Height | Clip Height | Clip Width | Type | Adhesive Material | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MWSLTB-1-19 | 1.7 mm | 2.6 | 0.125 in | 8.9 | 3.2 mm | 2.6 mm | 4.6 mm | 110 °C | Adhesive | 4.8 | UL94 V-0 | Micro | Natural | 6.4 mm | -40 °C | Nylon 6/6 | 10.2 mm | #4;M3 | 9.8 mm | UL E70062 | 4.6 mm | 8.9 | 1.7 mm | 2.6 mm | 9.8 | 7.1 | 7.1 mm | 6.4 mm | Locking Top | - | - | |
MWSLTB-1-19A-RT | 1.7 mm | 2.6 | 0.125 in | 8.9 mm | 3.2 mm | 2.6 mm | 4.6 mm | 110 °C | SR-30XX Rivet, Screw | 4.8 | UL94 V-0 | Micro | Natural | 6.4 mm | -40 °C | Nylon 6/6 | 10.2 mm | - | 9.8 mm | UL E70062 | 4.6 mm | 8.9 | 1.7 mm | 2.6 mm | 9.8 | 7.1 | 7.1 mm | 6.4 mm | Locking Top | Acrylic | #4, M3 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
MWSLTB-1-19
Base Opening Height
1.7 mm
Inside Height
2.6
Hole Diameter
0.125 in
Overall Width
8.9
MWSLTB-1-19A-RT
Base Opening Height
1.7 mm
Inside Height
2.6
Hole Diameter
0.125 in
Overall Width
8.9 mm
