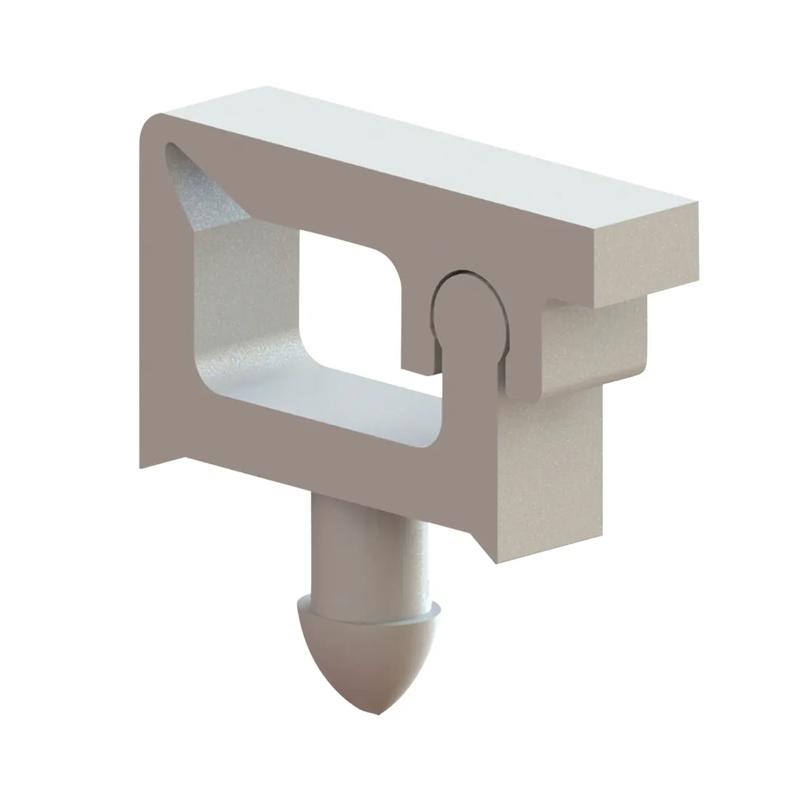

SRMWSLT - Micro Wire Saddles
Showing 1-4 of 4
Per page:1-4 of 4

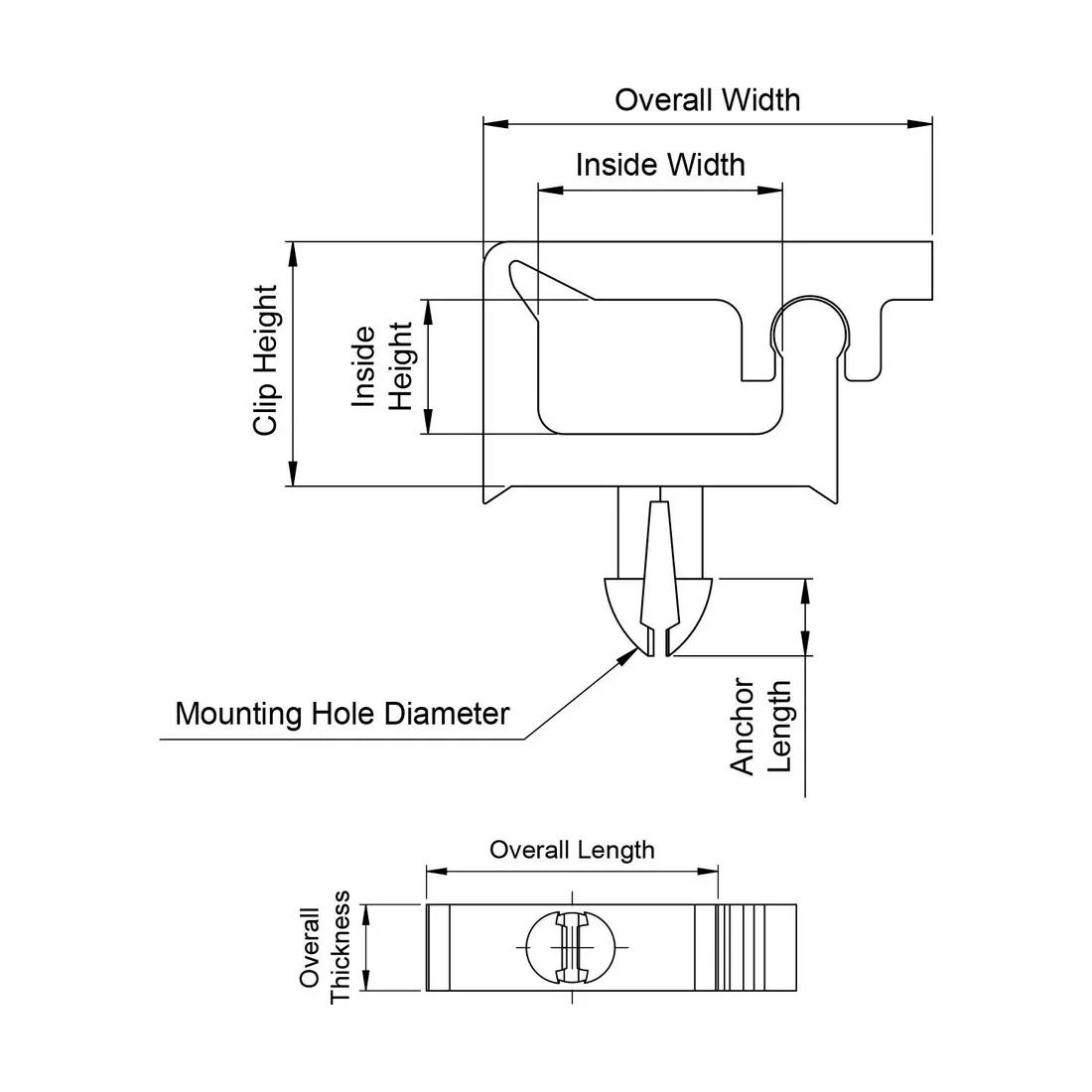

Item Code | Color | Inside Height | Overall Width | Overall Thickness | Maximum Panel Thickness | Mounting Hole Diameter | Fitting Style | Clip Depth | Locking Head Height | Panel Thickness | Clip Height | Maximum Operating Temperature | Compatible Hole Diameter | Inside Width | Material Flammability Standard | Saddle Type | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Anchor Length | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MWSLT-1-01 | Natural | 2.6 | 8.7 | 2.0 mm | 1.6 | 1.7 mm | Push-In | 2.0 mm | 1.5 mm | 1.6 mm | 4.8 mm | 85 °C | 0.067 in | 4.8 | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 6.9 mm | UL E70062 | 1.5 mm | 8.7 mm | Locking Top | |
MWSLT-1-19 | Natural | 2.6 | 8.7 | 2.0 mm | 1.6 | 1.7 mm | Push-In | 2.0 mm | 1.5 mm | 1.6 mm | 4.8 mm | 110 °C | 0.067 in | 4.8 | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 6.9 mm | UL E70062 | 1.5 mm | 8.7 mm | Locking Top | |
MWSLT1-1-19 | Natural | 2.6 | 8.7 | 2.0 mm | 2.4 | 1.7 mm | Push-In | 2.0 mm | 1.5 mm | 2.4 mm | 4.8 mm | 110 °C | 0.067 in | 4.8 | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 6.9 mm | UL E70062 | 1.5 mm | 8.7 mm | Locking Top | |
MWSLT1-1-01 | Natural | 2.6 | 8.7 | 2.0 mm | 2.4 | 1.7 mm | Push-In | 2.0 mm | 1.5 mm | 2.4 mm | 4.8 mm | 85 °C | 0.067 in | 4.8 | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 6.9 mm | UL E70062 | 1.5 mm | 8.7 mm | Locking Top |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
MWSLT-1-01
Color
Natural
Inside Height
2.6
Overall Width
8.7
Overall Thickness
2.0 mm
MWSLT-1-19
Color
Natural
Inside Height
2.6
Overall Width
8.7
Overall Thickness
2.0 mm
MWSLT1-1-19
Color
Natural
Inside Height
2.6
Overall Width
8.7
Overall Thickness
2.0 mm
MWSLT1-1-01
Color
Natural
Inside Height
2.6
Overall Width
8.7
Overall Thickness
2.0 mm
