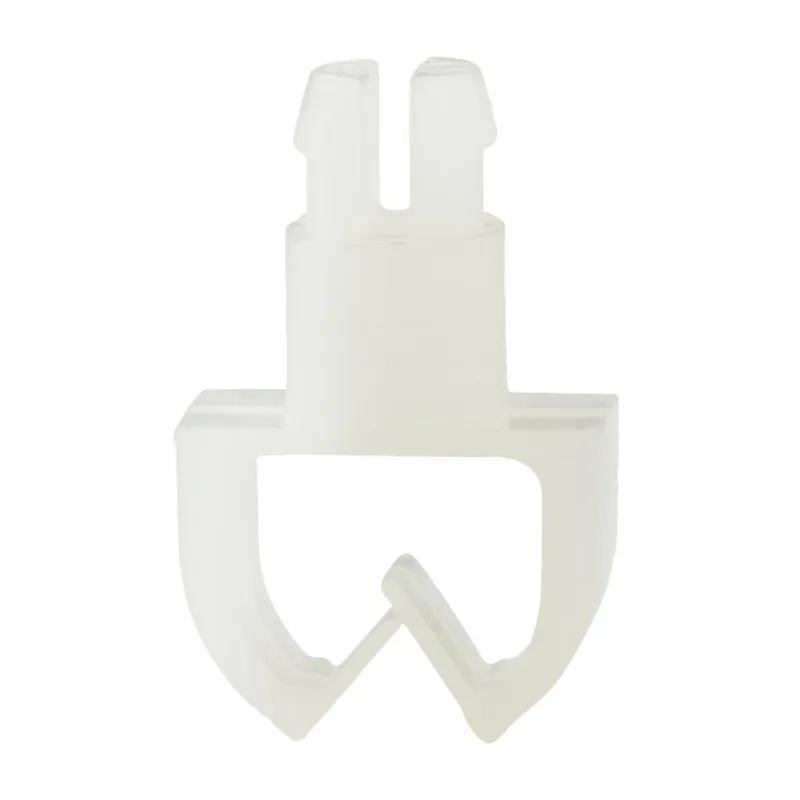

SRMWSELF - Standoff Micro Wire Saddles
Showing 1-8 of 8
Per page:1-8 of 8

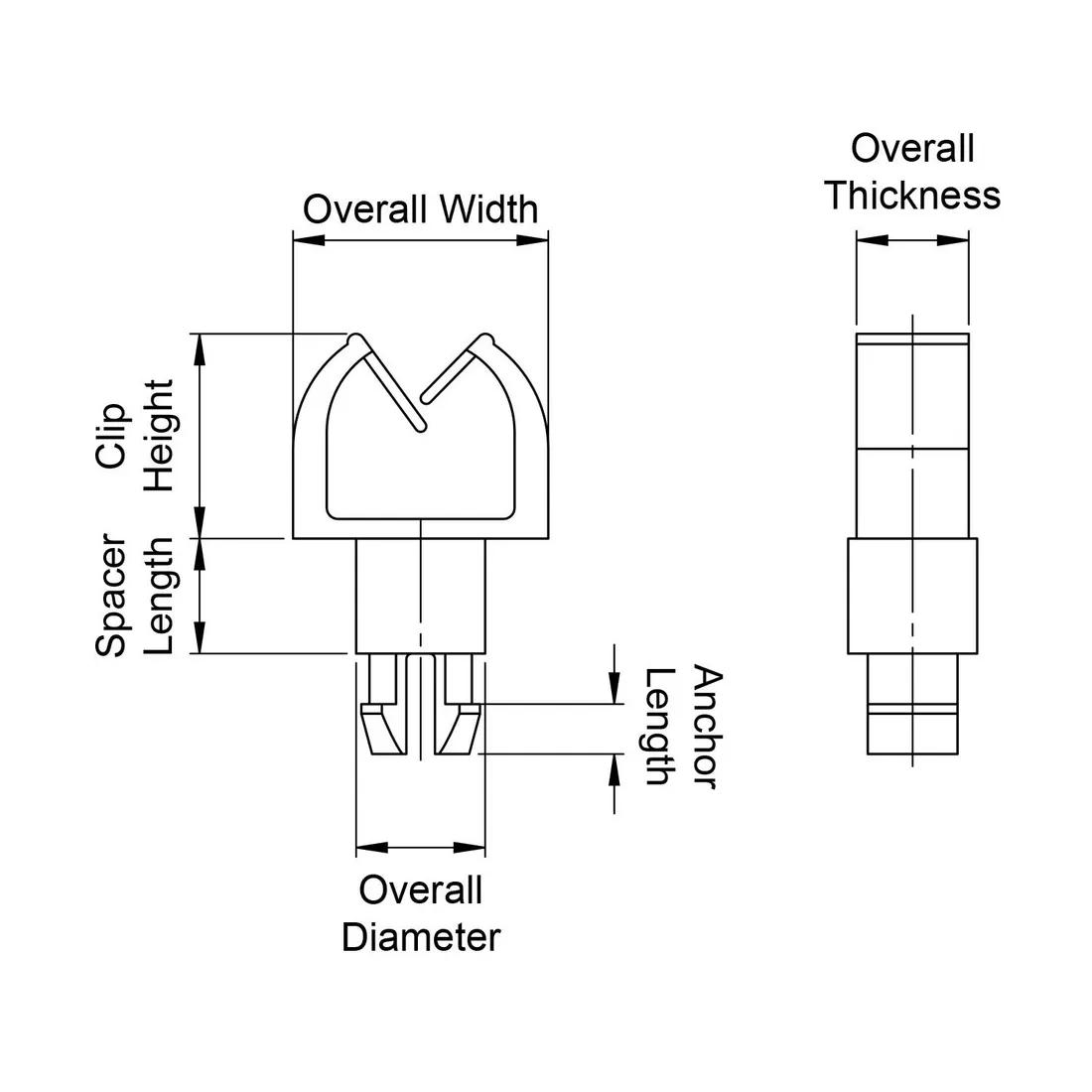

Item Code | Color | Inside Height | Overall Thickness | Maximum Panel Thickness | Mounting Hole Diameter | Fitting Style | Style | Locking Head Height | Panel Thickness | Clip Height | Maximum Operating Temperature | Compatible Hole Diameter | Inside Width | Material Flammability Standard | Saddle Type | Minimum Operating Temperature | Material | Overall Diameter | Overall Width | Spacer Length | UL/CSA Description | Anchor Length | Spacer Diameter | Clip Depth | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MWSELF-2-4.1-01 | Natural | 0.120 in | 4.0 mm | 2.0 | 3.8 mm | Push-In | 2 | 1.9 mm | 2.0 mm | 7.3 mm | 85 °C | 0.150 in | 0.260 in | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 4.1 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-1-4.1-01 | Natural | 0.120 in | 4.0 mm | 1.6 | 3.8 mm | Push-In | 2 | 1.9 mm | 1.6 mm | 7.3 mm | 85 °C | 0.150 in | 0.260 in | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 4.1 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-2-7.7-19 | Natural | 0.120 in | 4.0 mm | 2.0 | 3.8 mm | Push-In | 2 | 1.9 mm | 2.0 mm | 7.3 mm | 110 °C | 0.150 in | 0.260 in | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 7.7 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-1-7.7-01 | Natural | 0.120 in | 4.0 mm | 1.6 | 3.8 mm | Push-In | 2 | 1.9 mm | 1.6 mm | 7.3 mm | 85 °C | 0.150 in | 0.260 in | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 7.7 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-2-7.7-01 | Natural | 0.120 in | 4.0 mm | 2.0 | 3.8 mm | Push-In | 2 | 1.9 mm | 2.0 mm | 7.3 mm | 85 °C | 0.150 in | 0.260 in | UL94 V-2 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 7.7 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-2-4.1-19 | Natural | 0.120 in | 4.0 mm | 2.0 | 3.8 mm | Push-In | 2 | 1.9 mm | 2.0 mm | 7.3 mm | 110 °C | 0.150 in | 0.260 in | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 4.1 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-1-7.7-19 | Natural | 0.120 in | 4.0 mm | 1.6 | 3.8 mm | Push-In | 2 | 1.9 mm | 1.6 mm | 7.3 mm | 110 °C | 0.150 in | 0.260 in | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 7.7 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off | |
MWSELF-1-4.1-19 | Natural | 0.120 in | 4.0 mm | 1.6 | 3.8 mm | Push-In | 2 | 1.9 mm | 1.6 mm | 7.3 mm | 110 °C | 0.150 in | 0.260 in | UL94 V-0 | Micro | -40 °C | Nylon 6/6 | 4.6 mm | 9.1 | 4.1 | UL E70062 | 1.9 mm | 4.6 mm | 4.0 mm | 9.1 mm | Stand-Off |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
MWSELF-2-4.1-01
Color
Natural
Inside Height
0.120 in
Overall Thickness
4.0 mm
Maximum Panel Thickness
2.0
MWSELF-1-4.1-01
Color
Natural
Inside Height
0.120 in
Overall Thickness
4.0 mm
Maximum Panel Thickness
1.6
MWSELF-2-7.7-19
Color
Natural
Inside Height
0.120 in
Overall Thickness
4.0 mm
Maximum Panel Thickness
2.0
MWSELF-1-7.7-01
Color
Natural
Inside Height
0.120 in
Overall Thickness
4.0 mm
Maximum Panel Thickness
1.6
Per page:
1–5 of 9
