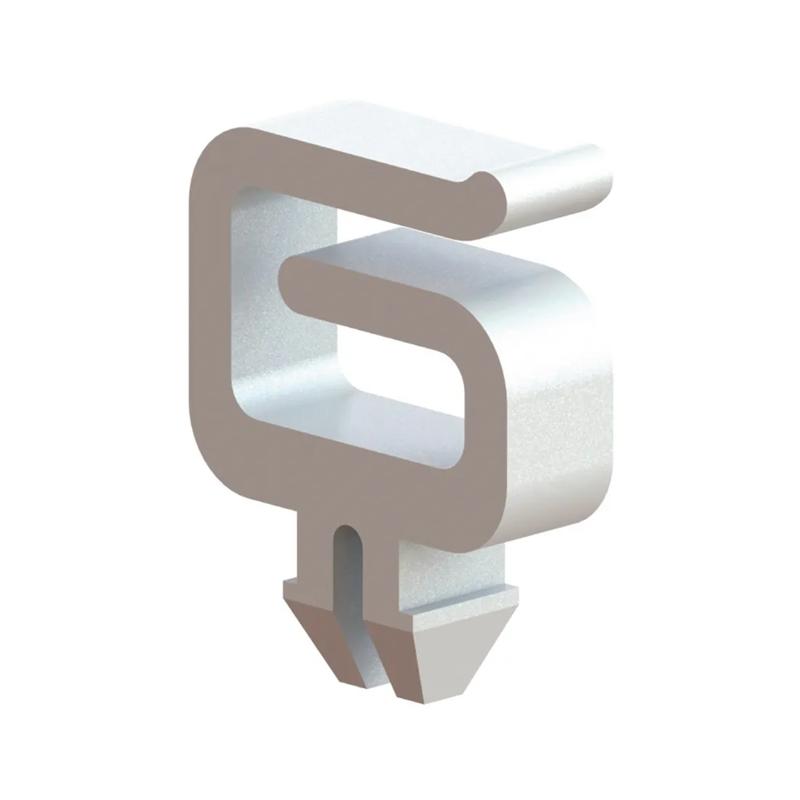

SRMOFNSP - Mini Optical Fiber Wire Saddles
Showing 1-2 of 2
Per page:1-2 of 2

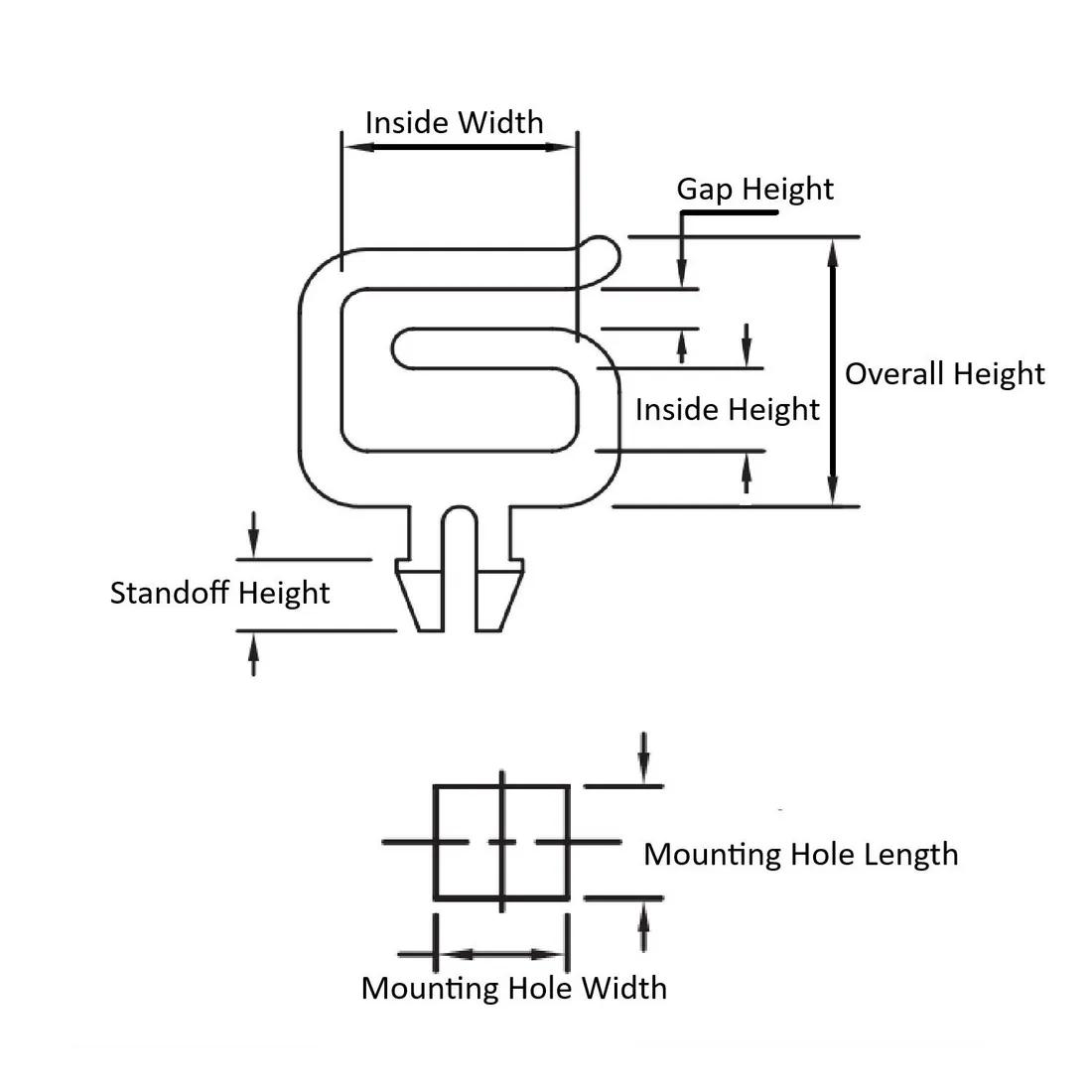

Item Code | Gap Height | Inside Height | Material | Depth | Mounting Hole Width | Style | Panel Thickness | Overall Height | Mounting Hole Length | Inside Width | Material Flammability Standard | Color | Standoff Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MOFNSP-2-01 | 0.050 in | 0.100 in | Nylon 6/6 | 0.125 in | 0.125 in | 2 | 0.093 in | 0.340 in | 0.135 in | 0.280 in | UL94 V-2 | Natural | 0.090 in | |
MOFNSP-2-19 | 0.050 in | 0.100 in | Nylon 6/6 | 0.125 in | 0.125 in | 2 | 0.093 in | 0.340 in | 0.135 in | 0.280 in | UL94 V-0 | Natural | 0.090 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
MOFNSP-2-01
Gap Height
0.050 in
Inside Height
0.100 in
Material
Nylon 6/6
Depth
0.125 in
MOFNSP-2-19
Gap Height
0.050 in
Inside Height
0.100 in
Material
Nylon 6/6
Depth
0.125 in
