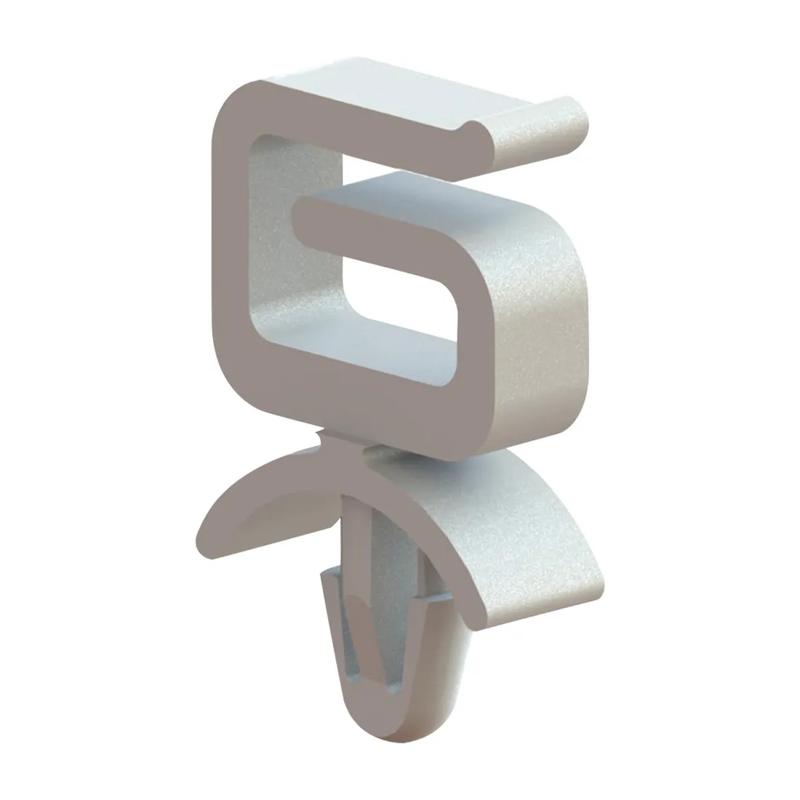

SRMOFNSA - Mini Optical Fiber Wire Saddles
Showing 1-2 of 2
Per page:1-2 of 2

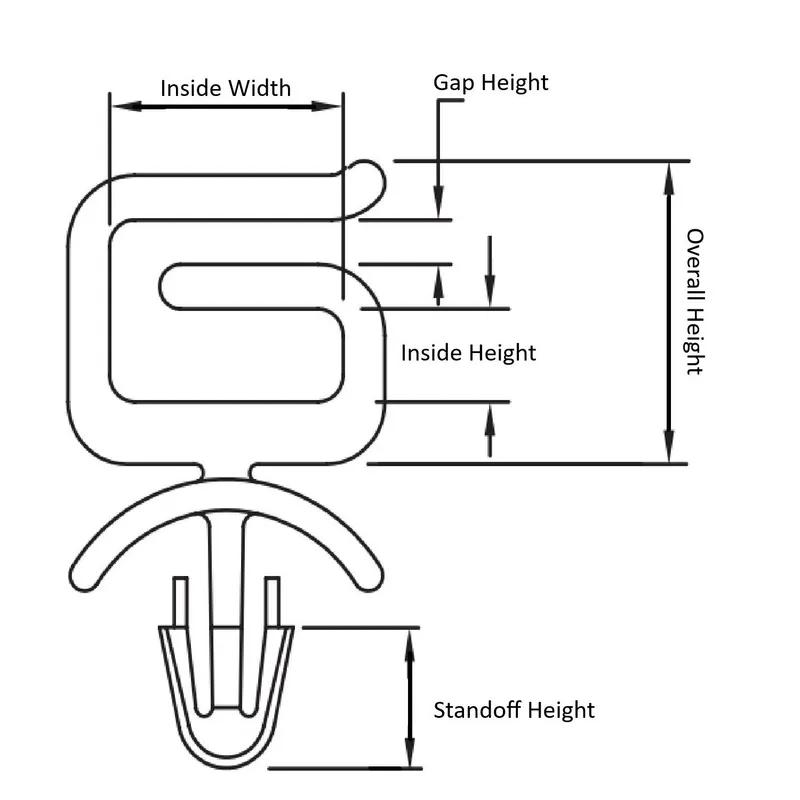

Item Code | Gap Height | Inside Height | Material | Depth | Mounting Hole Diameter | Style | Panel Thickness | Overall Height | Inside Width | Material Flammability Standard | Color | Standoff Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MOFNSA-2-19 | 0.050 in | 0.100 in | Nylon 6/6 | 0.125 in | 0.125 in | 1 | 0.093 in | 0.340 in | 0.280 in | UL94 V-0 | Natural | 0.160 in | |
MOFNSA-2-01 | 0.050 in | 0.100 in | Nylon 6/6 | 0.125 in | 0.125 in | 1 | 0.093 in | 0.340 in | 0.280 in | UL94 V-2 | Natural | 0.160 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
MOFNSA-2-19
Gap Height
0.050 in
Inside Height
0.100 in
Material
Nylon 6/6
Depth
0.125 in
MOFNSA-2-01
Gap Height
0.050 in
Inside Height
0.100 in
Material
Nylon 6/6
Depth
0.125 in
