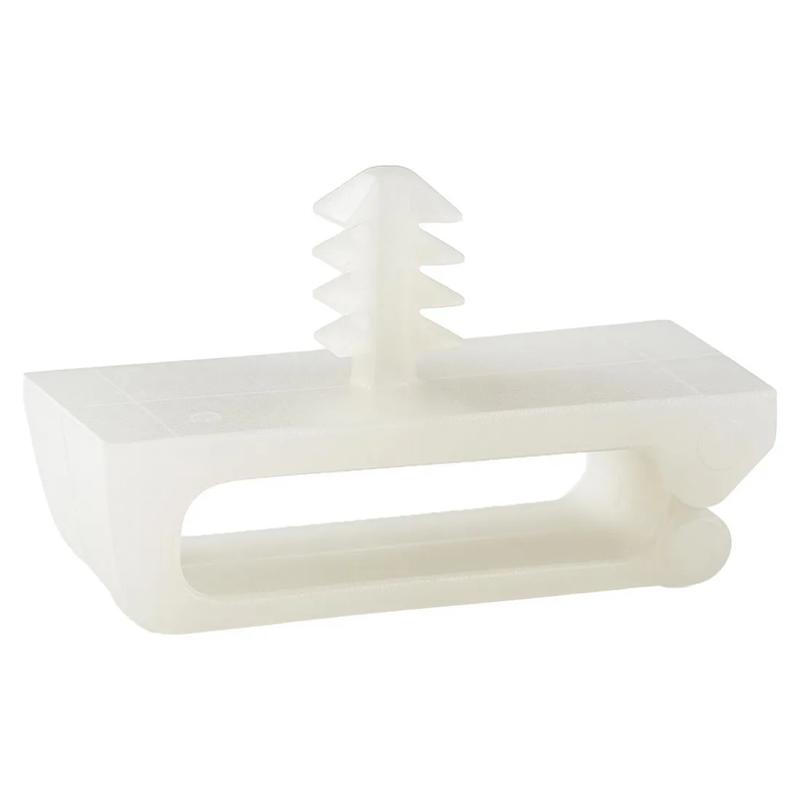

SRMBHWSSE - Micro Wire Saddles
Showing 1-2 of 2
Per page:1-2 of 2

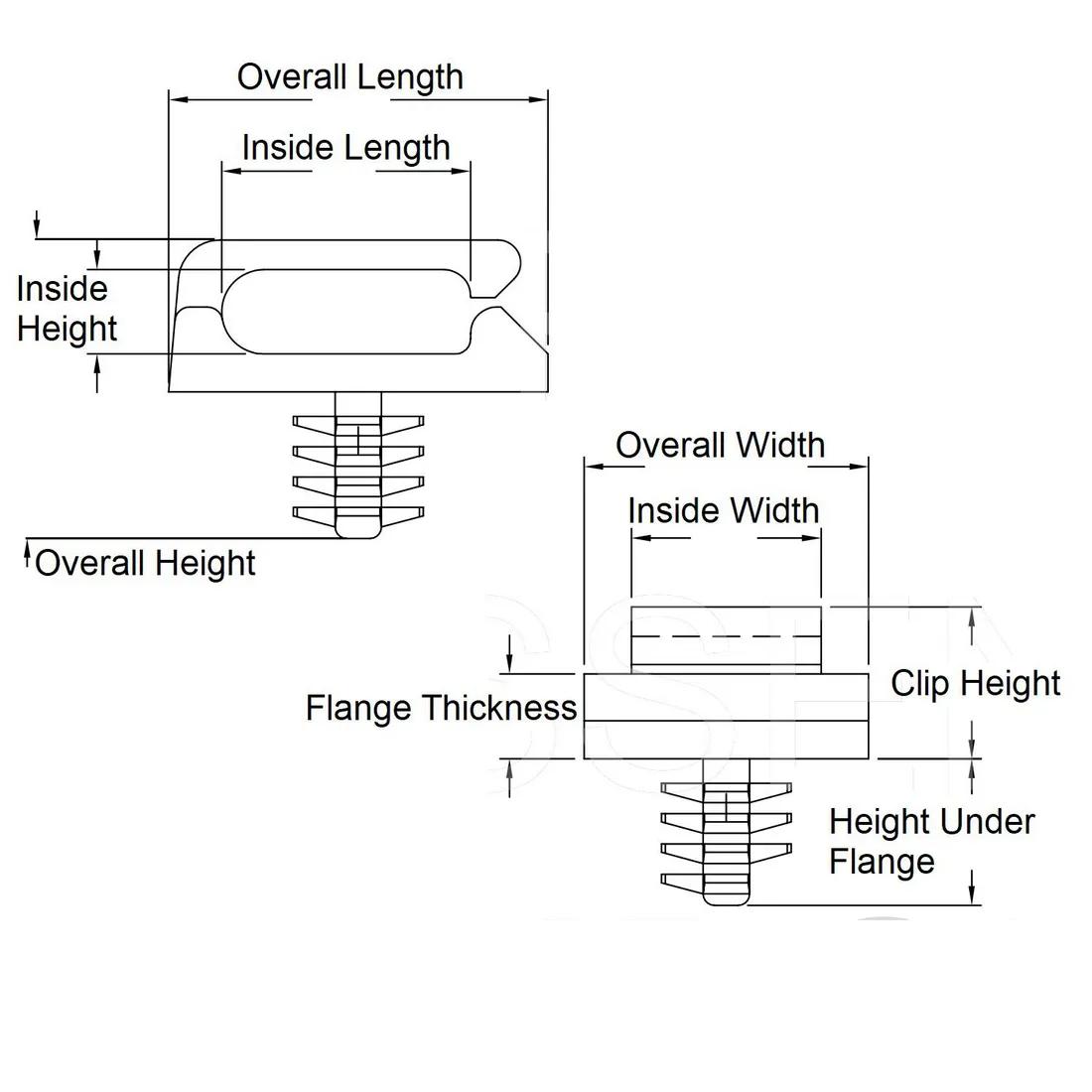

Item Code | Inside Height | Overall Width | Maximum Panel Thickness | Mounting Hole Diameter | Fitting Style | Clip Depth | Flange Thickness | Height Under Flange | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Saddle Type | Color | Standoff Height | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Inside Length | Inside Depth | Minimum Panel Thickness | Overall Height | Clip Height | Compatible Hole Diameter | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBHWSSE-1-01 | 2.8 | 9.5 | 4.1 | 4.0 mm | Push-In | 9.5 mm | 2.8 mm | 5.0 mm | 85 °C | 12.7 mm | 8.3 | UL94 V-2 | Micro | Natural | 5.0 mm | -40 °C | Nylon 6/6 | 12.7 mm | UL E70062 | 8.3 mm | 6.4 mm | 1.0 | 10.1 mm | 5.1 mm | 0.156 in | Blind Hole | |
MBHWSSE1-1-01 | 2.8 | 9.5 | 4.1 | 4.0 mm | Push-In | 9.5 mm | 2.8 mm | 5.0 mm | 85 °C | 17.0 mm | 12.5 | UL94 V-2 | Micro | Natural | 5.0 mm | -40 °C | Nylon 6/6 | 17.0 mm | UL E70062 | 12.5 mm | 8.0 mm | 1.0 | 10.1 mm | 5.1 mm | 0.156 in | Blind Hole |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
MBHWSSE-1-01
Inside Height
2.8
Overall Width
9.5
Maximum Panel Thickness
4.1
Mounting Hole Diameter
4.0 mm
MBHWSSE1-1-01
Inside Height
2.8
Overall Width
9.5
Maximum Panel Thickness
4.1
Mounting Hole Diameter
4.0 mm
