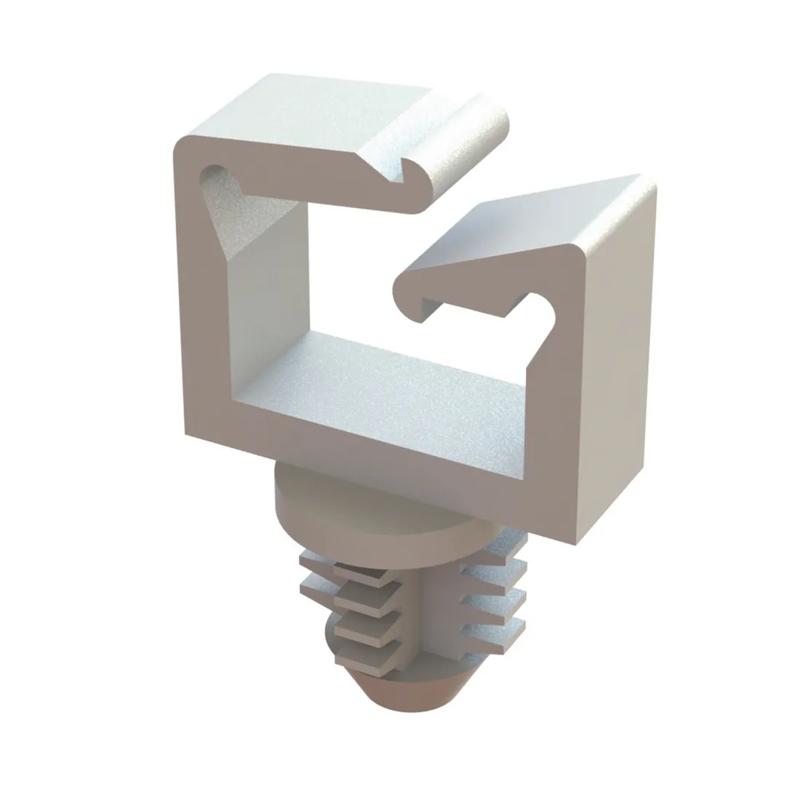

SRLWSBH - Locking Wire/Cable Saddles
Showing 1-4 of 4
Per page:1-4 of 4

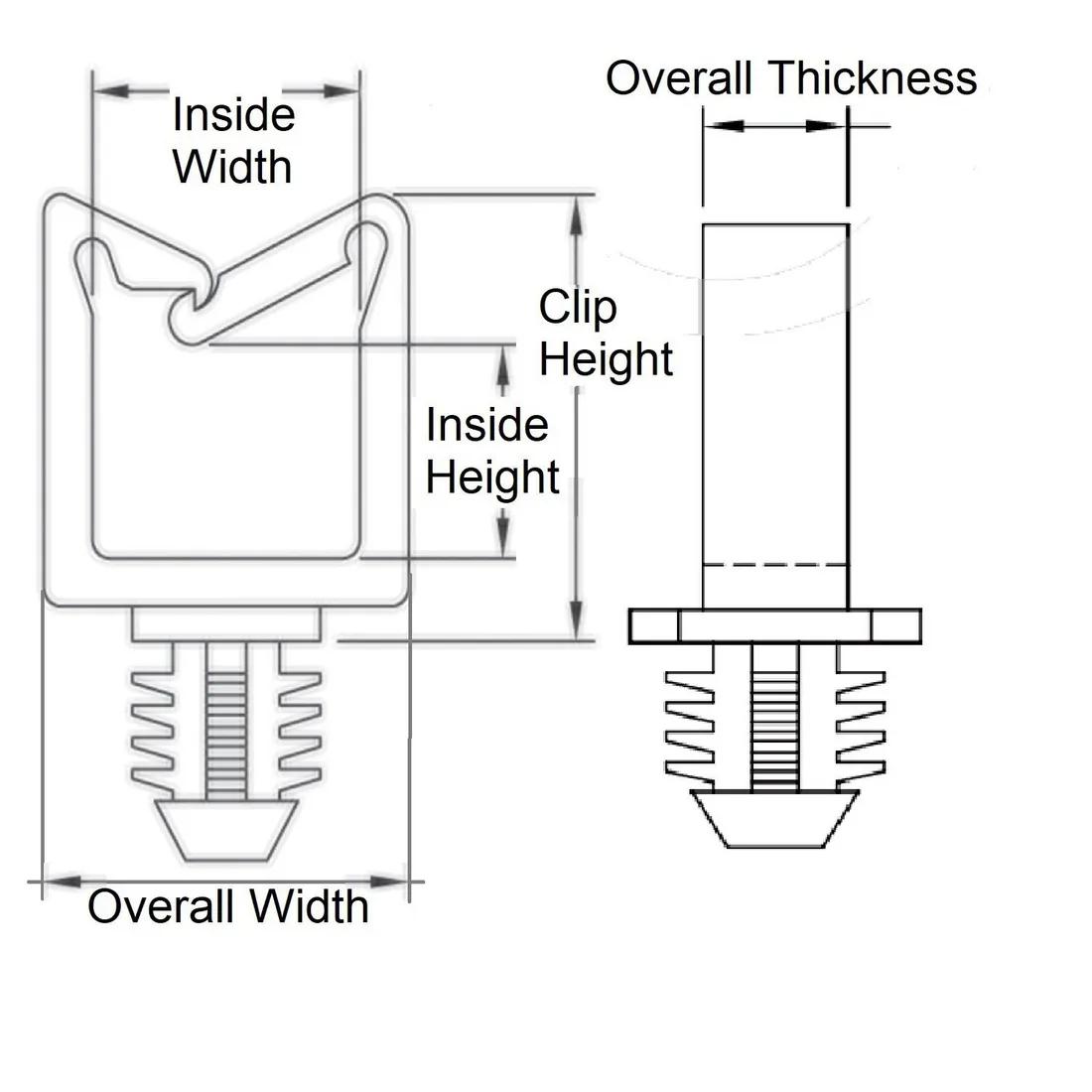

Item Code | Color | Maximum Hole Diameter | Overall Width | UL/CSA Description | Overall Thickness | Maximum Panel Thickness | Mounting Hole Diameter | Panel Thickness | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Wall Thickness | Inside Height | Minimum Operating Temperature | Material | Compatible Hole Diameter | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LWSBH-1-01 | Natural | 7.9 mm | 13.3 mm | UL E70062 | 2.2 mm | 6.4 mm | 7.9 mm | 6.4 mm | 13.2 mm | 85 °C | 15.5 mm | 11.1 | UL94 V-2 | 2.2 mm | 3.6 | -40 °C | Nylon 6/6 | 0.312 in | Blind Hole | |
LWSBH-2-01 | Natural | 7.9 mm | 13.3 mm | UL E70062 | 2.2 mm | 6.4 mm | 7.9 mm | 6.4 mm | 18.0 mm | 85 °C | 15.5 mm | 11.1 | UL94 V-2 | 2.2 mm | 8.4 | -40 °C | Nylon 6/6 | 0.312 in | Blind Hole | |
LWSBH-3-01 | Natural | 7.9 mm | 13.3 mm | UL E70062 | 2.2 mm | 6.4 mm | 7.9 mm | 6.4 mm | 27.2 mm | 85 °C | 15.5 mm | 11.1 | UL94 V-2 | 2.2 mm | 17.5 | -40 °C | Nylon 6/6 | 0.312 in | Blind Hole | |
LWSBH-4-01 | Natural | 7.9 mm | 13.3 mm | UL E70062 | 2.2 mm | 6.4 mm | 7.9 mm | 6.4 mm | 35.0 mm | 85 °C | 15.5 mm | 11.1 | UL94 V-2 | 2.2 mm | 25.4 | -40 °C | Nylon 6/6 | 0.312 in | Blind Hole |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
LWSBH-1-01
Color
Natural
Maximum Hole Diameter
7.9 mm
Overall Width
13.3 mm
UL/CSA Description
UL E70062
LWSBH-2-01
Color
Natural
Maximum Hole Diameter
7.9 mm
Overall Width
13.3 mm
UL/CSA Description
UL E70062
LWSBH-3-01
Color
Natural
Maximum Hole Diameter
7.9 mm
Overall Width
13.3 mm
UL/CSA Description
UL E70062
LWSBH-4-01
Color
Natural
Maximum Hole Diameter
7.9 mm
Overall Width
13.3 mm
UL/CSA Description
UL E70062
