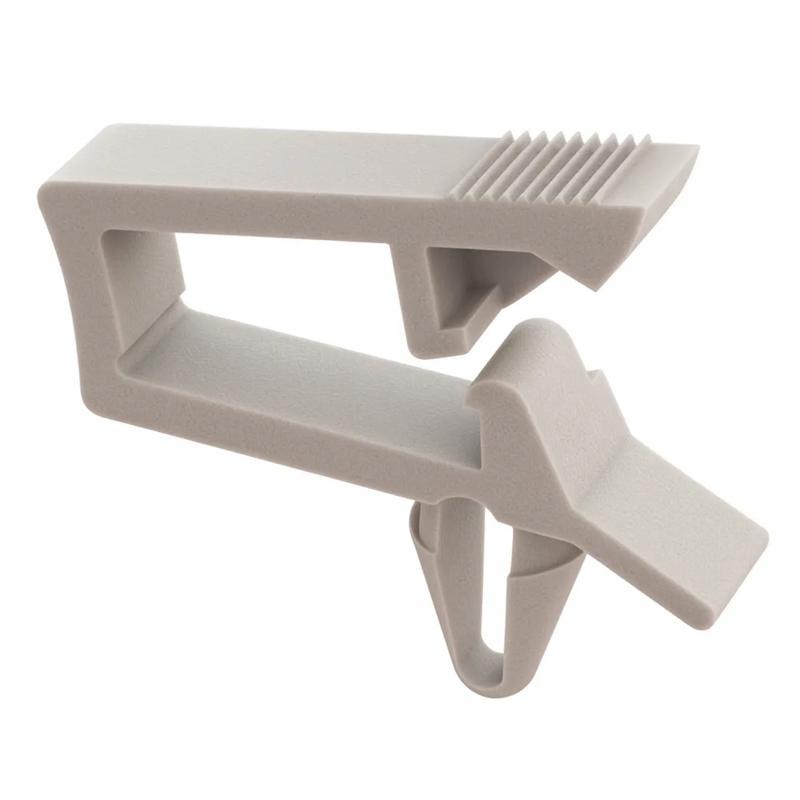

SRLWS-SE - Wire Saddles - Side Entry
Showing 1-2 of 2
Per page:1-2 of 2

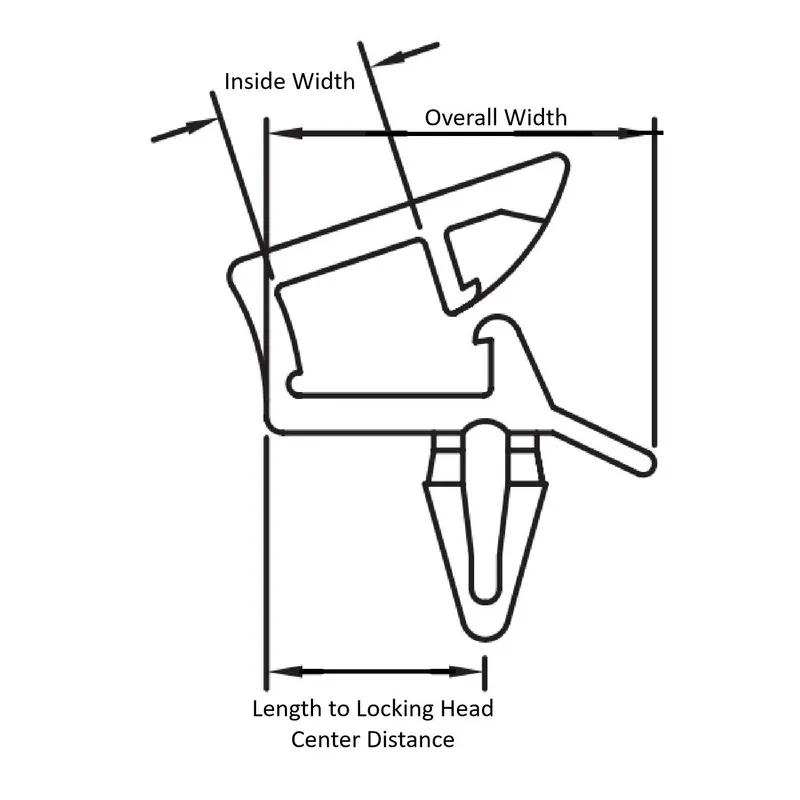

Item Code | Length to Locking Head Center Distance | Color | Material | Overall Width | UL/CSA Description | Maximum Panel Thickness | Mounting Hole Diameter | Minimum Panel Thickness | Inside Width | Material Flammability Standard | Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LWS-SE2-1-01 | 0.380 in | Natural | Nylon 6/6 | 0.670 in | UL E71558 | 0.063 in | 0.187 in | 0.020 in | 0.270 in | UL94 V-2 | - | |
LWS-SE2-2-01 | 0.530 in | Natural | Nylon 6/6 | 0.800 in | UL E71558 | 0.063 in | 0.187 in | 0.020 in | 0.400 in | UL94 V-2 | 8 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
LWS-SE2-1-01
Length to Locking Head Center Distance
0.380 in
Color
Natural
Material
Nylon 6/6
Overall Width
0.670 in
LWS-SE2-2-01
Length to Locking Head Center Distance
0.530 in
Color
Natural
Material
Nylon 6/6
Overall Width
0.800 in
