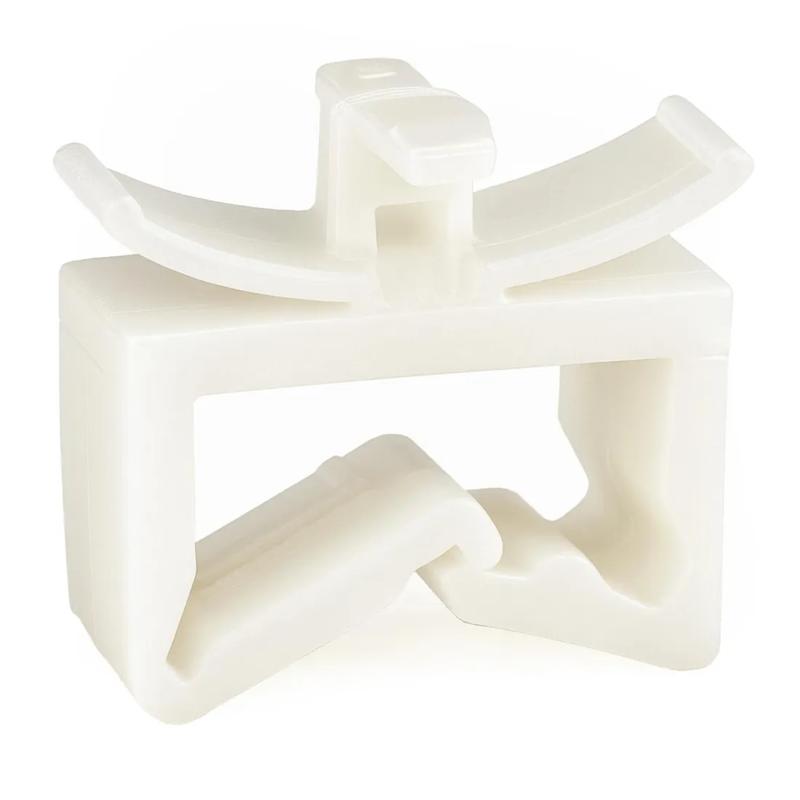

SRLWS-9 - Quarter-Turn Wire Saddles
Showing 1-4 of 4
Per page:1-4 of 4

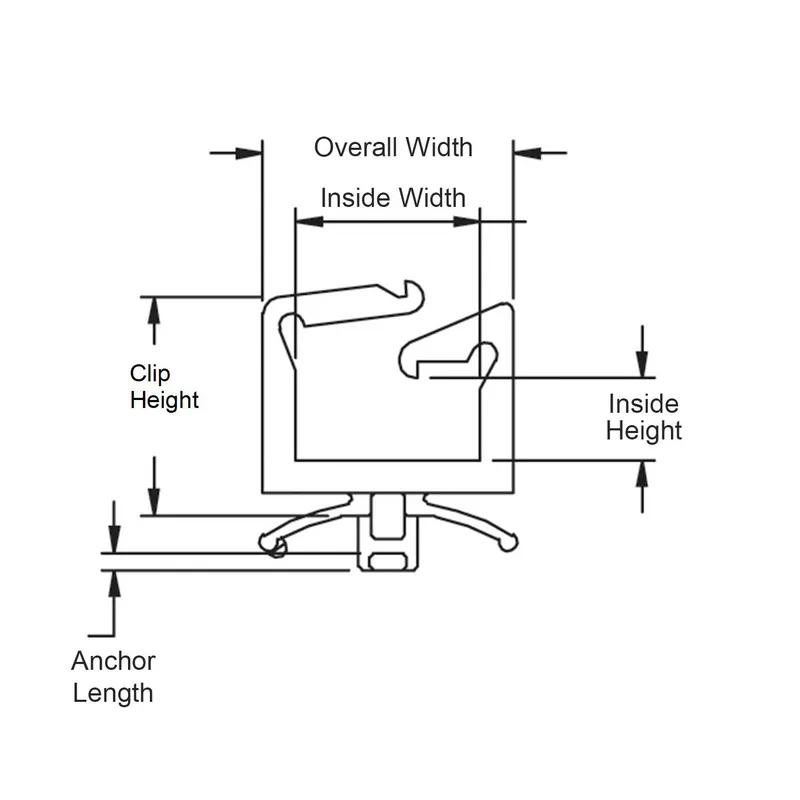

Item Code | Color | Inside Height | Overall Width | Maximum Panel Thickness | Mounting Hole Diameter | Mounting Hole Width | Clip Height | Maximum Operating Temperature | Mounting Hole Length | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | UL/CSA Description | Anchor Length | Length to Hole Center | Base Width | Minimum Panel Thickness | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LWS-9-4-01 | Natural | 26.8 | 15.3 | 0.063 in | 1.8 mm | 4.0 mm, 2.7 mm | 35.1 mm | 85 °C | 7.2 mm | 11.3 | UL94 V-2 | -40 °C | Nylon 6/6 | UL E70062 | 1.0 mm | 7.3 mm | 15.8 mm | 0.031 in | 15.3 mm | Quarter-Turn | |
LWS-9-3-01 | Natural | 19.0 | 15.3 | 0.063 in | 1.8 mm | 4.0 mm, 2.7 mm | 27.2 mm | 85 °C | 7.2 mm | 11.3 | UL94 V-2 | -40 °C | Nylon 6/6 | UL E70062 | 1.0 mm | 7.3 mm | 15.8 mm | 0.031 in | 15.3 mm | Quarter-Turn | |
LWS-9-1-01 | Natural | 3.8 | 15.3 | 0.063 in | 1.8 mm | 4.0 mm, 2.7 mm | 13.0 mm | 85 °C | 7.2 mm | 11.3 | UL94 V-2 | -40 °C | Nylon 6/6 | UL E70062 | 1.0 mm | 7.3 mm | 15.8 mm | 0.031 in | 15.3 mm | Quarter-Turn | |
LWS-9-2-01 | Natural | 9.8 | 15.3 | 0.063 in | 1.8 mm | 4.0 mm, 2.7 mm | 18.0 mm | 85 °C | 7.2 mm | 11.3 | UL94 V-2 | -40 °C | Nylon 6/6 | UL E70062 | 1.0 mm | 7.3 mm | 15.8 mm | 0.031 in | 15.3 mm | Quarter-Turn |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
LWS-9-4-01
Color
Natural
Inside Height
26.8
Overall Width
15.3
Maximum Panel Thickness
0.063 in
LWS-9-3-01
Color
Natural
Inside Height
19.0
Overall Width
15.3
Maximum Panel Thickness
0.063 in
LWS-9-1-01
Color
Natural
Inside Height
3.8
Overall Width
15.3
Maximum Panel Thickness
0.063 in
LWS-9-2-01
Color
Natural
Inside Height
9.8
Overall Width
15.3
Maximum Panel Thickness
0.063 in
