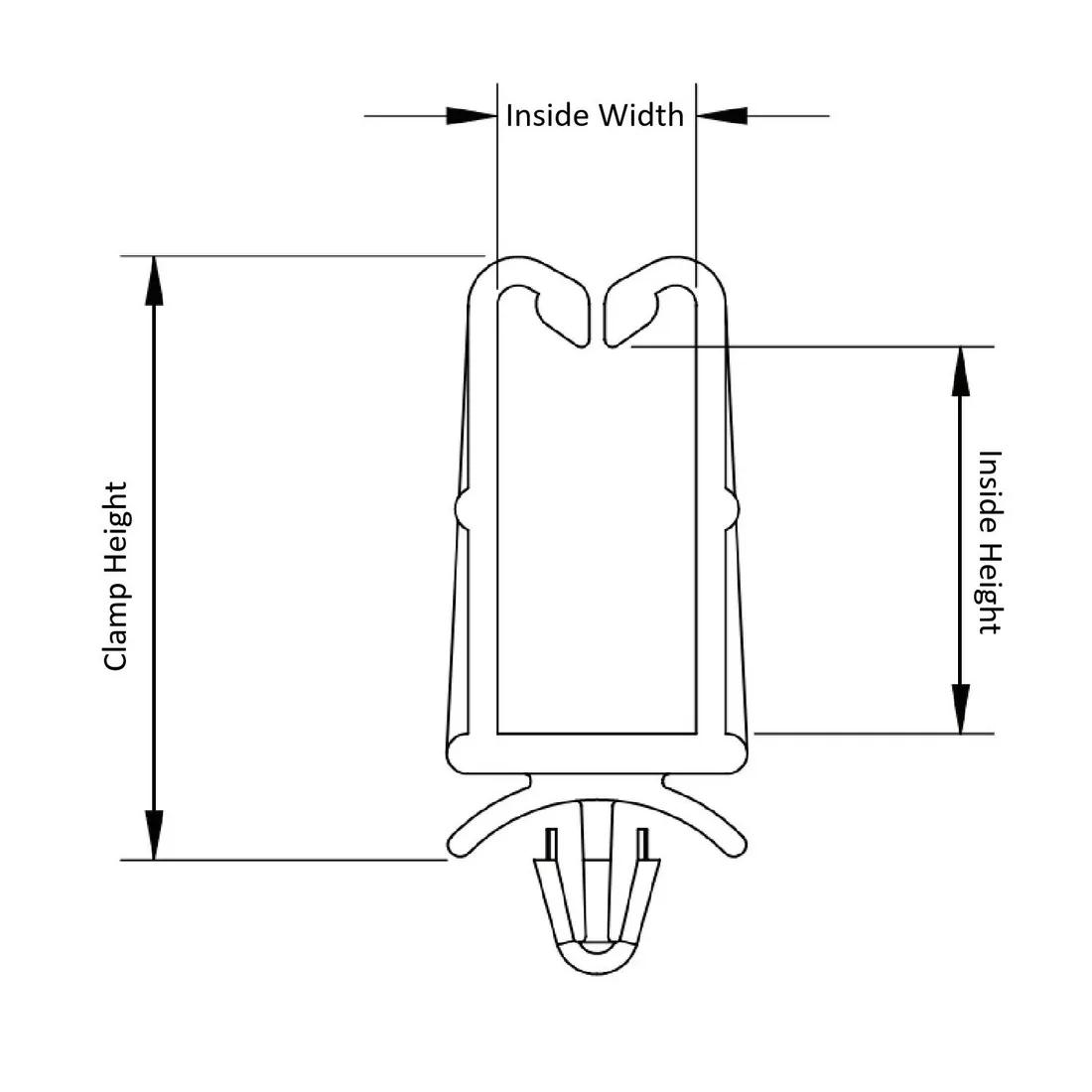

Item Code | Color | Inside Height | Material | Maximum Panel Thickness | Mounting Hole Diameter | Clamp Height | Inside Width | Material Flammability Standard | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
22WHB375075 | Natural | 0.750 in | Nylon 6/6 | 0.093 in | 0.187 in | 1.172 in | 0.375 in | UL94 V-2 | 0.030 in | |
22WHB375050B | Black | 0.500 in | Nylon 6/6 | 0.093 in | 0.187 in | 0.900 in | 0.375 in | UL94 V-2 | 0.030 in | |
22WHB375050 | Natural | 0.500 in | Nylon 6/6 | 0.093 in | 0.187 in | 0.900 in | 0.375 in | UL94 V-2 | 0.030 in | |
22WHB500075 | Natural | 0.750 in | Nylon 6/6 | 0.093 in | 0.187 in | 1.200 in | 0.500 in | UL94 V-2 | 0.030 in | |
22WHB500100 | Natural | 1.000 in | Nylon 6/6 | 0.093 in | 0.187 in | 1.425 in | 0.500 in | UL94 V-2 | 0.030 in |
Color
Natural
Inside Height
0.750 in
Material
Nylon 6/6
Maximum Panel Thickness
0.093 in
Color
Black
Inside Height
0.500 in
Material
Nylon 6/6
Maximum Panel Thickness
0.093 in
Color
Natural
Inside Height
0.500 in
Material
Nylon 6/6
Maximum Panel Thickness
0.093 in
Color
Natural
Inside Height
0.750 in
Material
Nylon 6/6
Maximum Panel Thickness
0.093 in
