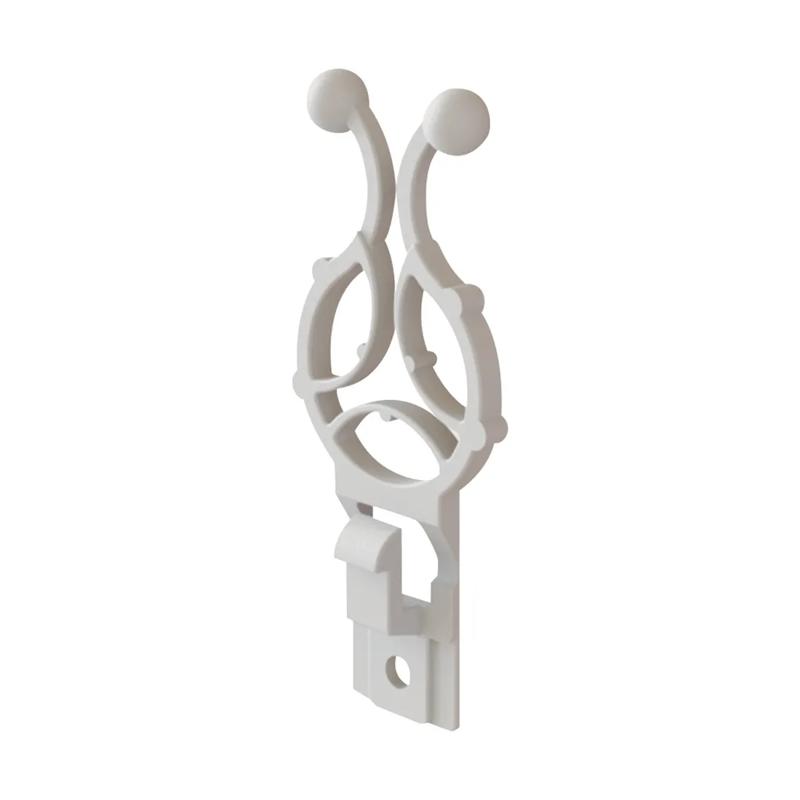

SRWTLH - Webbed Hinged Twist Locks
Showing 1-3 of 3
Per page:1-3 of 3

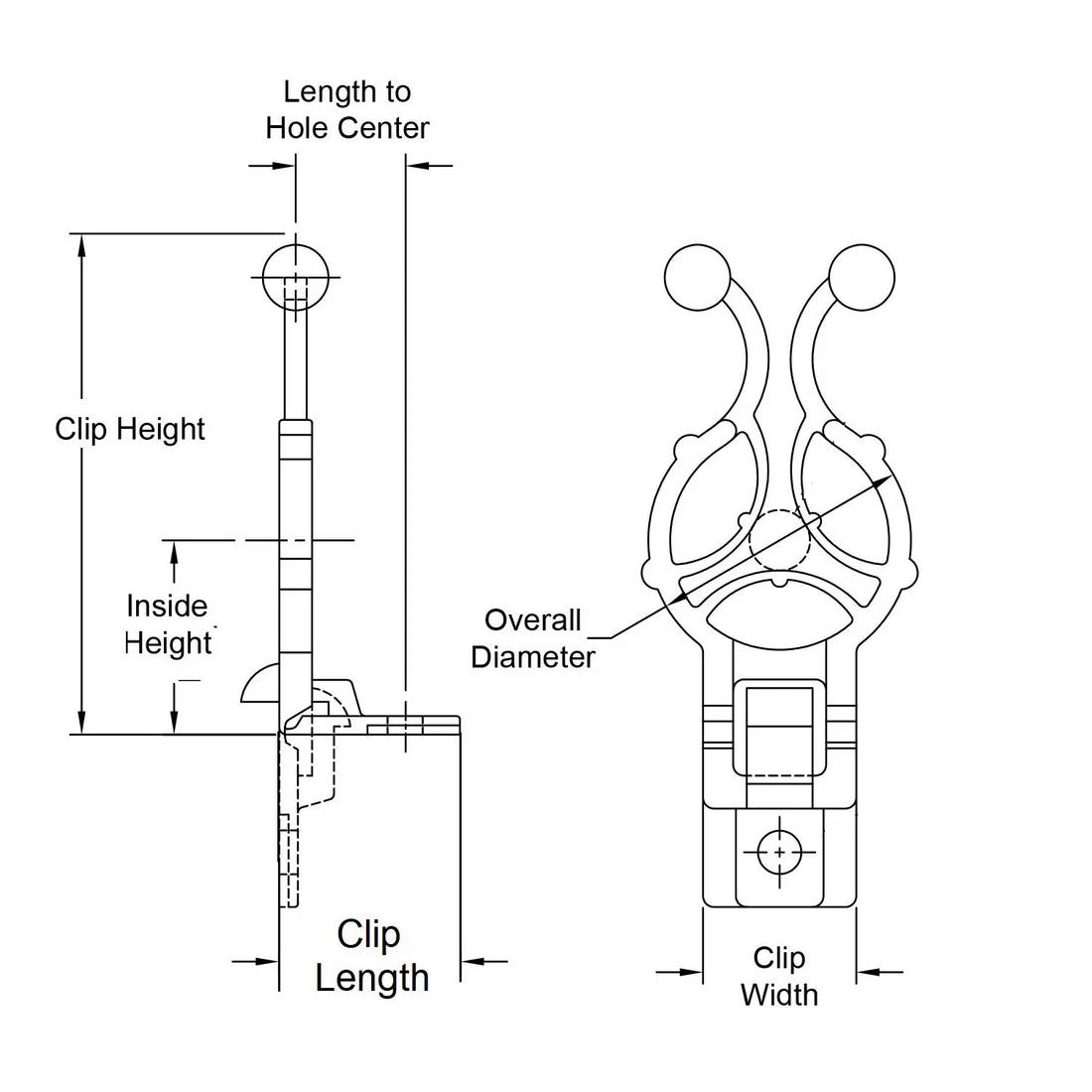

Item Code | Maximum Cable Bundle Diameter | Color | Minimum Cable Bundle Diameter | Mounting Hole Diameter | Clip Height | Clip Width | Material Flammability Standard | Mounting Method | Thread Size | Material | Length to Hole Center | Base Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WTLH90300-M4-01 | 12.2 mm | Natural | 3.6 mm | 4.3 mm | 45.0 mm | 14.0 mm | UL94 V-2 | Screw | #8, M4 | Nylon 6/6 | 10.0 mm | 0.550 in | |
WTLH90-300-4-01 | 12.2 mm | Natural | 3.6 mm | 3.3 mm | 45.0 mm | 14.0 mm | UL94 V-2 | Screw | #4, M3 | Nylon 6/6 | 10.0 mm | 0.550 in | |
WTLH90-300-6-01 | 12.2 mm | Natural | 3.6 mm | 3.8 mm | 45.0 mm | 14.0 mm | UL94 V-2 | Screw | #6, M3.5 | Nylon 6/6 | 10.0 mm | 0.550 in |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
WTLH90300-M4-01
Maximum Cable Bundle Diameter
12.2 mm
Color
Natural
Minimum Cable Bundle Diameter
3.6 mm
Mounting Hole Diameter
4.3 mm
WTLH90-300-4-01
Maximum Cable Bundle Diameter
12.2 mm
Color
Natural
Minimum Cable Bundle Diameter
3.6 mm
Mounting Hole Diameter
3.3 mm
WTLH90-300-6-01
Maximum Cable Bundle Diameter
12.2 mm
Color
Natural
Minimum Cable Bundle Diameter
3.6 mm
Mounting Hole Diameter
3.8 mm
