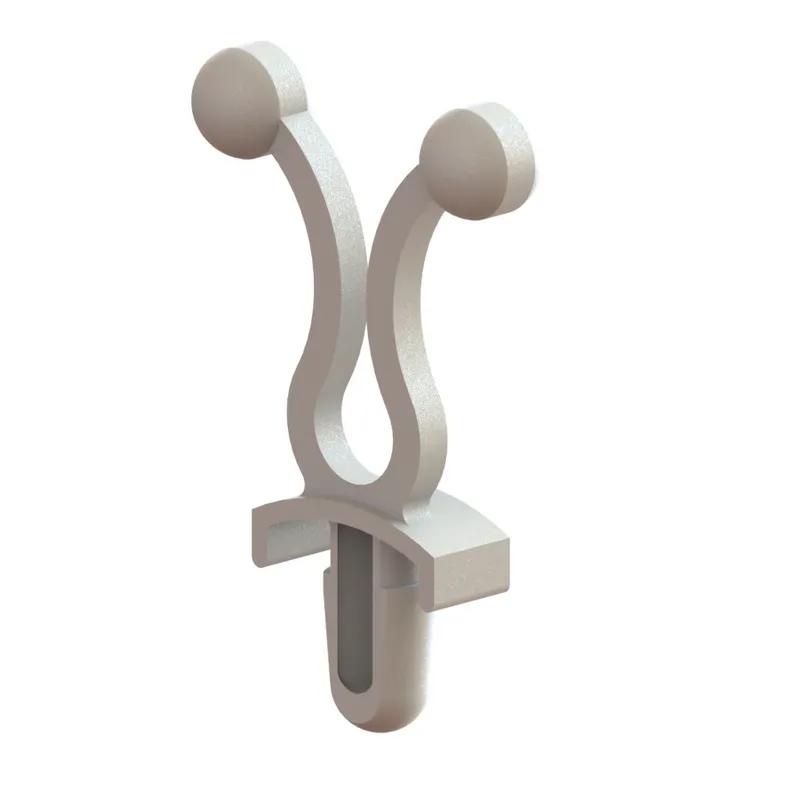

SRTLJ - Snap In Twist Locks
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Mounting Method | Maximum Cable Bundle Diameter | Color | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Spacer Length | Overall Length | UL/CSA Description | Minimum Panel Thickness | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLJ-200-01 | Push In | 6.4 mm | Natural | 2.0 mm | 0.470 in | 4.75 mm | 85 °C | -40 °C | Nylon 6/6 | 3.8 mm | 12.0 mm | 4.4 mm | 12.0 mm | UL E70062 | 0.8 mm | 28.5 mm | 21.5 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
TLJ-200-01
Mounting Method
Push In
Maximum Cable Bundle Diameter
6.4 mm
Color
Natural
Maximum Panel Thickness
2.0 mm
