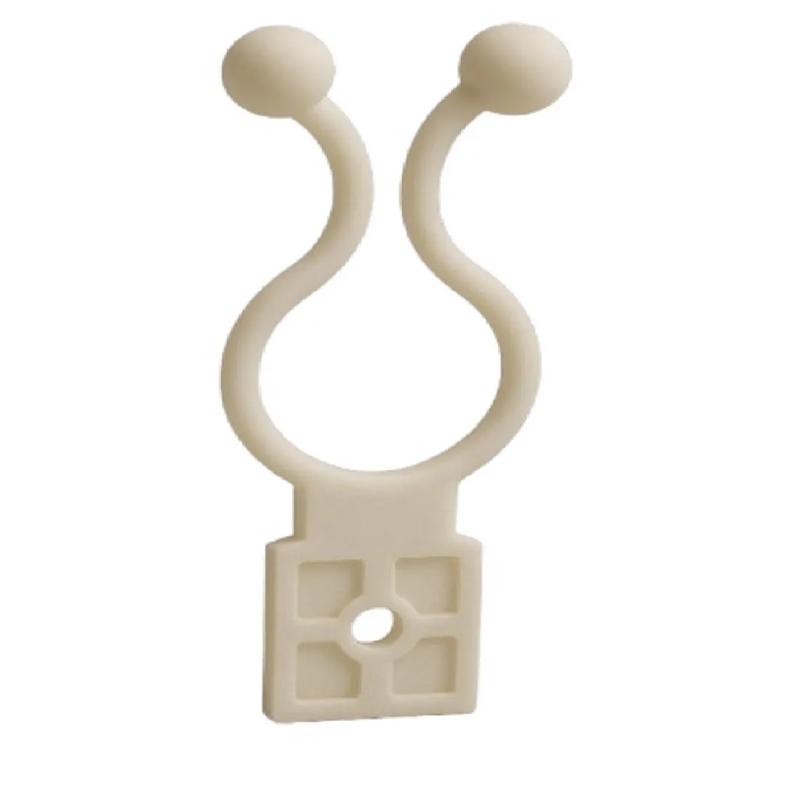

SRTLHE - Screw Mount Hinged Twist Locks
Showing 1-1 of 1
Per page:1-1 of 1

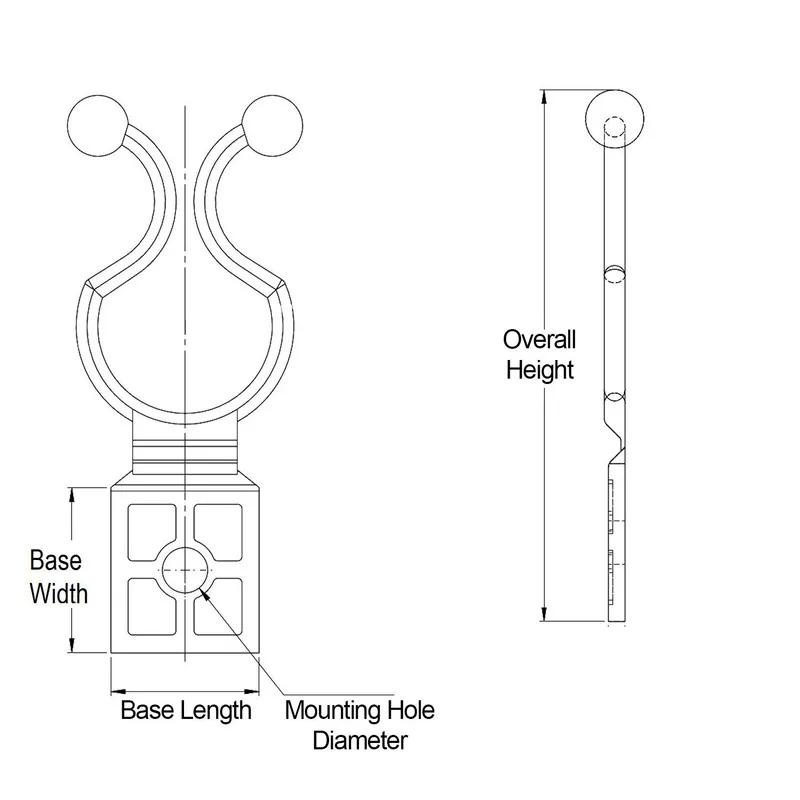

Item Code | Maximum Cable Bundle Diameter | Color | Minimum Cable Bundle Diameter | UL/CSA Description | Base Width | Mounting Hole Diameter | Base Height | Maximum Temperature | Material Flammability Standard | Mounting Method | Thread Size | Material | Base Length | Overall Height | Minimum Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLHE-1-750-01 | 20.3 mm | Natural | 17.8 mm | ULE70062 | 19.0 | 5.2 mm | 19.1 mm | 85 °C | UL94 V-2 | Screw | M4 | Nylon 6/6 | 17.0 | 64.0 mm | -40 °C |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
TLHE-1-750-01
Maximum Cable Bundle Diameter
20.3 mm
Color
Natural
Minimum Cable Bundle Diameter
17.8 mm
UL/CSA Description
ULE70062
