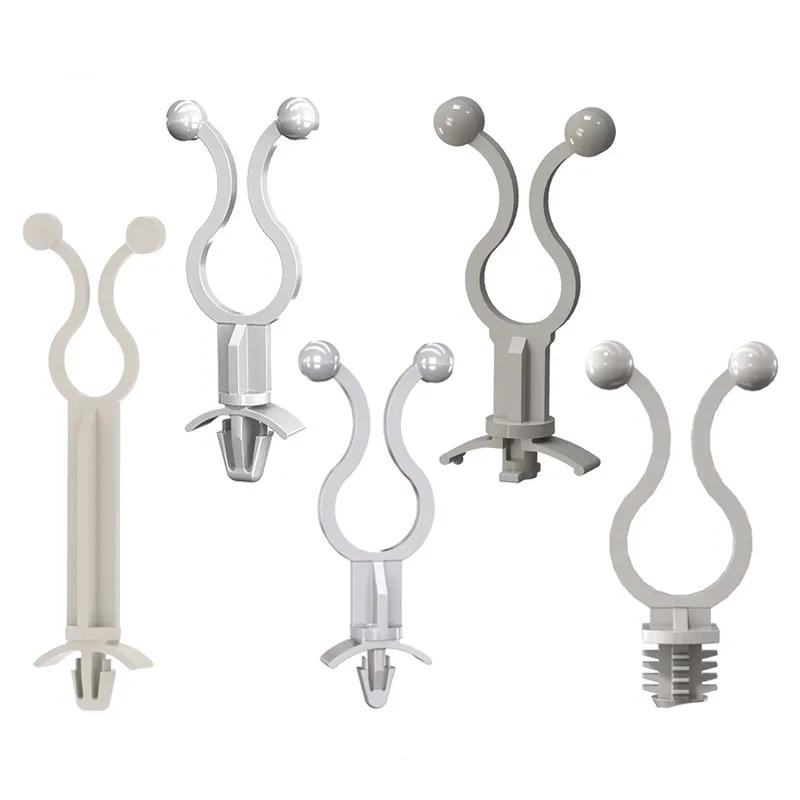

SRSTL - Standoff Twist Locks
Showing 1-10 of 30
Per page:1-10 of 30
Item Code | Maximum Cable Bundle Diameter | Color | UL/CSA Description | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Flange Thickness | Maximum Operating Temperature | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Spacer Length | Minimum Panel Thickness | Overall Height | Clip Height | Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STL-1-250-3-01 | 7.6 mm | Natural | UL E70062 | 2.0 mm | 0.560 in | 4.0 mm | 2.8 mm | 85 °C | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 5.1 mm | 14.3 mm | 4.8 | 0.8 mm | 32.3 mm | 19.1 mm | - | |
STL-1-450-8-01 | 12.7 mm | Natural | UL E70062 | 2.0 mm | 0.560 in | 4.0 mm | 2.8 mm | 85 °C | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 10.2 mm | 14.3 mm | 12.7 | 0.8 mm | 48.8 mm | 27.7 mm | - | |
STL-1-250-8-01 | 7.6 mm | Natural | UL E70062 | 2.0 mm | 0.560 in | 4.0 mm | 2.8 mm | 85 °C | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 5.1 mm | 14.3 mm | 12.7 | 0.8 mm | 40.2 mm | 19.1 mm | - | |
STL-3-750-8-01 | 20.3 mm | Natural | UL E70062 | - | - | 7.9 mm | - | 85 °C | UL94 V-2 | Fir Tree | -40 °C | Nylon 6/6 | 17.8 mm | - | 12.7 | 6.4 mm | 58.2 mm | 36.8 mm | 6.4 mm | |
STL-250-3-01 | 7.6 mm | Natural | UL E70062 | 2.0 mm | 0.560 in | 4.75 mm | 2.8 mm | 85 °C | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 5.1 mm | 14.3 mm | 4.8 | 0.8 mm | 32.3 mm | 19.1 mm | - | |
STL-1-450-3-01 | 12.7 mm | Natural | UL E70062 | 2.0 mm | 0.560 in | 4.0 mm | 2.8 mm | 85 °C | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 10.2 mm | 14.3 mm | 4.8 | 0.8 mm | 40.9 mm | 27.7 mm | - | |
STL-3-450-8-01 | 12.7 mm | Natural | UL E70062 | - | - | 7.9 mm | - | 85 °C | UL94 V-2 | Fir Tree | -40 °C | Nylon 6/6 | 10.2 mm | - | 12.7 | 6.4 mm | 49.1 mm | 27.7 mm | 6.4 mm | |
STL-250-8-01 | 7.6 mm | Natural | UL E70062 | 2.0 mm | 0.560 in | 4.75 mm | 2.8 mm | 85 °C | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 5.1 mm | 14.3 mm | 12.7 | 0.8 mm | 40.2 mm | 19.1 mm | - | |
STL-3-600-8-01 | 15.2 mm | Natural | UL E70062 | - | - | 7.9 mm | - | 85 °C | UL94 V-2 | Fir Tree | -40 °C | Nylon 6/6 | 12.7 mm | - | 12.7 | 6.4 mm | 53.9 mm | 32.5 mm | 6.4 mm |
Per page:
1-10 of 30
1–5 of 30 variants
Per page:
STL-1-250-3-01
Maximum Cable Bundle Diameter
7.6 mm
Color
Natural
UL/CSA Description
UL E70062
Maximum Panel Thickness
2.0 mm
STL-1-450-8-01
Maximum Cable Bundle Diameter
12.7 mm
Color
Natural
UL/CSA Description
UL E70062
Maximum Panel Thickness
2.0 mm
STL-1-250-8-01
Maximum Cable Bundle Diameter
7.6 mm
Color
Natural
UL/CSA Description
UL E70062
Maximum Panel Thickness
2.0 mm
STL-3-750-8-01
Maximum Cable Bundle Diameter
20.3 mm
Color
Natural
UL/CSA Description
UL E70062
Mounting Hole Diameter
7.9 mm
Per page:
1–5 of 31
