SRSKL - Side Entry & 45 Curly Locks
Showing 1-4 of 4
Per page:1-4 of 4

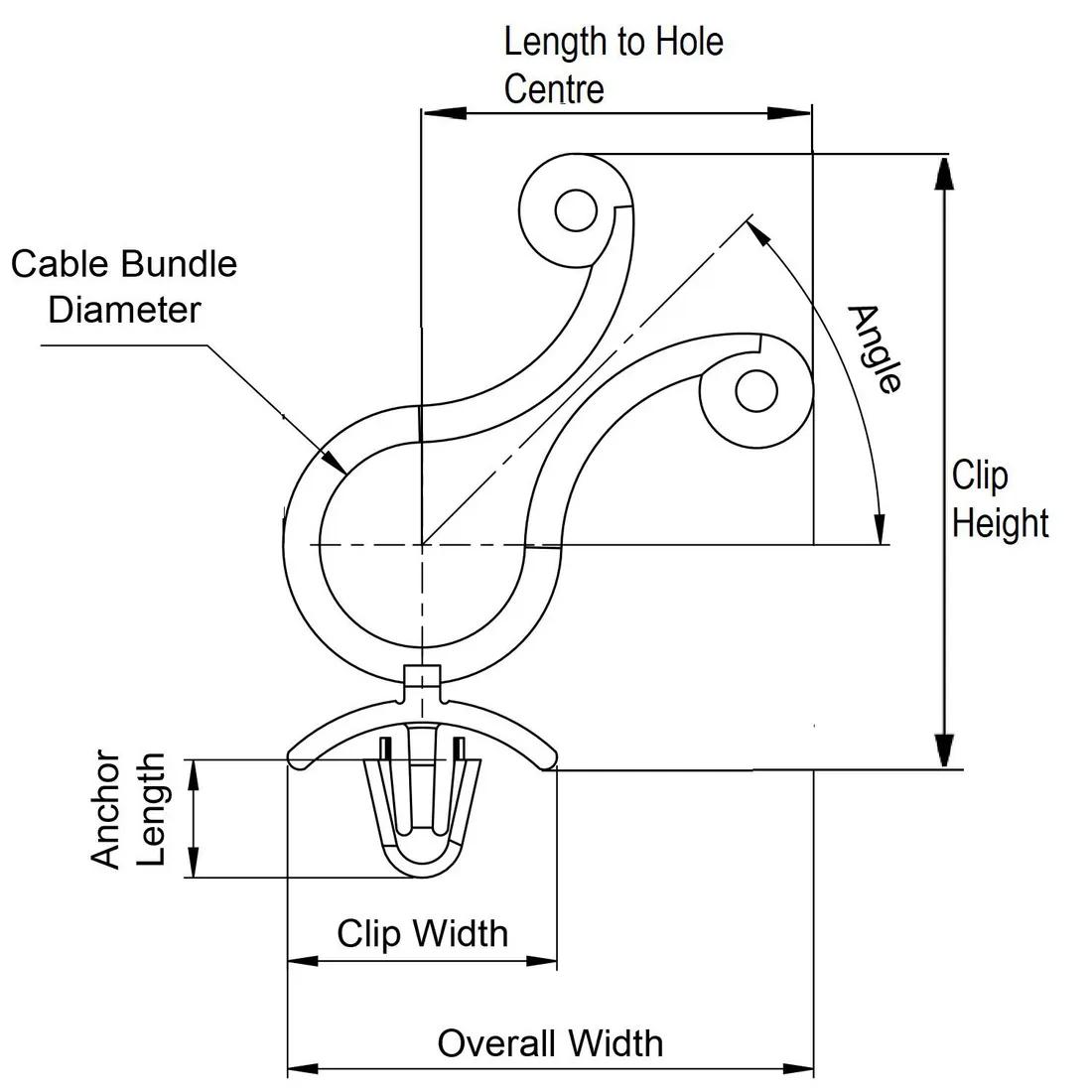

Item Code | Maximum Cable Bundle Diameter | Color | Material | UL/CSA Description | Maximum Panel Thickness | Mounting Hole Diameter | Panel Thickness | Clip Width | Material Flammability Standard | Mounting Method | Minimum Cable Bundle Diameter | Overall Width | Length to Hole Center | Angle | Base Width | Minimum Panel Thickness | Overall Height | Clip Height | Spacer Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SKL45-450 | 12.0 mm | Natural | Nylon 6/6 | UL E70062 | 2.0 mm | 4.75 mm | 1.6 mm | 15.0 mm | UL94 V-2 | Push In | 10.0 mm | 28.4 mm | 12.0 mm | 45 ° | 15.0 | 0.8 mm | 33.0 mm | 33.0 mm | - | |
SKL45-350 | 10.0 mm | Natural | Nylon 6/6 | UL E70062 | 2.0 mm | 4.75 mm | 1.6 mm | 15.0 mm | UL94 V-2 | Push In | 7.6 mm | 27.2 mm | 11.0 mm | 45 ° | 15.0 | 0.8 mm | 37.0 mm | 30.5 mm | - | |
SKLO-550-01 | 15.2 mm | Natural | Nylon 6/6 | UL E70062 | 2.0 mm | 4.75 mm | 1.6 mm | 33.3 mm | - | Push In | 12.7 mm | 33.3 mm | - | - | 14.3 | 0.8 mm | - | - | 9.5 | |
SKL45-250 | 6.35 mm | Natural | Nylon 6/6 | UL E70062 | 2.0 mm | 4.75 mm | 1.6 mm | 15.0 mm | UL94 V-2 | Push In | 3.8 mm | 24.9 mm | 8.5 mm | 45 ° | 15.0 | 0.8 mm | 33.2 mm | 26.7 mm | - |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
SKL45-450
Maximum Cable Bundle Diameter
12.0 mm
Color
Natural
Material
Nylon 6/6
UL/CSA Description
UL E70062
SKL45-350
Maximum Cable Bundle Diameter
10.0 mm
Color
Natural
Material
Nylon 6/6
UL/CSA Description
UL E70062
SKLO-550-01
Mounting Method
Push In
Maximum Cable Bundle Diameter
15.2 mm
Color
Natural
Material
Nylon 6/6
SKL45-250
Maximum Cable Bundle Diameter
6.35 mm
Color
Natural
Material
Nylon 6/6
UL/CSA Description
UL E70062
