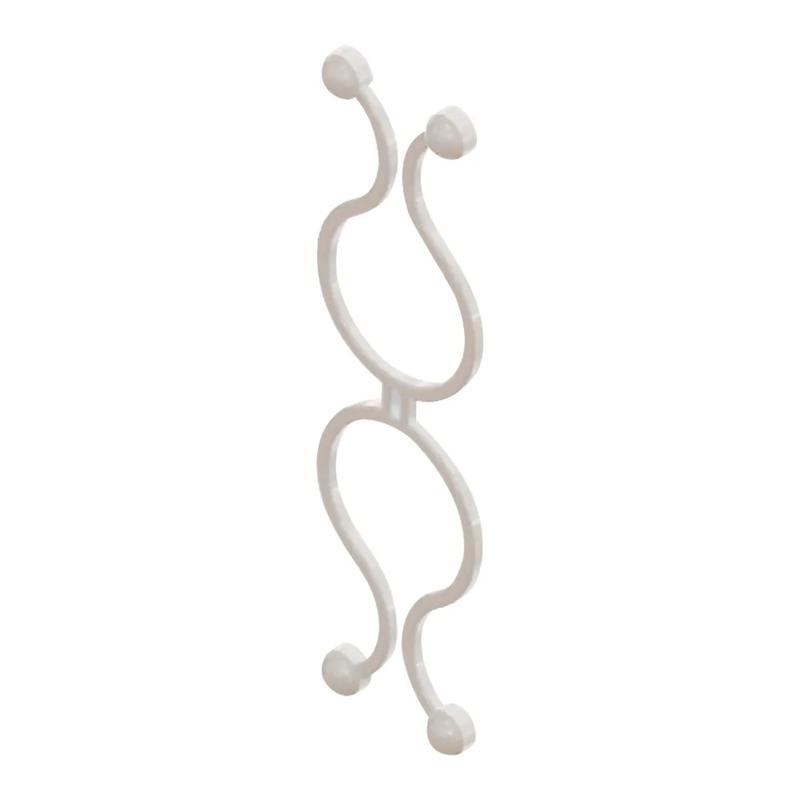

SRDTL - Dual Twist Locks
Showing 1-10 of 18
Per page:1-10 of 18

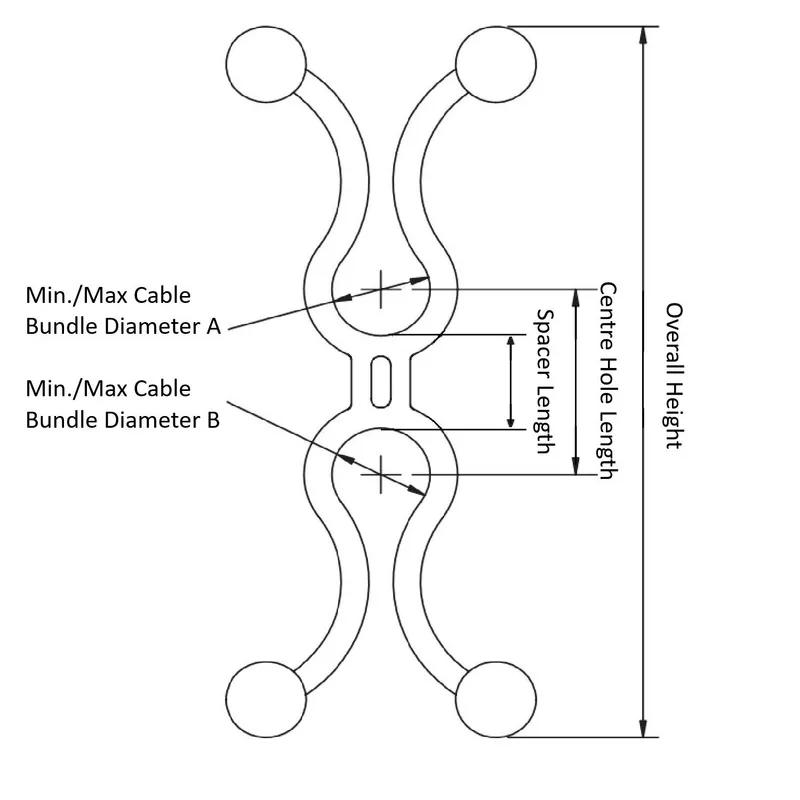

Item Code | Min. Cable Bundle Diameter A | Color | Material | Spacer Length | UL/CSA Description | Max. Cable Bundle Diameter A | Max. Cable Bundle Diameter B | Min. Cable Bundle Diameter B | Overall Height | Material Flammability Standard | Mounting Method | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
DTL2525-4-01 | 0.200 in | Natural | Nylon 6/6 | 0.250 in | UL E71558 | 0.300 in | 0.300 in | 0.200 in | 1.920 | UL94 V-2 | Not Mounted | |
DTL2525-12-01 | 0.200 in | Natural | Nylon 6/6 | 0.750 in | UL E71558 | 0.300 in | 0.300 in | 0.200 in | 2.420 | UL94 V-2 | Not Mounted | |
DTL2525-20-01 | 0.200 in | Natural | Nylon 6/6 | 1.250 in | UL E71558 | 0.300 in | 0.300 in | 0.200 in | 2.920 | UL94 V-2 | Not Mounted | |
DTL3535-12-01 | 0.300 in | Natural | Nylon 6/6 | 0.750 in | UL E71558 | 0.400 in | 0.400 in | 0.300 in | 2.680 | UL94 V-2 | Not Mounted | |
DTL3535-20-01 | 0.300 in | Natural | Nylon 6/6 | 1.250 in | UL E71558 | 0.400 in | 0.400 in | 0.300 in | 3.180 | UL94 V-2 | Not Mounted | |
DTL4545-12-01 | 0.400 in | Natural | Nylon 6/6 | 0.750 in | UL E71558 | 0.500 in | 0.500 in | 0.400 in | 2.680 | UL94 V-2 | Not Mounted | |
DTL3535-4-01 | 0.300 in | Natural | Nylon 6/6 | 0.250 in | UL E71558 | 0.400 in | 0.400 in | 0.300 in | 2.180 | UL94 V-2 | Not Mounted | |
DTL5555-12-01 | 0.500 in | Natural | Nylon 6/6 | 0.750 in | UL E71558 | 0.600 in | 0.600 in | 0.500 in | 2.680 | UL94 V-2 | Not Mounted | |
DTL4545-20-01 | 0.400 in | Natural | Nylon 6/6 | 1.250 in | UL E71558 | 0.500 in | 0.500 in | 0.400 in | 3.180 | UL94 V-2 | Not Mounted |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
DTL2525-4-01
Min. Cable Bundle Diameter A
0.200 in
Color
Natural
Material
Nylon 6/6
Spacer Length
0.250 in
DTL2525-12-01
Min. Cable Bundle Diameter A
0.200 in
Color
Natural
Material
Nylon 6/6
Spacer Length
0.750 in
DTL2525-20-01
Min. Cable Bundle Diameter A
0.200 in
Color
Natural
Material
Nylon 6/6
Spacer Length
1.250 in
DTL3535-12-01
Min. Cable Bundle Diameter A
0.300 in
Color
Natural
Material
Nylon 6/6
Spacer Length
0.750 in
Per page:
1–5 of 19
