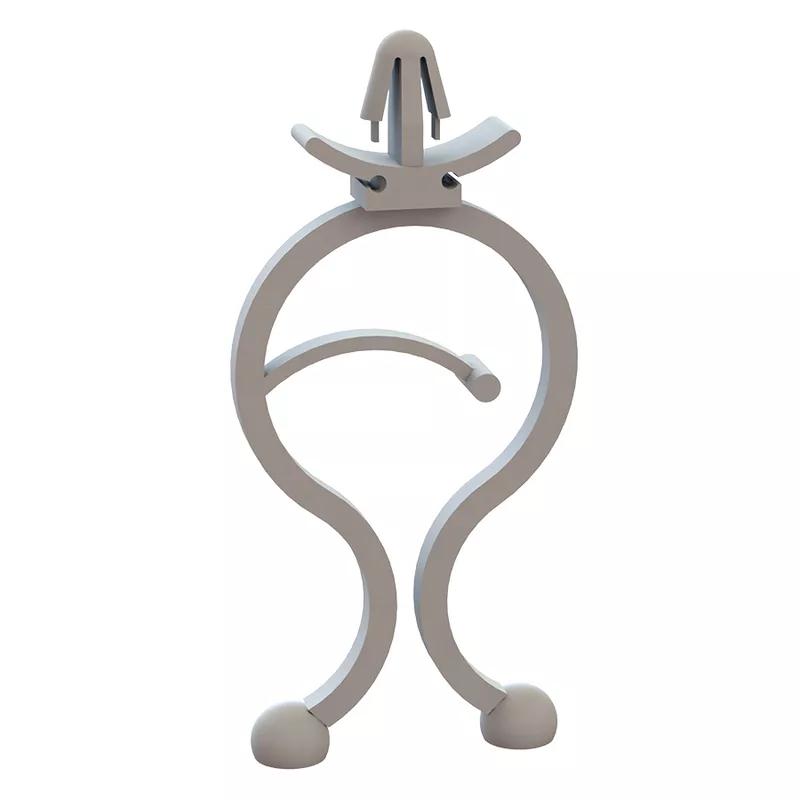

SR23EZSFA - Snap In Twist Locks with Locking Arm
Showing 1-1 of 1
Per page:1-1 of 1

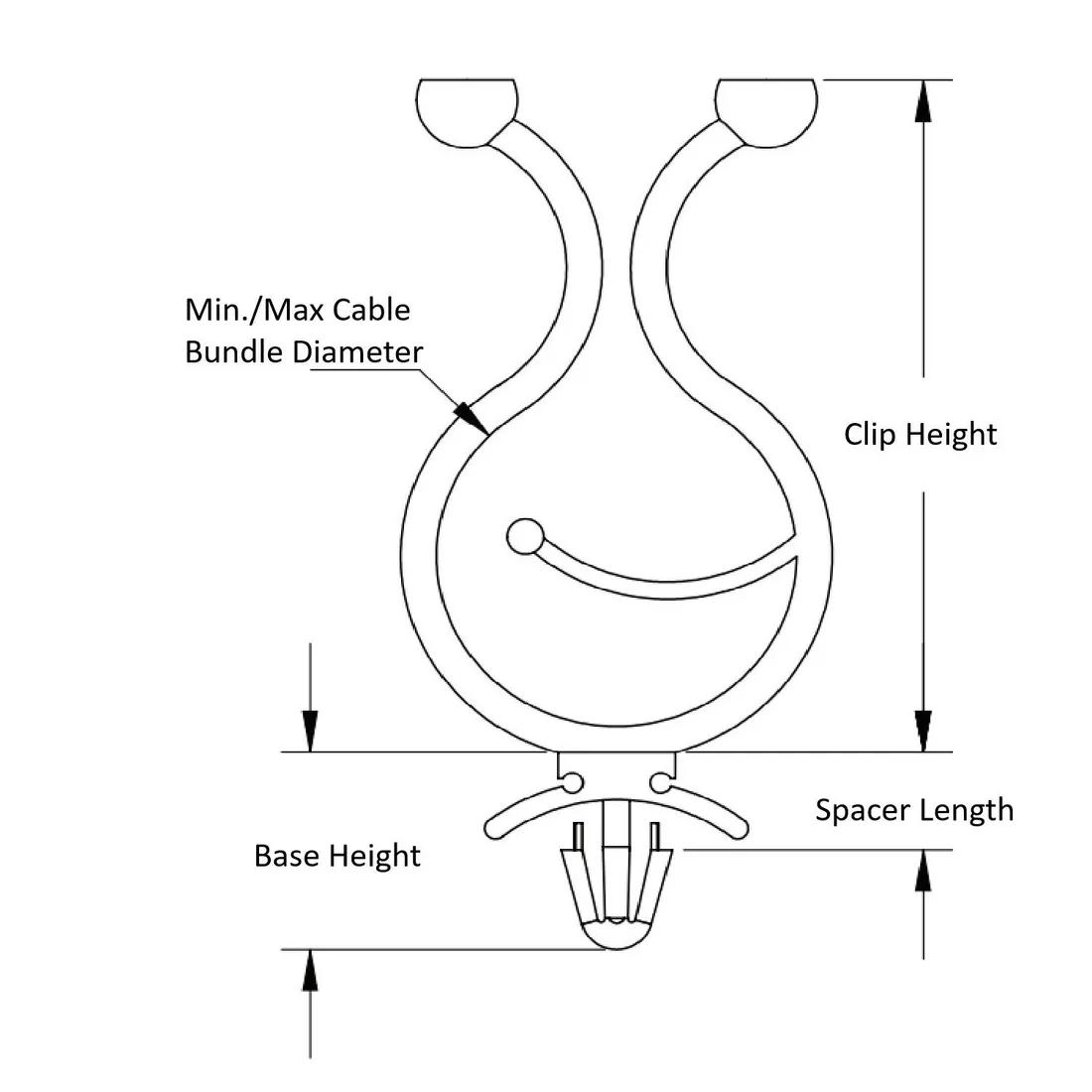

Item Code | Maximum Cable Bundle Diameter | Color | Material | Maximum Panel Thickness | Mounting Hole Diameter | Base Height | Minimum Panel Thickness | Clip Height | Material Flammability Standard | Mounting Method | Minimum Cable Bundle Diameter | Spacer Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23EZSFA0500B0018 | 17.8 mm | Natural | Nylon 6/6 | 1.8 mm | 4.8 mm | 11.5 mm | 0.8 mm | 39.3 mm | UL94 V-2 | Push-In | 10.2 mm | 5.7 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
23EZSFA0500B0018
Maximum Cable Bundle Diameter
17.8 mm
Color
Natural
Material
Nylon 6/6
Maximum Panel Thickness
1.8 mm
