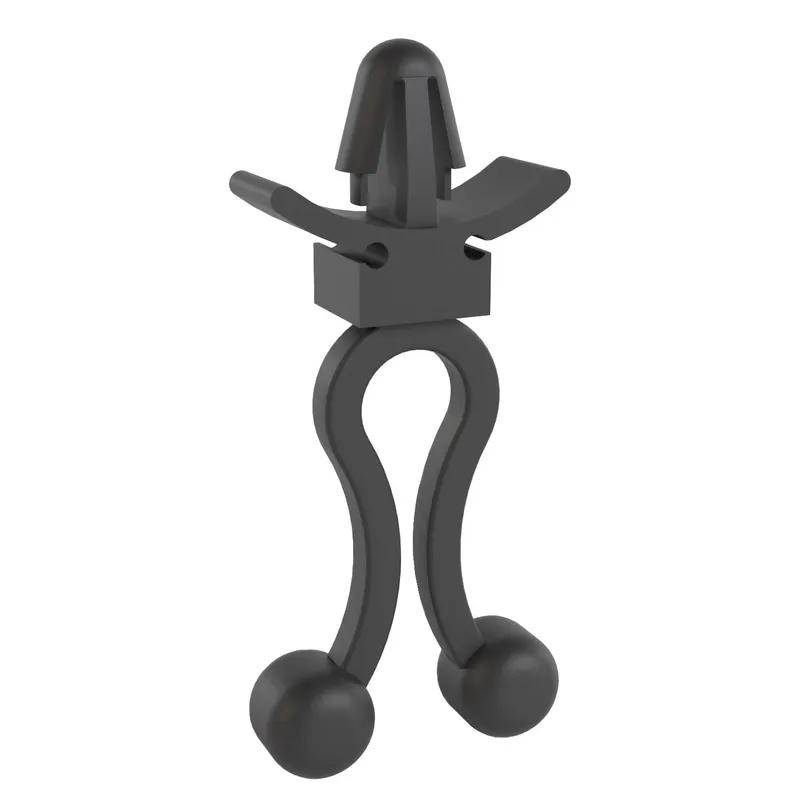

SR23EZS - Standoff Twist Locks
Showing 1-10 of 12
Per page:1-10 of 12
Item Code | Color | Material | Spacer Length | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Flange Thickness | Clip Height | Material Flammability Standard | Mounting Method | Base Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23EZS0375N0030 | Natural | Nylon 6/6 | 0.050 | 0.078 in | 0.218 | 0.187 in | 0.250 in | 1.066 in | UL94 V-2 | Push-In | 0.562 in | 0.030 in | |
23EZS0450N0625 | Natural | Nylon 6/6 | 0.615 | 0.078 in | 0.218 | 0.187 in | 0.250 in | 1.184 in | UL94 V-2 | Push-In | 0.562 in | 0.030 in | |
23EZS0250N0954 | Natural | Nylon 6/6 | 0.954 | 0.078 in | 0.218 | 0.187 in | 0.250 in | 0.876 in | UL94 V-2 | Push-In | 0.562 in | 0.030 in | |
23EZS0200N0030 | Natural | Nylon 6/6 | 0.011 | 0.078 in | 0.218 | 0.187 in | 0.250 in | 0.844 in | UL94 V-2 | Push-In | 0.562 in | 0.030 in | |
23EZS0450N0030 | Natural | Nylon 6/6 | 0.028 | 0.078 in | 0.218 | 0.187 in | 0.250 in | 1.180 in | UL94 V-2 | Push-In | 0.562 in | 0.030 in | |
23EZS0625N0028 | Natural | Nylon 6/6 | 0.028 | 0.078 in | 0.218 | 0.187 in | 0.250 in | 1.270 in | UL94 V-2 | Push-In | 0.562 in | 0.030 in | |
23EZS0375N0030B | Black | Nylon 6/6 | 0.050 in | 0.078 in | 0.218 in | 0.187 in | 0.250 in | 1.066 in | UL94 V-2 | A presión | 0.562 in | 0.030 in | |
23EZS0250N0954B | Black | Nylon 6/6 | 0.954 in | 0.078 in | 0.218 in | 0.187 in | 0.250 in | 0.876 in | UL94 V-2 | A presión | 0.562 in | 0.030 in | |
23EZS0450N0030B | Black | Nylon 6/6 | 0.028 in | 0.078 in | 0.218 in | 0.187 in | 0.250 in | 1.180 in | UL94 V-2 | - | 0.562 in | 0.030 in |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
23EZS0375N0030
Color
Natural
Material
Nylon 6/6
Spacer Length
0.050
Maximum Panel Thickness
0.078 in
23EZS0450N0625
Color
Natural
Material
Nylon 6/6
Spacer Length
0.615
Maximum Panel Thickness
0.078 in
23EZS0250N0954
Color
Natural
Material
Nylon 6/6
Spacer Length
0.954
Maximum Panel Thickness
0.078 in
23EZS0200N0030
Color
Natural
Material
Nylon 6/6
Spacer Length
0.011
Maximum Panel Thickness
0.078 in
