SRNM - Closed End Wire Connectors
Showing 1-4 of 4
Per page:1-4 of 4

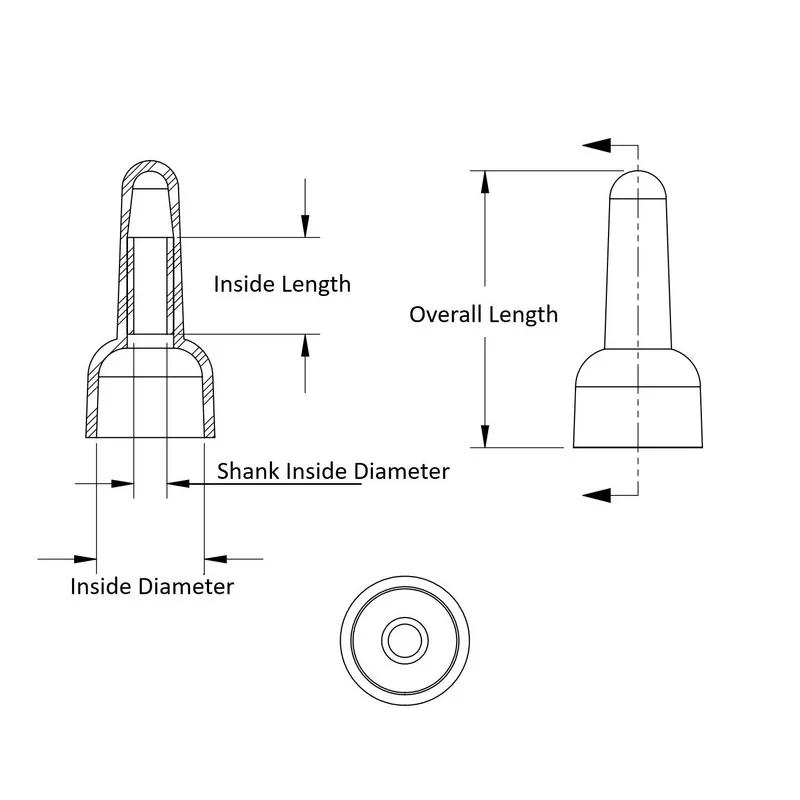

Item Code | Material Flammability Standard | Color | Insert Material | Material | Inside Length | Projection Height | Insert Coating | Overall Length | Inside Diameter | Max. American Wire Guage | Shank Inside Diameter | Min. American Wire Guage | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NM22WC08 | UL94 V-2 | Natural | Copper | Nylon 6/6 | 0.374 in | - | Tin Plated | 1.071 in | 0.472 in | 8 AWG | 0.165 in | - | |
NM22WC02 | UL94 V-2 | Natural | Copper | Nylon 6/6 | 0.295 in | - | Tin Plated | 0.787 in | 0.307 in | 14 AWG | 0.118 in | 16 AWG | |
NM22WC05 | UL94 V-2 | Natural | Copper | Nylon 6/6 | 0.335 in | - | Tin Plated | 1.004 in | 0.409 in | 10 AWG | 0.165 in | 12 AWG | |
NM22WC01 | UL94 V-2 | Natural | Copper | Nylon 6/6 | 0.275 in | - | Tin Plated | 0.787 in | 0.307 in | 16 AWG | 0.094 in | 22 AWG |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
NM22WC08
Material Flammability Standard
UL94 V-2
Color
Natural
Insert Material
Copper
Material
Nylon 6/6
NM22WC02
Material Flammability Standard
UL94 V-2
Color
Natural
Insert Material
Copper
Min. American Wire Guage
16 AWG
NM22WC05
Material Flammability Standard
UL94 V-2
Color
Natural
Insert Material
Copper
Min. American Wire Guage
12 AWG
NM22WC01
Material Flammability Standard
UL94 V-2
Color
Natural
Insert Material
Copper
Min. American Wire Guage
22 AWG
