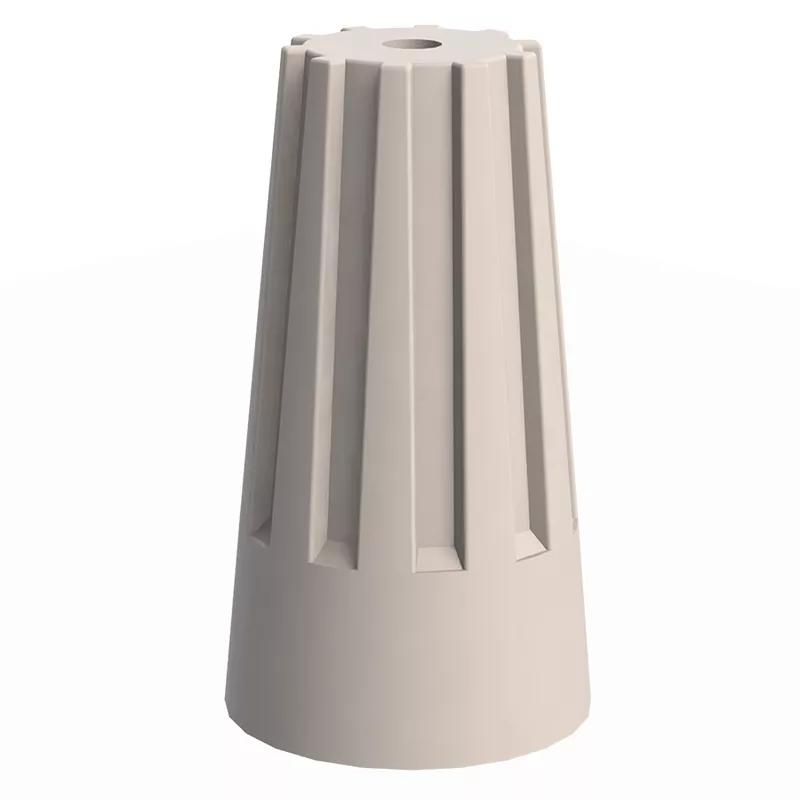

NM Series - Screw On Wire Connectors
Showing 1-5 of 5
Per page:1-5 of 5

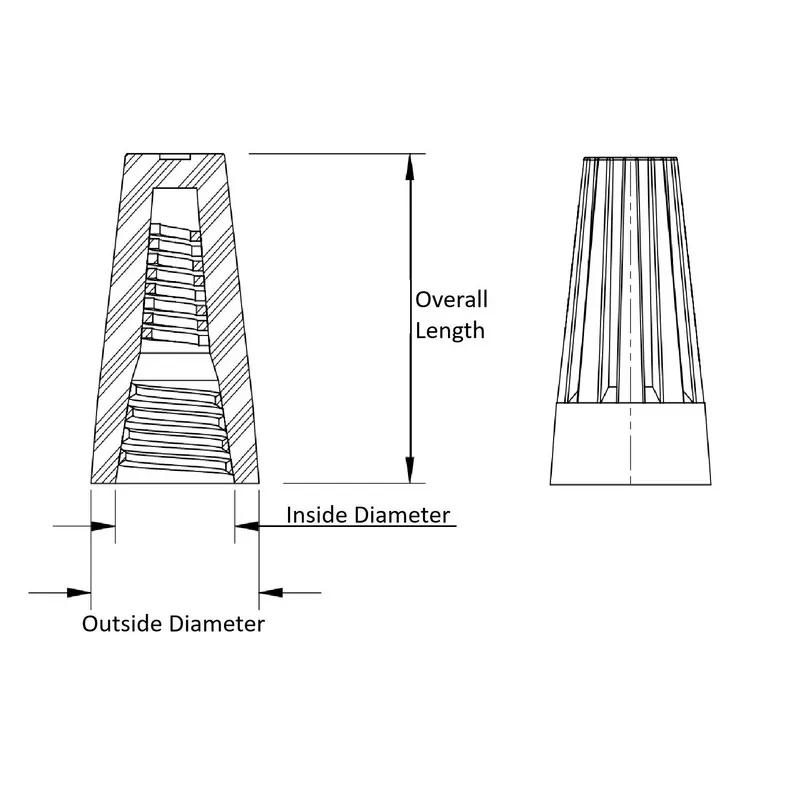

Item Code | Color | Material | Wire Configuration | Outside Diameter | Projection Height | Maximum Operating Temperature | Overall Length | Inside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
NM22SWC73 | Orange | PVC | MIN#20X3 MAX#16X3+#18X1 | 0.496 in | - | 105 °C | 0.866 in | 0.382 in | |
NM22SWC71 | Gray | PVC | MIN#20X1+#22X1 MAX#16X2 | 0.338 in | - | 105 °C | 0.598 in | 0.256 in | |
NM22SWC76 | Red | PVC | MIN#14X2 MAX#10X2+#12X2 | 0.645 in | - | 105 °C | 1.043 in | 0.516 in | |
NM22SWC72 | Blue | PVC | MIN#20X3 MAX#16X3 | 0.390 in | - | 105 °C | 0.697 in | 0.280 in | |
NM22SWC74 | Yellow | PVC | MIN#14X1+#18X1 MAX#14X4+#18X1 | 0.551 in | - | 105 °C | 0.961 in | 0.433 in |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
NM22SWC73
Color
Orange
Material
PVC
Wire Configuration
MIN#20X3 MAX#16X3+#18X1
Outside Diameter
0.496 in
NM22SWC71
Color
Gray
Material
PVC
Wire Configuration
MIN#20X1+#22X1 MAX#16X2
Outside Diameter
0.338 in
NM22SWC76
Color
Red
Material
PVC
Wire Configuration
MIN#14X2 MAX#10X2+#12X2
Outside Diameter
0.645 in
NM22SWC72
Color
Blue
Material
PVC
Wire Configuration
MIN#20X3 MAX#16X3
Outside Diameter
0.390 in
Per page:
1–5 of 6
