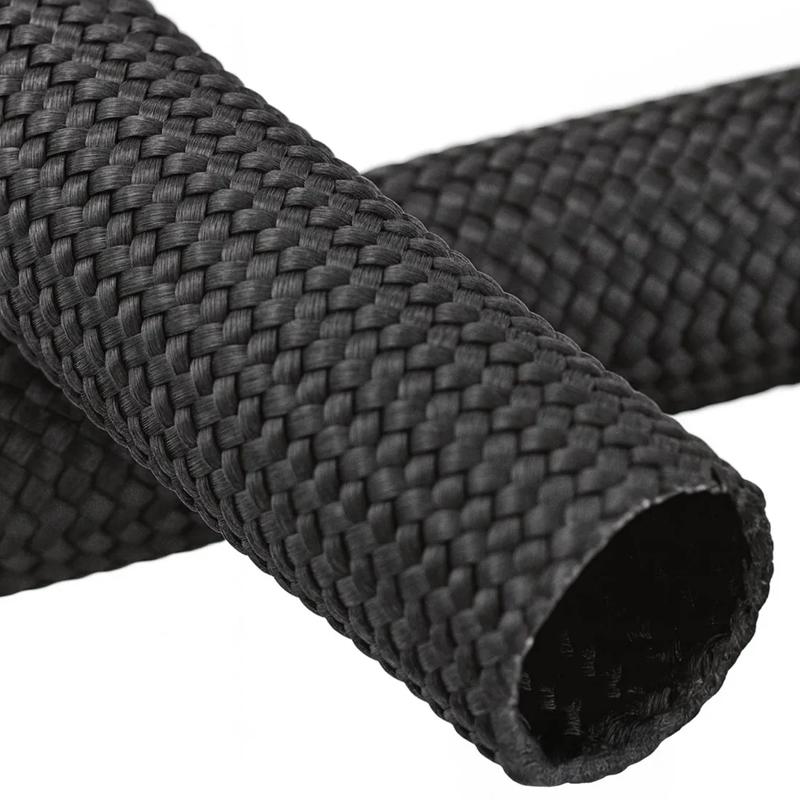

SRNMBUS - Nylon Multifilament Braided Sleeves
Showing 1-10 of 13
Per page:1-10 of 13
Item Code | Color | Minimum Cable Bundle Diameter | Roll Length | Tool | Maximum Operating Temperature | Melting Point | Maximum Cable Bundle Diameter | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
NMUBS-19 | Black | 12.0 mm | 20.0 m | Hot Knife | 125 °C | 220±10°C | 20.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-16 | Black | 10.0 mm | 17.0 m | Hot Knife | 125 °C | 220±10°C | 17.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-08 | Black | 5.0 mm | 9.0 m | Hot Knife | 125 °C | 220±10°C | 9.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-06 | Black | 4.0 mm | 7.0 m | Hot Knife | 125 °C | 220±10°C | 7.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-03 | Black | 2.0 mm | 4.0 m | Hot Knife | 125 °C | 220±10°C | 4.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-10 | Black | 6.0 mm | 11.0 m | Hot Knife | 125 °C | 220±10°C | 11.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-12 | Black | 8.0 mm | 13.0 m | Hot Knife | 125 °C | 220±10°C | 13.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-50 | Black | 32.0 mm | 51.0 m | Hot Knife | 125 °C | 220±10°C | 51.0 mm | -50 °C | Nylon 6 Multi-filament | |
NMUBS-63 | Black | 40.0 mm | 64.0 m | Hot Knife | 125 °C | 220±10°C | 64.0 mm | -50 °C | Nylon 6 Multi-filament |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
NMUBS-19
Color
Black
Minimum Cable Bundle Diameter
12.0 mm
Roll Length
20.0 m
Tool
Hot Knife
NMUBS-16
Color
Black
Minimum Cable Bundle Diameter
10.0 mm
Roll Length
17.0 m
Tool
Hot Knife
NMUBS-08
Color
Black
Minimum Cable Bundle Diameter
5.0 mm
Roll Length
9.0 m
Tool
Hot Knife
NMUBS-06
Color
Black
Minimum Cable Bundle Diameter
4.0 mm
Roll Length
7.0 m
Tool
Hot Knife
Per page:
1–5 of 14
