SR22HSC - Standard Hose Clamps
Showing 1-10 of 28
Per page:1-10 of 28

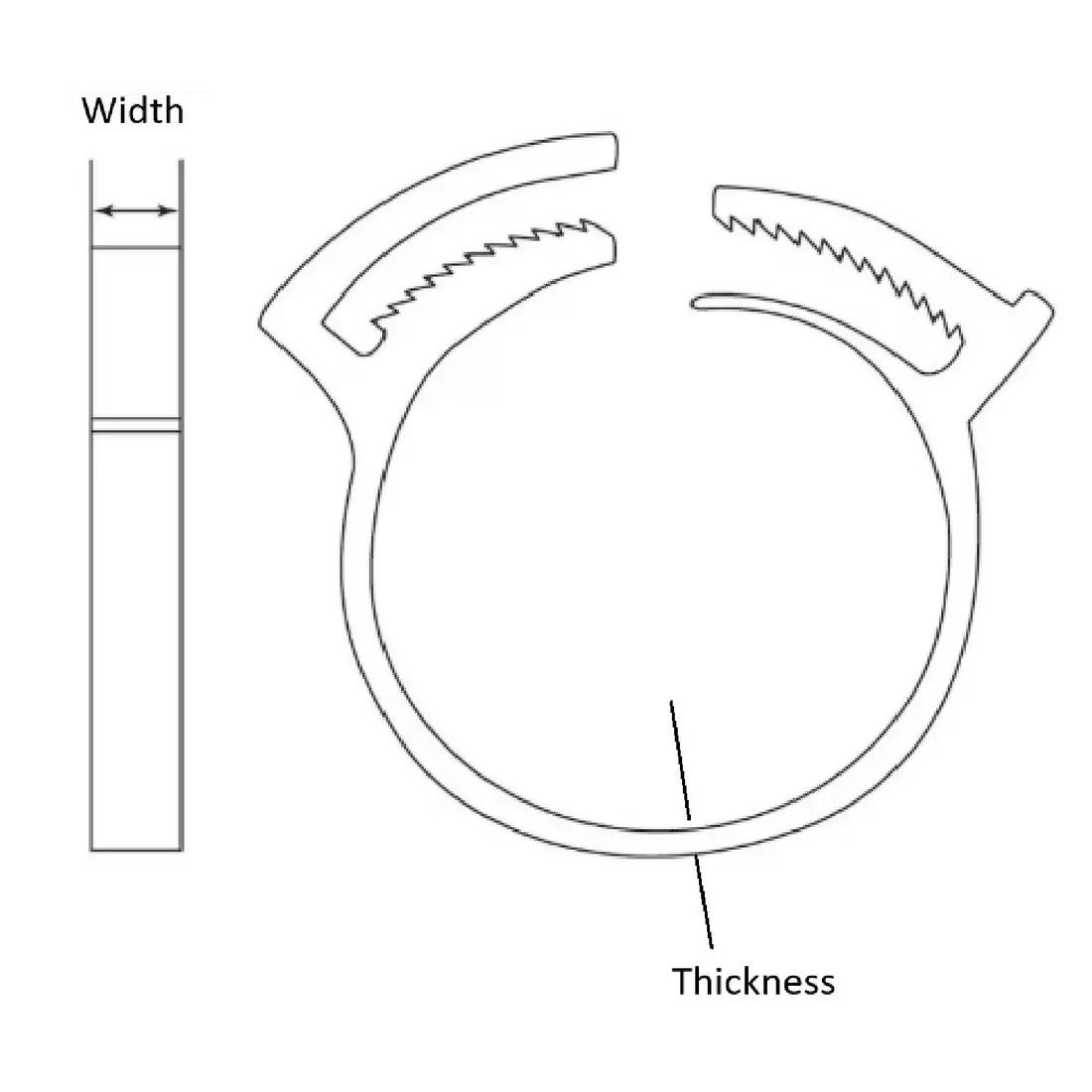

Item Code | Material Flammability Standard | Color | Mount Style | Thickness | Clamp Style | Type | Material | Width | Max. Hose Diameter | Min. Hose Diameter | Minimum Operating Temperature | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22HSC0060B | UL94 V-2 | Black | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.480 in | 0.430 in | - | - | |
22HSC0040 | UL94 V-2 | Natural | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.410 in | 0.360 in | - | - | |
22HSC0010B | UL94 V-2 | Black | Interlocking Design | 0.040 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.156 in | 0.260 in | 0.235 in | - | - | |
22HSC0020B | UL94 V-2 | Black | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.395 in | 0.350 in | - | - | |
22HSC0040B | UL94 V-2 | Black | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.410 in | 0.360 in | - | - | |
22HSC0020 | UL94 V-2 | Natural | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.395 in | 0.350 in | - | - | |
22HSC0010 | UL94 V-2 | Natural | Interlocking Design | 0.040 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.156 in | 0.260 in | 0.235 in | - | - | |
22HSC0080B | UL94 V-2 | Black | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.545 in | 0.500 in | - | - | |
22HSC0060 | UL94 V-2 | Natural | Interlocking Design | 0.070 in | Push Lock | Standard, Quick Assembly | Nylon 6/6 | 0.230 in | 0.480 in | 0.430 in | - | - |
Per page:
1-10 of 28
1–5 of 28 variants
Per page:
22HSC0060B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.070 in
22HSC0040
Material Flammability Standard
UL94 V-2
Color
Natural
Mount Style
Interlocking Design
Thickness
0.070 in
22HSC0010B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.040 in
22HSC0020B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.070 in
