SR22HCFC - Standard Hose Clamps Fin Clip Base
Showing 1-3 of 3
Per page:1-3 of 3

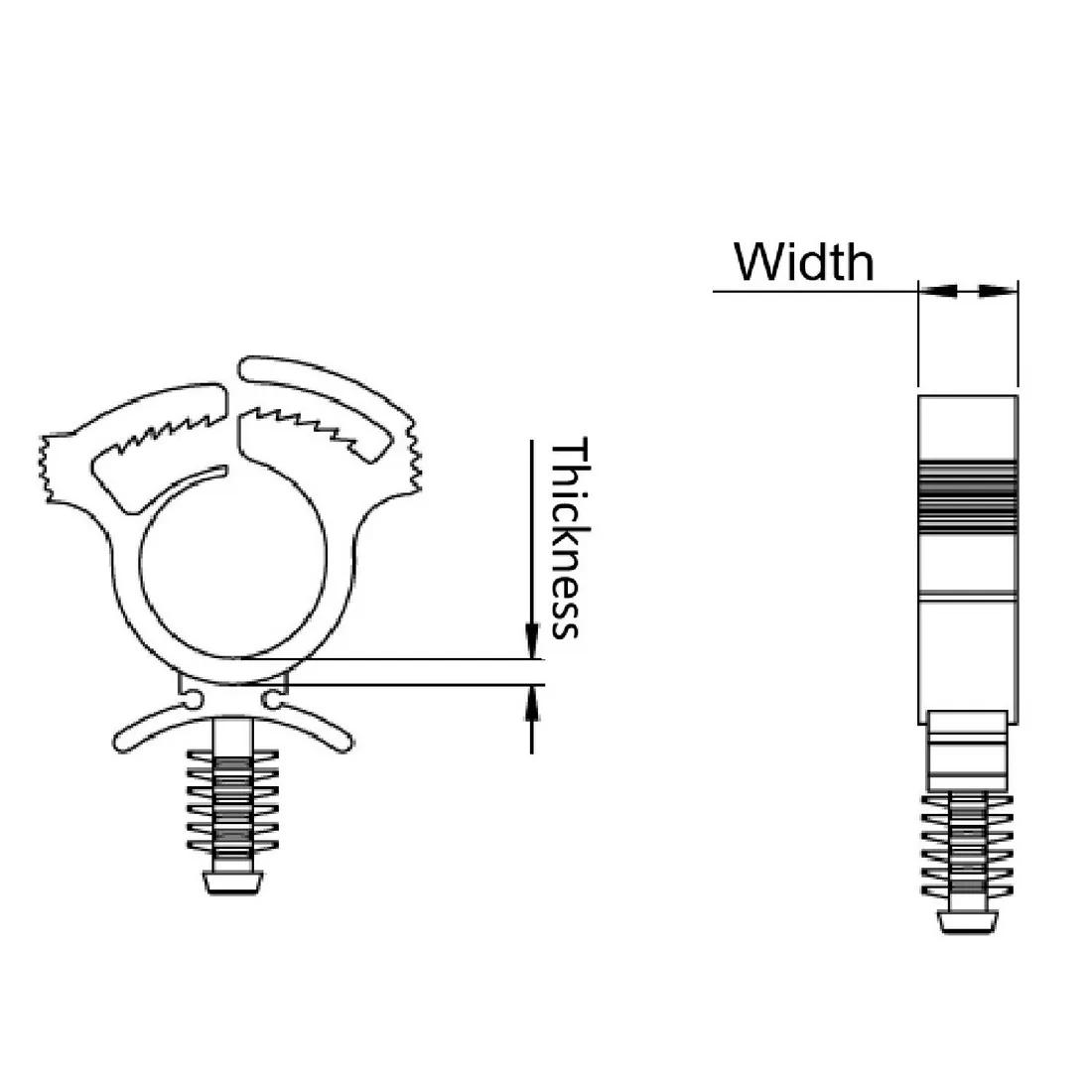

Item Code | Color | Maximum Hole Diameter | Thickness | Minimum Panel Thickness | Clamp Style | Type | Material Flammability Standard | Minimum Hole Diameter | Material | Width | Maximum Panel Thickness | Mount Style | Max. Hose Diameter | Min. Hose Diameter | Minimum Operating Temperature | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22HCFC106188B | Black | 0.250 in | 0.070 in | 0.031 in | Push Lock | 2 | UL94 V-2 | 0.187 in | Nylon 6/6 | 0.250 in | 0.251 in | Fin Clip Base, Inter-Locking | 1.135 in | 0.990 in | - | - | |
22HCFC037188 | Natural | 0.230 in | 0.070 | 0.031 in | Push-Lock | 1 | UL94 V-2 | 0.187 in | Nylon 6/6 | 0.230 | 0.250 in | Fin Clip Base, Inter-Locking | 0.395 in | 0.360 in | -40 °F | 184 °F | |
22HCFC106188 | Natural | 0.250 in | 0.070 | 0.031 in | Push-Lock | 1 | UL94 V-2 | 0.187 in | Nylon 6/6 | 0.250 | 0.251 in | Fin Clip Base, Inter-Locking | 1.135 in | 0.990 in | -40 °F | 184 °F |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
22HCFC106188B
Color
Black
Maximum Hole Diameter
0.250 in
Thickness
0.070 in
Minimum Panel Thickness
0.031 in
22HCFC037188
Color
Natural
Maximum Hole Diameter
0.230 in
Thickness
0.070
Clamp Style
Push-Lock
22HCFC106188
Color
Natural
Maximum Hole Diameter
0.250 in
Thickness
0.070
Clamp Style
Push-Lock
