SR22HC - Premium Hose Clamps
Showing 1-10 of 38
Per page:1-10 of 38

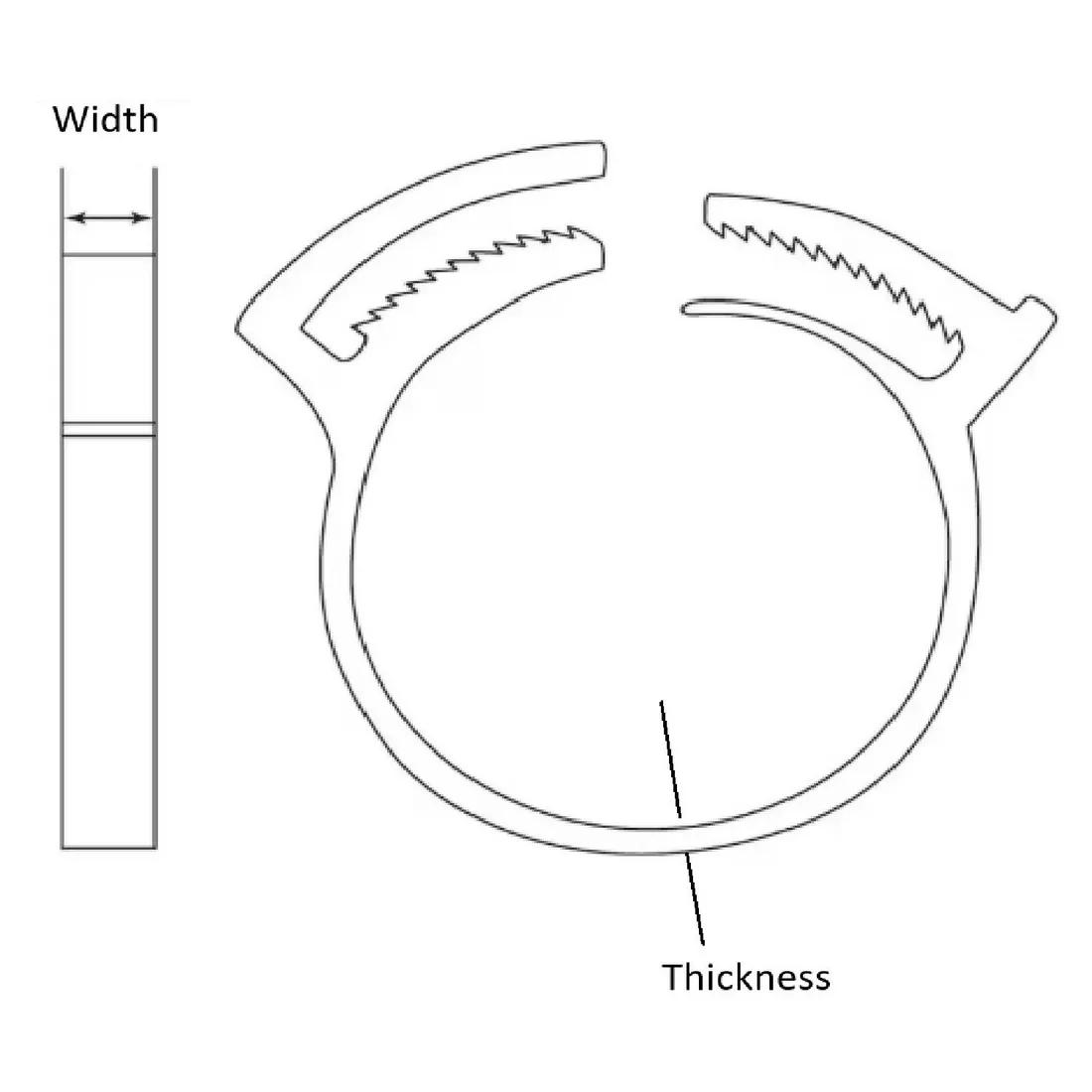

Item Code | Material Flammability Standard | Color | Mount Style | Thickness | Clamp Style | Type | Minimum Operating Temperature | Material | Width | Max. Hose Diameter | Min. Hose Diameter | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22HC0344B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.219 | 0.390 in | 0.360 in | 184 °F | |
22HC0250B | UL94 V-2 | Black | Interlocking Design | 0.047 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.219 | 0.260 in | 0.235 in | 184 °F | |
22HC0875B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.219 | 0.940 in | 0.840 in | 184 °F | |
22HC1031B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.313 | 1.187 in | 1.031 in | 184 °F | |
22HC0813B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.216 | 0.875 in | 0.750 in | 184 °F | |
22HC0953B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.250 | 1.025 in | 0.885 in | 184 °F | |
22HC1406B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.344 | 1.610 in | 1.406 in | 184 °F | |
22HC1593B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.344 | 1.812 in | 1.593 in | 184 °F | |
22HC2125B | UL94 V-2 | Black | Interlocking Design | 0.062 | Push-Lock | 3 | -40 °F | Nylon 6/6 | 0.406 | 2.390 in | 2.120 in | 184 °F |
Per page:
1-10 of 38
1–5 of 38 variants
Per page:
22HC0344B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.062
22HC0250B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.047
22HC0875B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.062
22HC1031B
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Interlocking Design
Thickness
0.062
