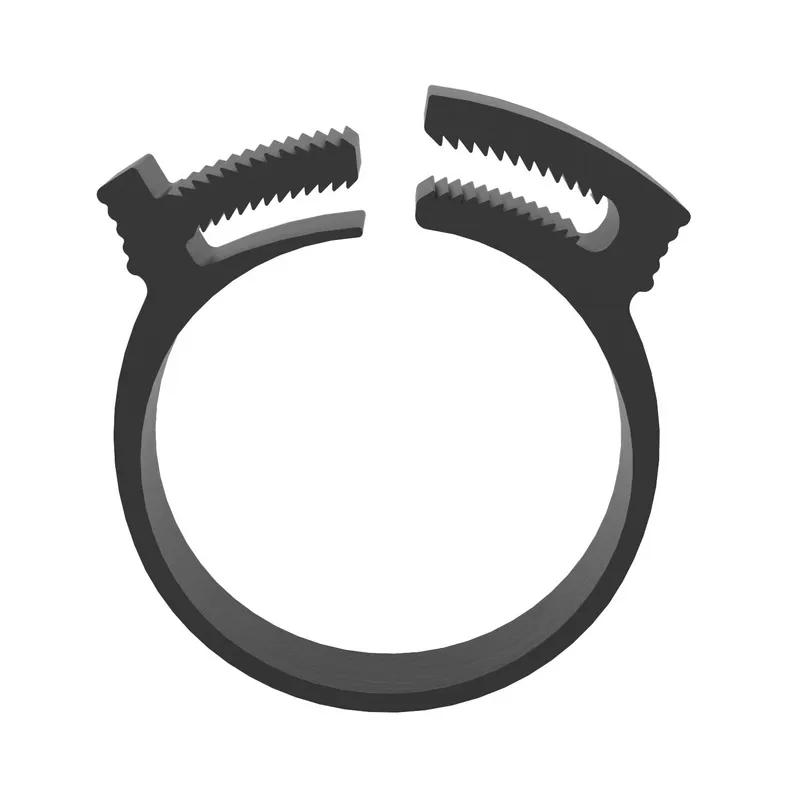

SR22DGHC - Quick Assemble Hose Clamps
Showing 1-10 of 36
Per page:1-10 of 36
Item Code | Material Flammability Standard | Color | Mount Style | Thickness | Clamp Style | Type | Minimum Operating Temperature | Material | Width | Max. Hose Diameter | Min. Hose Diameter | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22DGHC0AA | UL94 V-2 | Black | Double Grip Inter-Locking | 1.65 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 4.5 | 7.6 mm | 6.5 mm | 184 °F | |
22DGHC00A | UL94 V-2 | Black | Double Grip Inter-Locking | 1.57 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 4.3 | 6.5 mm | 5.6 mm | 184 °F | |
22DGHC0CC | UL94 V-2 | Black | Double Grip Inter-Locking | 1.57 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 6.4 | 12.9 mm | 11.1 mm | 184 °F | |
22DGHC00C | UL94 V-2 | Black | Double Grip Inter-Locking | 1.57 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 5.8 | 11.9 mm | 10.2 mm | 184 °F | |
22DGHC00B | UL94 V-2 | Black | Double Grip Inter-Locking | 1.57 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 4.8 | 9.2 mm | 7.9 mm | 184 °F | |
22DGHC00G | UL94 V-2 | Black | Double Grip Inter-Locking | 1.98 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 7.1 | 19.1 mm | 16.9 mm | 184 °F | |
22DGHC00E | UL94 V-2 | Black | Double Grip Inter-Locking | 1.98 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 7.2 | 15.1 mm | 13.1 mm | 184 °F | |
22DGHC00D | UL94 V-2 | Black | Double Grip Inter-Locking | 1.57 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 6.1 | 13.8 mm | 12.0 mm | 184 °F | |
22DGHC0BB | UL94 V-2 | Black | Double Grip Inter-Locking | 1.65 | Push-Lock | 2 | -40 °F | Nylon 6/6 | 4.5 | 10.3 mm | 9.2 mm | 184 °F |
Per page:
1-10 of 36
1–5 of 36 variants
Per page:
22DGHC0AA
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Double Grip Inter-Locking
Thickness
1.65
22DGHC00A
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Double Grip Inter-Locking
Thickness
1.57
22DGHC0CC
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Double Grip Inter-Locking
Thickness
1.57
22DGHC00C
Material Flammability Standard
UL94 V-2
Color
Black
Mount Style
Double Grip Inter-Locking
Thickness
1.57
Per page:
1–5 of 37
