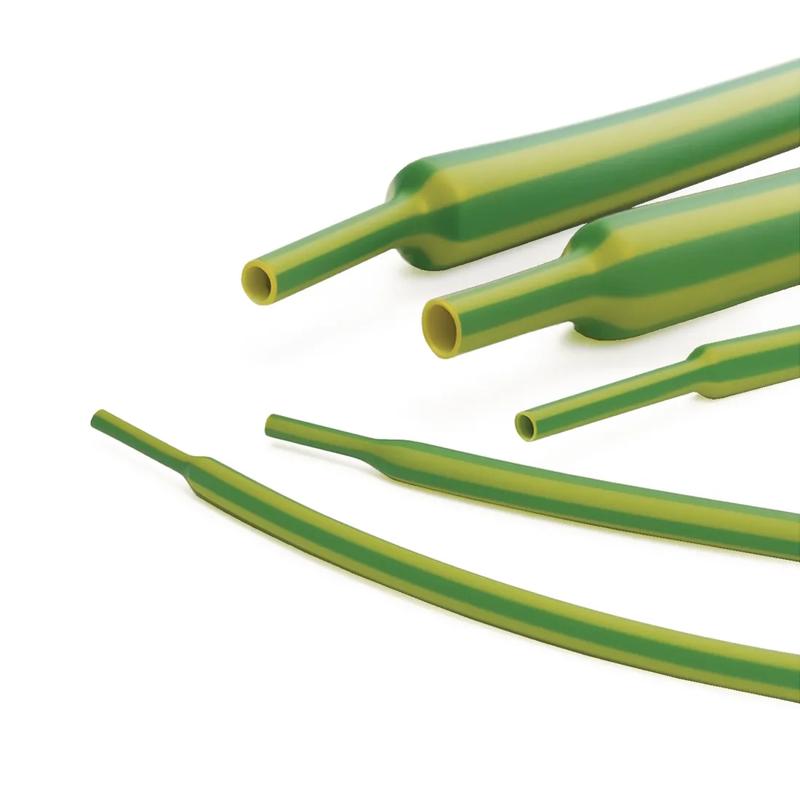

SRHST YG - 2:1 Yellow & Green Striped Heat Shrink Tubing
Item Code | Wall Thickness (Shrunk) | Material Flammability Standard | Color | Minimum Full Recovery Temperature | Packaging Style | Shrink Ratio | Maximum Operating Temperature | Inside Diameter (Shrunk) | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Pre-Shrunk Inside Diameter | Minimum Shrink Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495901 | 0.75 mm | 125°C VW-1 600V | Green;Yellow | 100 °C | Rollo | 2:1 | 135 °C | 4.8 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 9.5 mm | 70 °C | |
495898 | 0.55 mm | 125°C VW-1 600V | Green;Yellow | 100 °C | Rollo | 2:1 | 135 °C | 1.6 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 3.2 mm | 70 °C | |
495902 | 0.75 mm | 125°C VW-1 600V | Green;Yellow | 100 °C | Rollo | 2:1 | 135 °C | 6.4 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 12.7 mm | 70 °C | |
495903 | 0.85 mm | 125°C VW-1 600V | Green;Yellow | 100 °C | Rollo | 2:1 | 135 °C | 9.5 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 19.0 mm | 70 °C | |
495904 | 1.0 mm | 125°C VW-1 600V | Green;Yellow | 100 °C | Rollo | 2:1 | 135 °C | 12.7 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 25.4 mm | 70 °C | |
495900 | 0.65 mm | 125°C VW-1 600V | Green;Yellow | 100 °C | Rollo | 2:1 | 135 °C | 3.2 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 6.4 mm | 70 °C |
495901
Wall Thickness (Shrunk)
0.75 mm
Material Flammability Standard
125°C VW-1 600V
Color
Green;Yellow
Minimum Full Recovery Temperature
100 °C
495898
Wall Thickness (Shrunk)
0.55 mm
Material Flammability Standard
125°C VW-1 600V
Color
Green;Yellow
Minimum Full Recovery Temperature
100 °C
495902
Wall Thickness (Shrunk)
0.75 mm
Material Flammability Standard
125°C VW-1 600V
Color
Green;Yellow
Minimum Full Recovery Temperature
100 °C
495903
Wall Thickness (Shrunk)
0.85 mm
Material Flammability Standard
125°C VW-1 600V
Color
Green;Yellow
Minimum Full Recovery Temperature
100 °C
