SRHST CLEAR - 2:1 Clear Heat Shrink Tubing
Showing 1-10 of 13
Per page:1-10 of 13

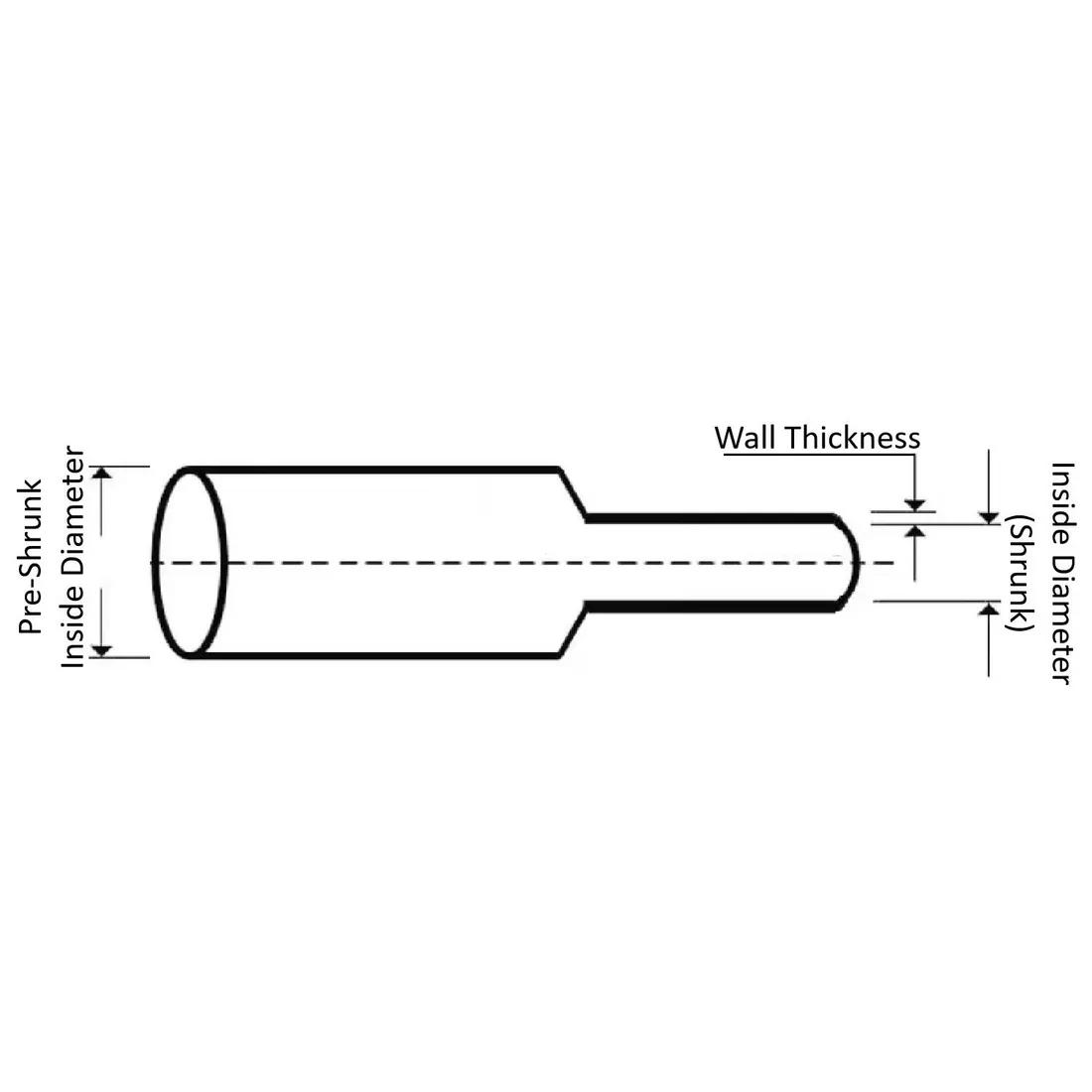

Item Code | Wall Thickness (Shrunk) | Color | Overall Length | Minimum Full Recovery Temperature | Packaging Style | Shrink Ratio | Maximum Operating Temperature | Inside Diameter (Shrunk) | Minimum Operating Temperature | Material | Pre-Shrunk Inside Diameter | Minimum Shrink Temperature | Nominal Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495883 | 0.33 mm | Clear | 150.0 m | 95 °C | Rollo | 2:1 | 105 °C | 0.6 mm | -55 °C | XLPO | 1.2 mm | 70 °C | - | |
495887 | 0.56 mm | Clear | 75.0 m | 95 °C | Rollo | 2:1 | 105 °C | 2.4 mm | -55 °C | XLPO | 4.8 mm | 70 °C | - | |
495885 | 0.44 mm | Clear | 150.0 m | 95 °C | Rollo | 2:1 | 105 °C | 1.2 mm | -55 °C | XLPO | 2.4 mm | 70 °C | - | |
495888 | 0.56 mm | Clear | 75.0 m | 95 °C | Rollo | 2:1 | 105 °C | 3.2 mm | -55 °C | XLPO | 6.4 mm | 70 °C | - | |
495893 | 0.9 mm | Clear | 30.0 m | 95 °C | Rollo | 2:1 | 105 °C | 12.7 mm | -55 °C | XLPO | 25.4 mm | 70 °C | 1.000 in | |
495890 | 0.65 mm | Clear | 50.0 m | 95 °C | Rollo | 2:1 | 105 °C | 6.4 mm | -55 °C | XLPO | 12.7 mm | 70 °C | - | |
495889 | 0.56 mm | Clear | 75.0 m | 95 °C | Rollo | 2:1 | 105 °C | 4.8 mm | -55 °C | XLPO | 9.5 mm | 70 °C | - | |
495894 | 1.0 mm | Clear | 30.0 m | 95 °C | Rollo | 2:1 | 105 °C | 16.0 mm | -55 °C | XLPO | 32.0 mm | 70 °C | - | |
495891 | 0.69 mm | Clear | 50.0 m | 95 °C | Rollo | 2:1 | 105 °C | 8.0 mm | -55 °C | XLPO | 16.0 mm | 70 °C | - |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
495883
Wall Thickness (Shrunk)
0.33 mm
Color
Clear
Overall Length
150.0 m
Minimum Full Recovery Temperature
95 °C
495887
Wall Thickness (Shrunk)
0.56 mm
Color
Clear
Overall Length
75.0 m
Minimum Full Recovery Temperature
95 °C
495885
Wall Thickness (Shrunk)
0.44 mm
Color
Clear
Overall Length
150.0 m
Minimum Full Recovery Temperature
95 °C
495888
Wall Thickness (Shrunk)
0.56 mm
Color
Clear
Overall Length
75.0 m
Minimum Full Recovery Temperature
95 °C
Per page:
1–5 of 14
