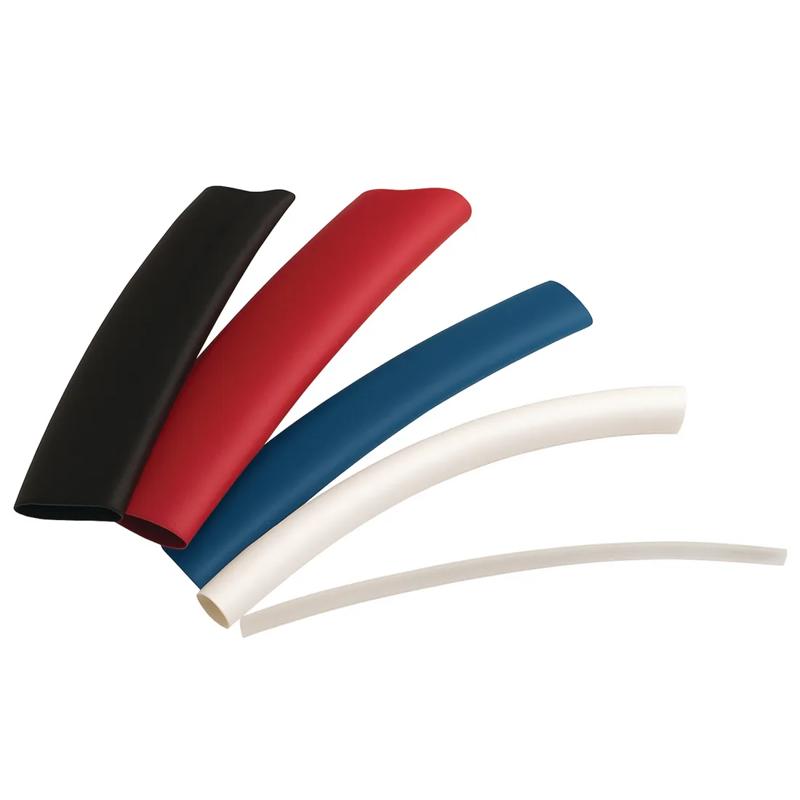

SRHST ADHESIVE - 3:1 Adhesive Lined Heat Shrink Tubing

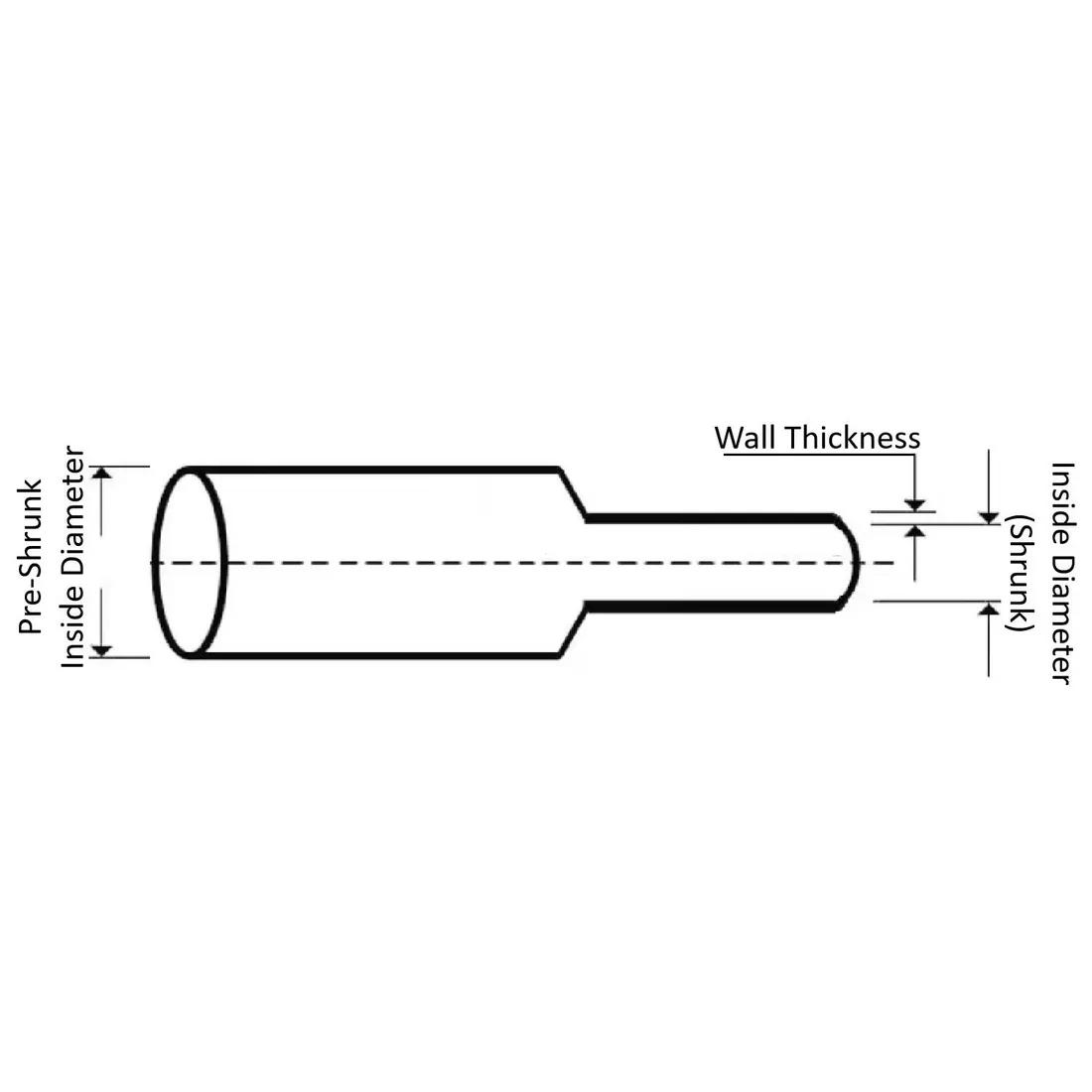

Item Code | Wall Thickness (Shrunk) | Material Flammability Standard | Color | Minimum Full Recovery Temperature | Packaging Style | Shrink Ratio | Maximum Operating Temperature | Inside Diameter (Shrunk) | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Pre-Shrunk Inside Diameter | Minimum Shrink Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495987 | 1.0 mm | 125°C VW-1 600V | Black | 110 °C | Bobina | 3:1 | 125 °C | 1.0 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 3.0 mm | 80 °C | |
495990 | 1.4 mm | 125°C VW-1 600V | Black | 110 °C | Bobina | 3:1 | 125 °C | 3.0 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 9.0 mm | 80 °C | |
495988 | 1.0 mm | 125°C VW-1 600V | Black | 110 °C | Bobina | 3:1 | 125 °C | 1.5 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 4.8 mm | 80 °C | |
495992 | 2.15 mm | 125°C VW-1 600V | Black | 110 °C | Bobina | 3:1 | 125 °C | 6.0 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 19.0 mm | 80 °C | |
496007 | 1.6 mm | 125°C VW-1 600V | Red | 110 °C | Bobina | 3:1 | 125 °C | 4.0 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 12.0 mm | 80 °C | |
496008 | 2.15 mm | 125°C VW-1 600V | Red | 110 °C | Bobina | 3:1 | 125 °C | 6.0 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 19.0 mm | 80 °C | |
495994 | 2.4 mm | 125°C VW-1 600V | Black | 110 °C | Bobina | 3:1 | 125 °C | 13.0 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 40.0 mm | 80 °C | |
496003 | 1.0 mm | 125°C VW-1 600V | Red | 110 °C | Bobina | 3:1 | 125 °C | 1.0 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 3.0 mm | 80 °C | |
496006 | 1.4 mm | 125°C VW-1 600V | Red | 110 °C | Bobina | 3:1 | 125 °C | 3.0 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 9.0 mm | 80 °C |
495987
Wall Thickness (Shrunk)
1.0 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
110 °C
495990
Wall Thickness (Shrunk)
1.4 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
110 °C
495988
Wall Thickness (Shrunk)
1.0 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
110 °C
495992
Wall Thickness (Shrunk)
2.15 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
110 °C
