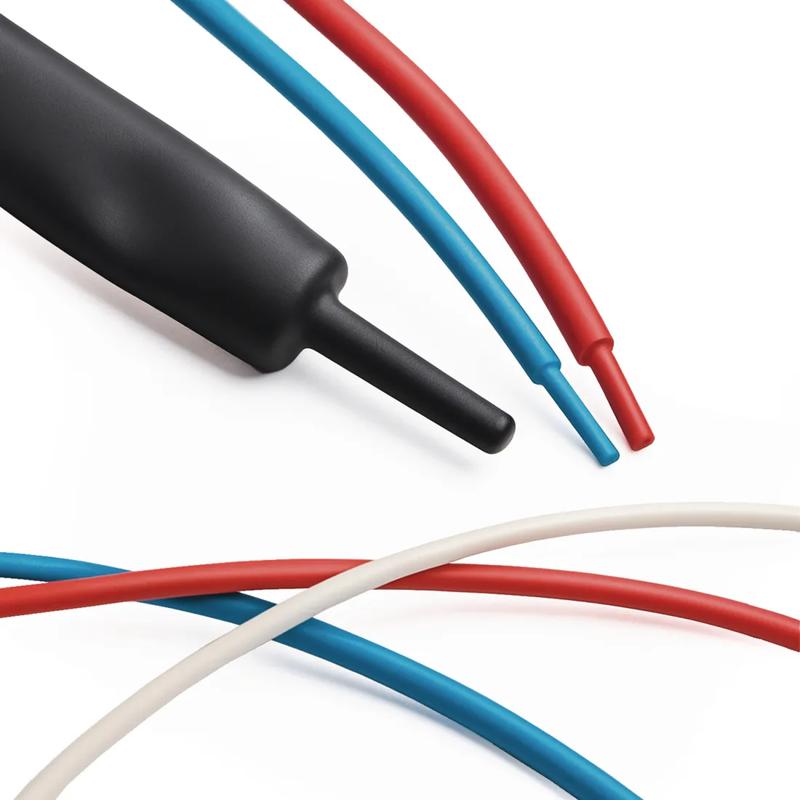

SRHST 3:1 - 3:1 Heat Shrink Tubing

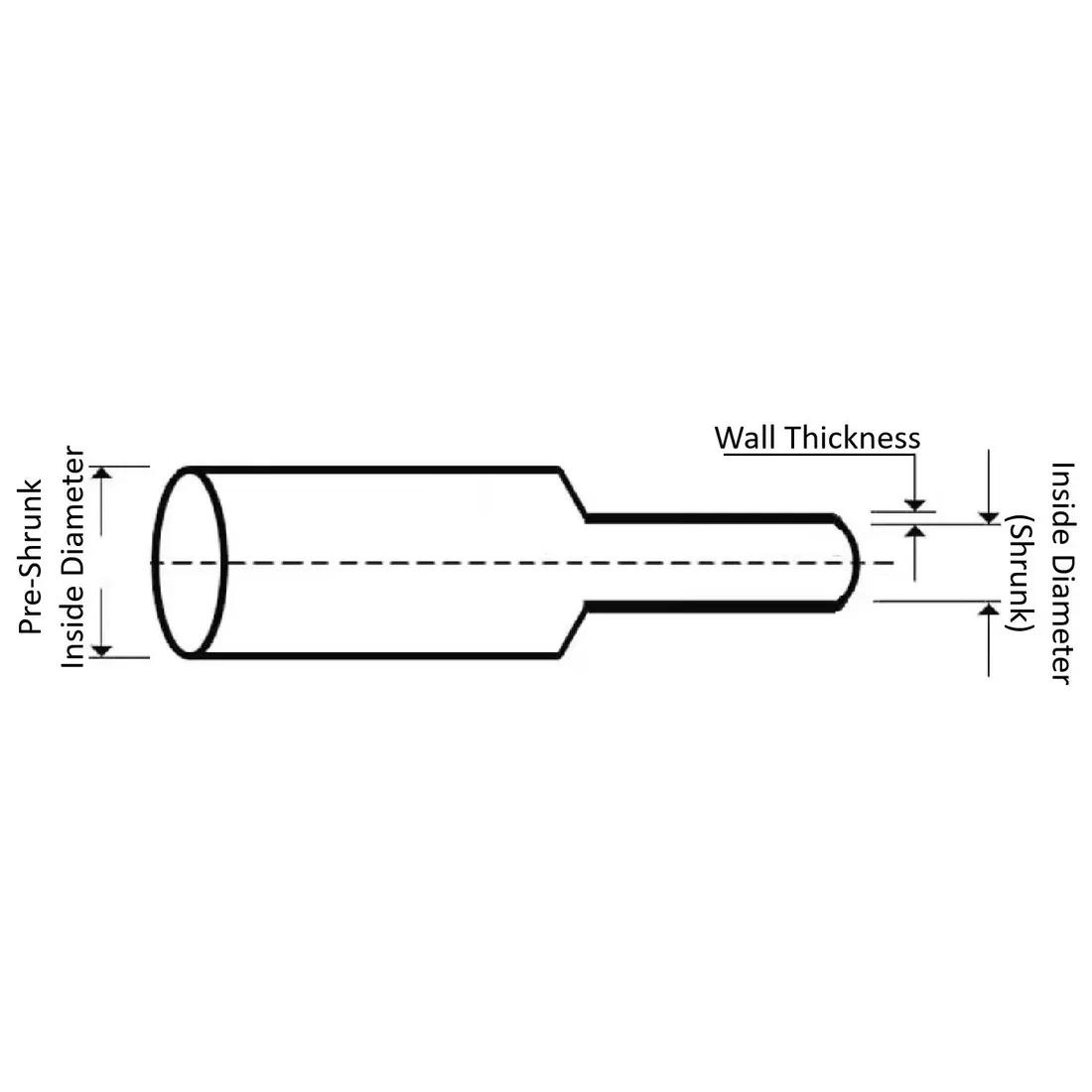

Item Code | Wall Thickness (Shrunk) | Material Flammability Standard | Color | Minimum Full Recovery Temperature | Packaging Style | Shrink Ratio | Maximum Operating Temperature | Inside Diameter (Shrunk) | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Pre-Shrunk Inside Diameter | Minimum Shrink Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495965 | 0.8 mm | 125°C VW-1 600V | White | 100 °C | Rollo | 3:1 | 125 °C | 4.0 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 12.0 mm | 70 °C | |
495906 | 0.45 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 0.5 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 1.5 mm | 70 °C | |
495909 | 0.65 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 2.0 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 6.0 mm | 70 °C | |
495908 | 0.6 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 1.5 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 4.5 mm | 70 °C | |
495911 | 0.8 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 4.0 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 12.0 mm | 70 °C | |
495907 | 0.55 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 1.0 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 3.0 mm | 70 °C | |
495913 | 1.1 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 8.0 mm | -55 °C | XLPO | 30.0 m | UL E204071 | 24.0 mm | 70 °C | |
495910 | 0.75 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 3:1 | 125 °C | 3.0 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 9.0 mm | 70 °C | |
495916 | 0.55 mm | 125°C VW-1 600V | Red | 100 °C | Rollo | 3:1 | 125 °C | 1.0 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 3.0 mm | 70 °C |
495965
Wall Thickness (Shrunk)
0.8 mm
Material Flammability Standard
125°C VW-1 600V
Color
White
Minimum Full Recovery Temperature
100 °C
495906
Wall Thickness (Shrunk)
0.45 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
100 °C
495909
Wall Thickness (Shrunk)
0.65 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
100 °C
495908
Wall Thickness (Shrunk)
0.6 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
Minimum Full Recovery Temperature
100 °C
