SRHST - 2:1 Heat Shrink Tubing

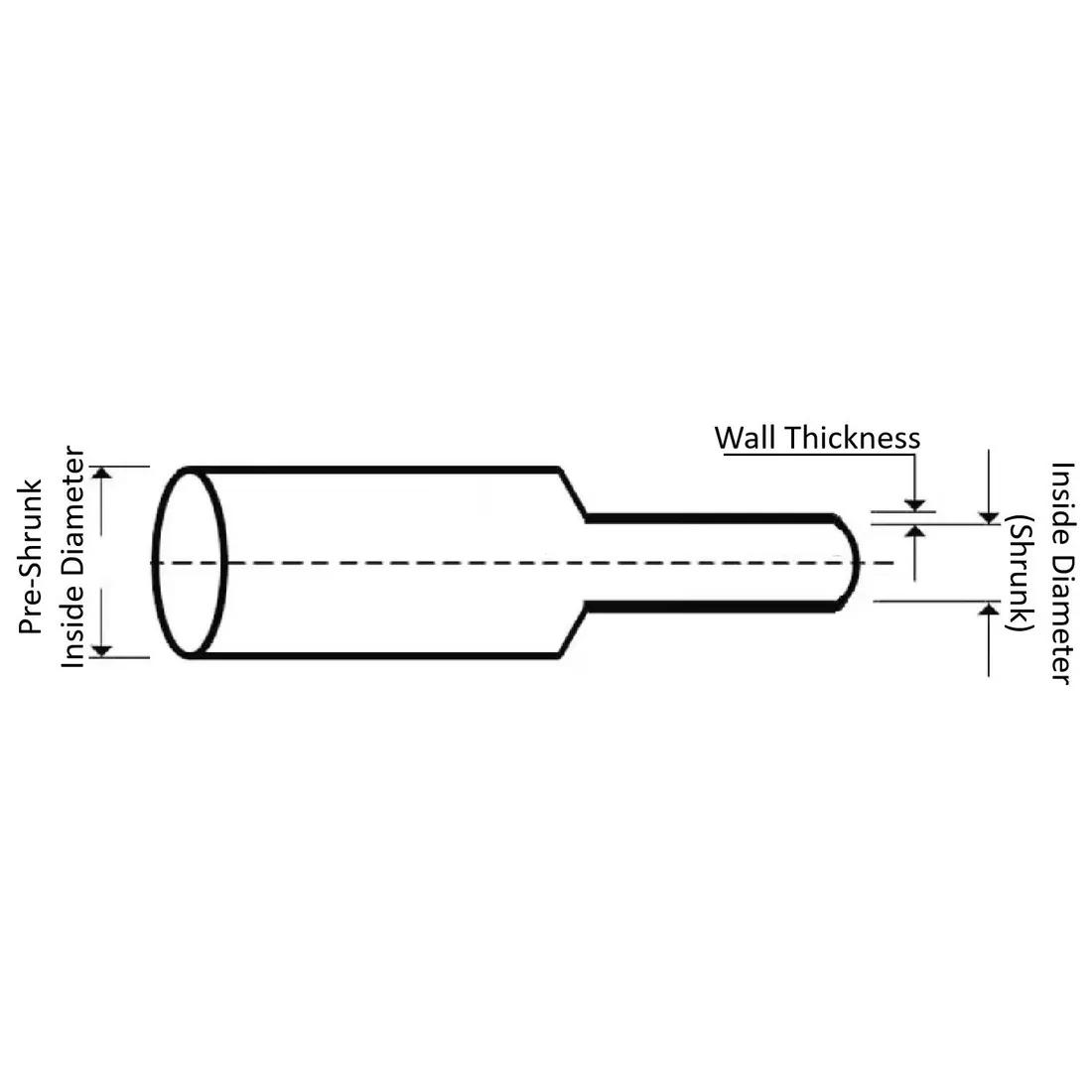

Item Code | Wall Thickness (Shrunk) | Material Flammability Standard | Color | Minimum Full Recovery Temperature | Packaging Style | Shrink Ratio | Maximum Operating Temperature | Inside Diameter (Shrunk) | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Pre-Shrunk Inside Diameter | Minimum Shrink Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495709 | 0.33 mm | 125°C VW-1 600V | Red | 100 °C | Rollo | 2:1 | 125 °C | 0.6 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 1.2 mm | 70 °C | |
495762 | 0.65 mm | 125°C VW-1 600V | Blue | 100 °C | Rollo | 2:1 | 125 °C | 6.4 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 12.7 mm | 70 °C | |
HST028A | 1.0 mm | 125°C VW-1 600V | Black | 100 °C | Roll | 2:1 | 125 °C | 25.0 mm | -55 °C | XLPO | - | UL E204071 | 53.0 mm | 70 °C | |
HST022A | 0.8 mm | 125°C VW-1 600V | Black | 100 °C | Roll | 2:1 | 125 °C | 11.0 mm | -55 °C | XLPO | - | UL E204071 | 23.2 mm | 70 °C | |
495687 | 0.36 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 2:1 | 125 °C | 0.8 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 1.6 mm | 70 °C | |
495690 | 0.51 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 2:1 | 125 °C | 2.4 mm | -55 °C | XLPO | 75.0 m | UL E204071 | 4.8 mm | 70 °C | |
495693 | 0.65 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 2:1 | 125 °C | 6.4 mm | -55 °C | XLPO | 50.0 m | UL E204071 | 12.7 mm | 70 °C | |
495688 | 0.44 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 2:1 | 125 °C | 1.2 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 2.4 mm | 70 °C | |
495686 | 0.33 mm | 125°C VW-1 600V | Black | 100 °C | Rollo | 2:1 | 125 °C | 0.6 mm | -55 °C | XLPO | 150.0 m | UL E204071 | 1.2 mm | 70 °C |
495709
Wall Thickness (Shrunk)
0.33 mm
Material Flammability Standard
125°C VW-1 600V
Color
Red
Minimum Full Recovery Temperature
100 °C
495762
Wall Thickness (Shrunk)
0.65 mm
Material Flammability Standard
125°C VW-1 600V
Color
Blue
Minimum Full Recovery Temperature
100 °C
HST028A
Wall Thickness (Shrunk)
1.0 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
UL/CSA Description
UL E204071
HST022A
Wall Thickness (Shrunk)
0.8 mm
Material Flammability Standard
125°C VW-1 600V
Color
Black
UL/CSA Description
UL E204071
