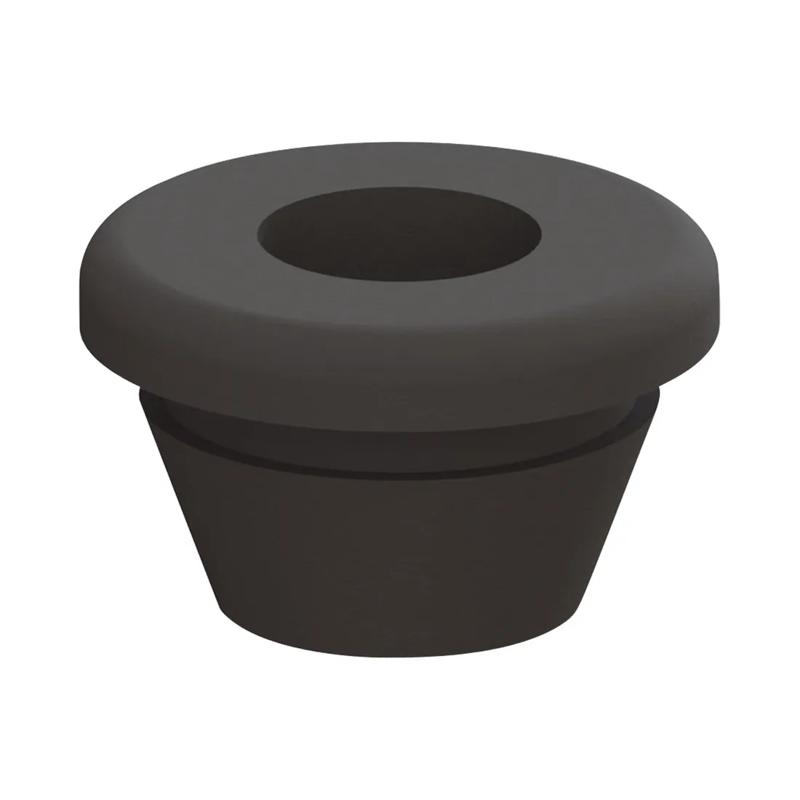

SRQFG - Quick Fit Flexible Grommets
Showing 1-10 of 39
Per page:1-10 of 39

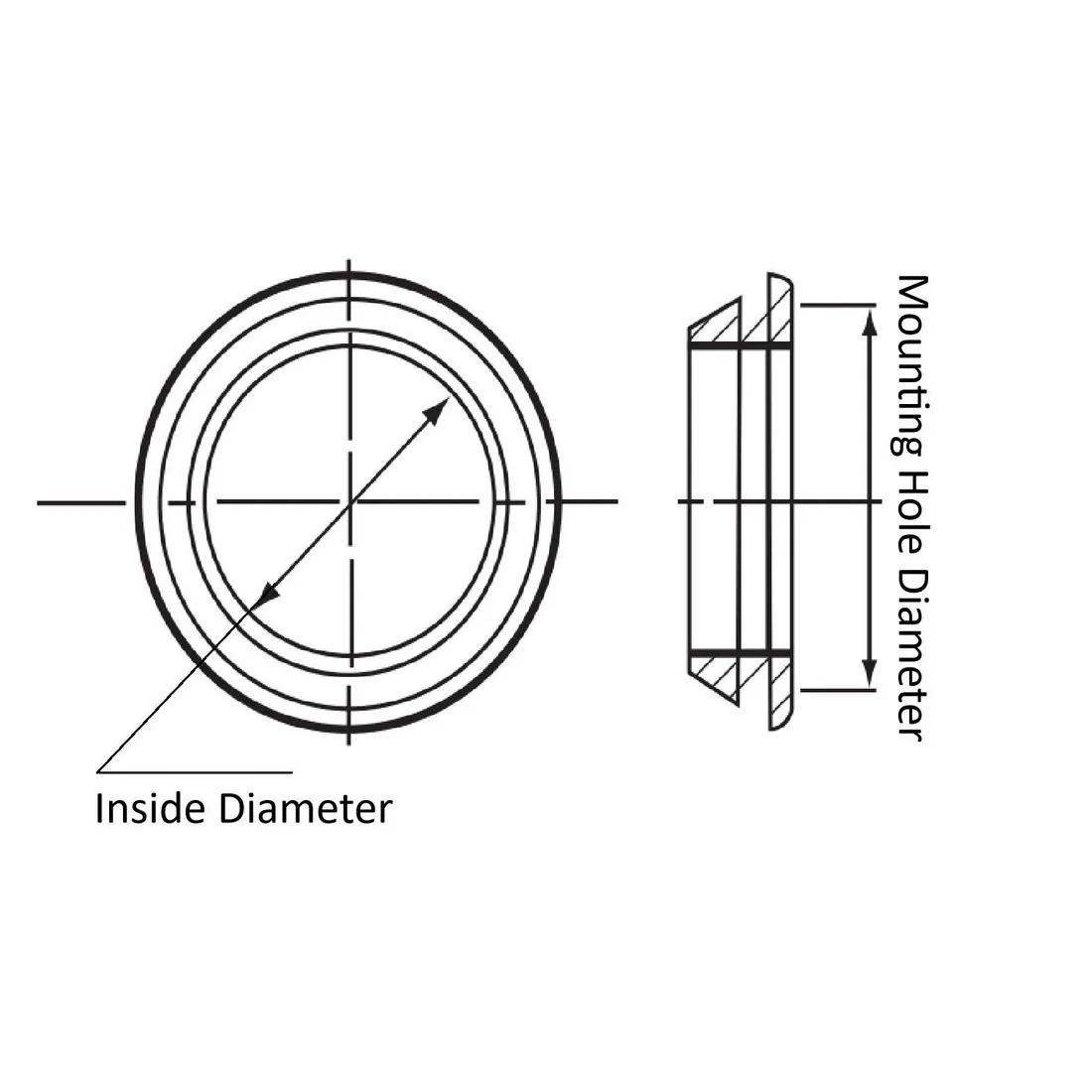

Item Code | Color | Material | Inside Diameter | Mounting Hole Diameter | Panel Thickness | Hole Diameter | Overall Height | Overall Diameter | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
QFG-16229 | Black | Elastomer | 24.0 mm | 28.0 mm | 3.0 mm | - | - | - | - | |
QFG-16209 | Black | Elastomer | 24.0 | 28.0 mm | 1.5 | 28.0 mm | 0.315 in | 1.240 in | - | |
QFG-2 | Black | Elastomer | 18.0 | 25.0 - 26.0 mm | 3.5 | 1.000 in | 10.4 mm | 29.5 mm | - | |
QFG-16223 | Black | Elastomer | 9.9 | 14.0 mm | 3.0 | 14.0 mm | 0.375 in | 0.690 in | - | |
16202 | Black | Elastomer | 8.0 | 12.0 mm | 1.5 | 12.0 mm | 1.5 mm | 12.0 mm | - | |
16212 | Black | Elastomer | 8.0 | 12.0 mm | 2.0 | 12.0 mm | 2.0 mm | 12.0 mm | - | |
16211 | Black | Elastomer | 7.0 | 11.0 mm | 2.0 | 11.0 mm | 2.0 mm | 11.0 mm | - | |
16200 | Black | Elastomer | 6.0 | 10.0 mm | 1.5 | 10.0 mm | 1.5 mm | 10.0 mm | - | |
16203 | Black | Elastomer | 10.0 | 14.0 mm | 1.5 | 14.0 mm | 1.5 mm | 14.0 mm | - |
Per page:
1-10 of 39
1–5 of 39 variants
Per page:
QFG-16229
Color
Black
Material
Elastomer
Inside Diameter
24.0 mm
Mounting Hole Diameter
28.0 mm
QFG-16209
Color
Black
Hole Diameter
28.0 mm
Inside Diameter
24.0
Mounting Hole Diameter
28.0 mm
QFG-2
Color
Black
Hole Diameter
1.000 in
Inside Diameter
18.0
Mounting Hole Diameter
25.0 - 26.0 mm
QFG-16223
Color
Black
Hole Diameter
14.0 mm
Inside Diameter
9.9
Mounting Hole Diameter
14.0 mm
Per page:
1–5 of 40
