SRPGSC - Open Universal Bushings
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Open/Closed | Material Flammability Standard | Color | Maximum Mounting Hole Size | Minimum Mounting Hole Size | Head Height | Height Under Flange | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Diameter | Inside Diameter | UL/CSA Description | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Cable Diameter | Flange Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PGSC-1926A | Open | UL94 V-2 | Black | 25.5 mm | 25.4 mm | 1.0 mm | 10.5 mm | 11.5 | 85 °C | -40 °C | Nylon 6/6 | 27.0 mm | 19.0 mm | UL E70062 | 3.0 | 27.0 | 0.8 mm | 0.748 in | 1.0 | |
PGSC-1422A | Open | UL94 V-2 | Black | 22.4 mm | 22.2 mm | 1.0 mm | 10.5 mm | 11.5 | 85 °C | -40 °C | Nylon 6/6 | 23.8 mm | 14.3 mm | UL E70062 | 3.0 | 23.8 | 0.8 mm | 0.563 in | 1.0 | |

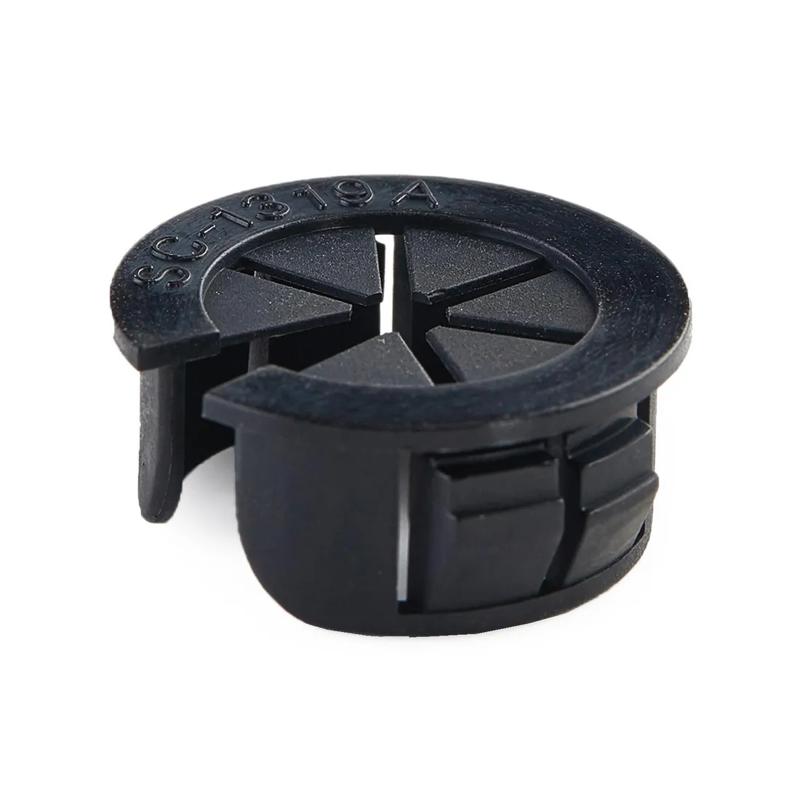

PGSC-1319A | Open | UL94 V-2 | Black | 19.1 mm | 19.0 mm | 1.0 mm | 8.9 mm | 9.9 | 85 °C | -40 °C | Nylon 6/6 | 21.8 mm | 12.7 mm | UL E70062 | 3.0 | 21.8 | 0.8 mm | 0.500 in | 1.0 | |
PGSC-2128A | Open | UL94 V-2 | Black | 28.0 mm | 27.8 mm | 1.0 mm | 10.5 mm | 11.5 | 85 °C | -40 °C | Nylon 6/6 | 29.5 mm | 20.7 mm | UL E70062 | 3.0 | 29.5 | 0.8 mm | 0.815 in | 1.0 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
PGSC-1926A
Open/Closed
Open
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Mounting Hole Size
25.5 mm
PGSC-1422A
Open/Closed
Open
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Mounting Hole Size
22.4 mm
PGSC-1319A
Open/Closed
Open
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Mounting Hole Size
19.1 mm
PGSC-2128A
Open/Closed
Open
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Mounting Hole Size
28.0 mm
