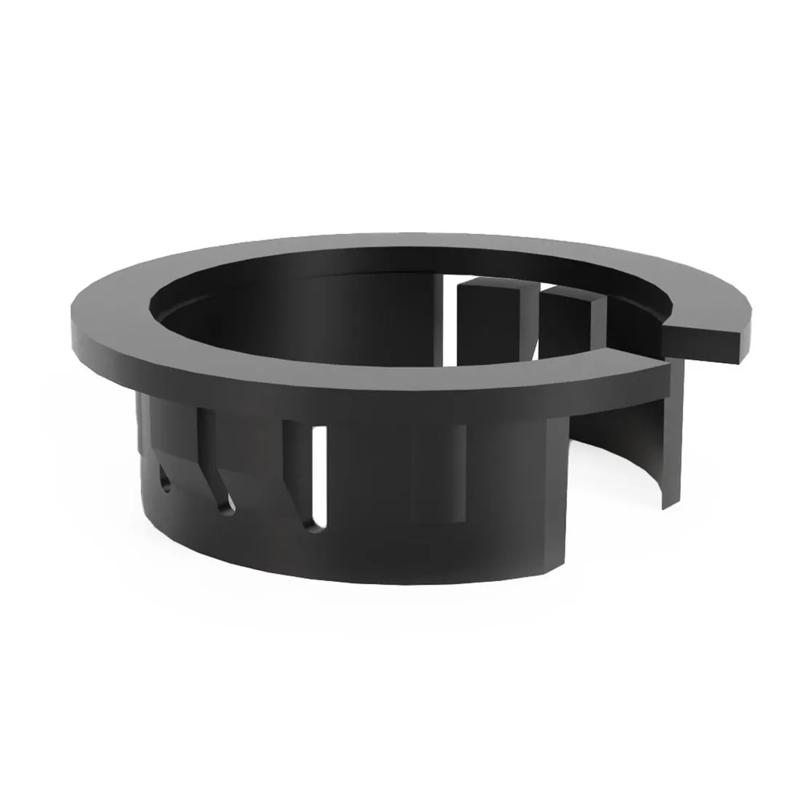

SRPGSB-A - Standard Open Insulation Bushings
Item Code | Open/Closed | Material Flammability Standard | Color | Maximum Mounting Hole Size | Cable Diameter | Panel Thickness | Overall Height | Maximum Operating Temperature | Type | Minimum Operating Temperature | Material | Overall Diameter | Inside Diameter | UL/CSA Description | Maximum Panel Thickness | Head Diameter | Mounting Hole Diameter | Head Height | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PGSB-1013A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 13.0 mm | 9.0 mm | 3.5 mm | 10.5 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 14.9 mm | 9.0 | UL E320906 | 3.5 | 14.9 | 13.0 mm | 1.5 mm | 0.8 | |
PGSB-3A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 14.3 mm | 9.9 mm | 3.2 mm | 10.3 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 16.3 mm | 9.9 | UL E320906 | 3.2 | 16.3 | 14.3 mm | 1.6 mm | 0.8 | |
PGSB-7A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 34.9 mm | 29.7 mm | 3.2 mm | 10.3 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 37.3 mm | 29.7 | UL E320906 | 3.2 | 37.3 | 34.9 mm | 1.6 mm | 0.8 | |
PGSB-1316A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 16.0 mm | 10.5 mm | 3.5 mm | 10.5 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 18.0 mm | 10.5 | UL E320906 | 3.5 | 18.0 | 16.0 mm | 1.6 mm | 1.2 | |
PGSB-9A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 25.0 mm | 20.4 mm | 3.0 mm | 10.3 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 26.4 mm | 20.4 | UL E320906 | 3.0 | 26.4 | 25.0 mm | 1.6 mm | 0.8 | |
PGSB-5A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 27.8 mm | 22.2 mm | 3.2 mm | 10.3 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 29.4 mm | 22.2 | UL E320906 | 3.2 | 29.4 | 27.8 mm | 1.6 mm | 0.8 | |
PGSB-2A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 11.1 mm | 7.9 mm | 3.2 mm | 10.3 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 12.7 mm | 7.9 | UL E320906 | 3.2 | 12.7 | 11.1 mm | 1.6 mm | 0.8 | |
PGSB-0609A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 9.5 mm | 6.6 mm | 1.7 mm | 6.5 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 11.4 mm | 6.6 | UL E320906 | 1.7 | 11.4 | 9.5 mm | 1.3 mm | 0.7 | |
PGSB-1519A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 19.0 mm | 14.5 mm | 3.3 mm | 11.0 | 185 °F | Standard Open, Insulation | -40 °F | Nylon 6/6 | 20.6 mm | 14.5 | UL E320906 | 3.3 | 20.6 | 19.0 mm | 1.3 mm | 1.2 |
PGSB-1013A
Open/Closed
Open/Closed
Material Flammability Standard
Heat Stabilised to UL94 V-2
Color
Black
Maximum Mounting Hole Size
13.0 mm
PGSB-3A
Open/Closed
Open/Closed
Material Flammability Standard
Heat Stabilised to UL94 V-2
Color
Black
Maximum Mounting Hole Size
14.3 mm
PGSB-7A
Open/Closed
Open/Closed
Material Flammability Standard
Heat Stabilised to UL94 V-2
Color
Black
Maximum Mounting Hole Size
34.9 mm
PGSB-1316A
Open/Closed
Open/Closed
Material Flammability Standard
Heat Stabilised to UL94 V-2
Color
Black
Maximum Mounting Hole Size
16.0 mm
