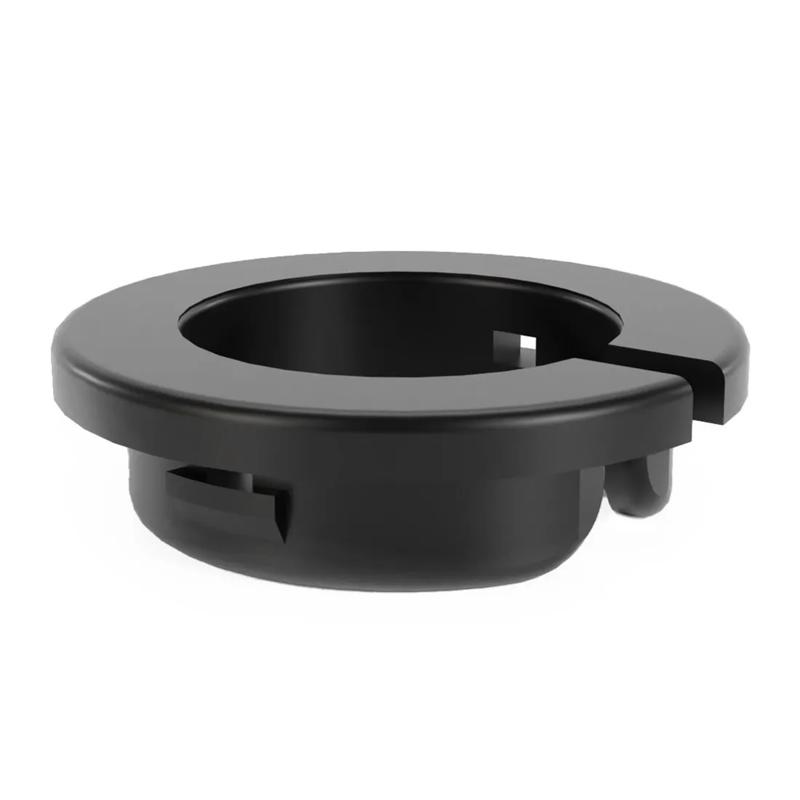

SRPGSA - Shallow Open Insulation Bushings
Item Code | Open/Closed | Material Flammability Standard | Color | Maximum Mounting Hole Size | Mounting Hole Diameter | Cable Diameter | Panel Thickness | Overall Height | Maximum Operating Temperature | Type | Minimum Operating Temperature | Material | Overall Diameter | Inside Diameter | UL/CSA Description | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PGSA-1822A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 22.0 mm | 22.0 mm | 17.6 mm | 1.6 mm | 5.6 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 25.5 mm | 17.6 | UL E320906 | 1.6 | 22.5 | 0.8 | |
PGSA-2024A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 24.0 mm | 24.0 mm | 19.5 mm | 1.6 mm | 5.3 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 27.0 mm | 19.5 | UL E320906 | 1.6 | 27.0 | 1.0 | |
PGSA-2327A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 27.1 mm | 27.1 mm | 22.9 mm | 1.0 mm | 6.0 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 35.1 mm | 22.9 | UL E320906 | 1.0 | 35.1 | 0.4 | |
PGSA-1316A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 16.0 mm | 16.0 mm | 12.2 mm | 1.4 mm | 5.4 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 19.4 mm | 12.2 | UL E320906 | 1.4 | 19.4 | 1.0 | |
PGSA-1013A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 13.0 mm | 13.0 mm | 9.2 mm | 1.5 mm | 5.3 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 16.2 mm | 9.2 | UL E320906 | 1.5 | 16.2 | 1.0 | |
PGSA-2529A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 29.0 mm | 29.0 mm | 24.5 mm | 1.1 mm | 7.0 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 35.1 mm | 24.5 | UL E320906 | 1.1 | 35.1 | 0.4 | |
PGSA-0407A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 7.0 mm | 6.9 mm | 4.8 mm | 1.0 mm | 5.0 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 10.4 mm | 4.8 | UL E320906 | 1.0 | 10.4 | 0.4 | |
PGSA-1519A | Open/Closed | Heat Stabilised to UL94 V-2 | Black | 19.0 mm | 19.0 mm | 14.3 mm | 1.5 mm | 5.7 | 185 °F | Shallow Open, Insulation | -40 °F | Nylon 6/6 | 22.7 mm | 14.3 | UL E320906 | 1.5 | 22.7 | 1.0 |
