SRGRS - Grommet Sleeves
Showing 1-3 of 3
Per page:1-3 of 3

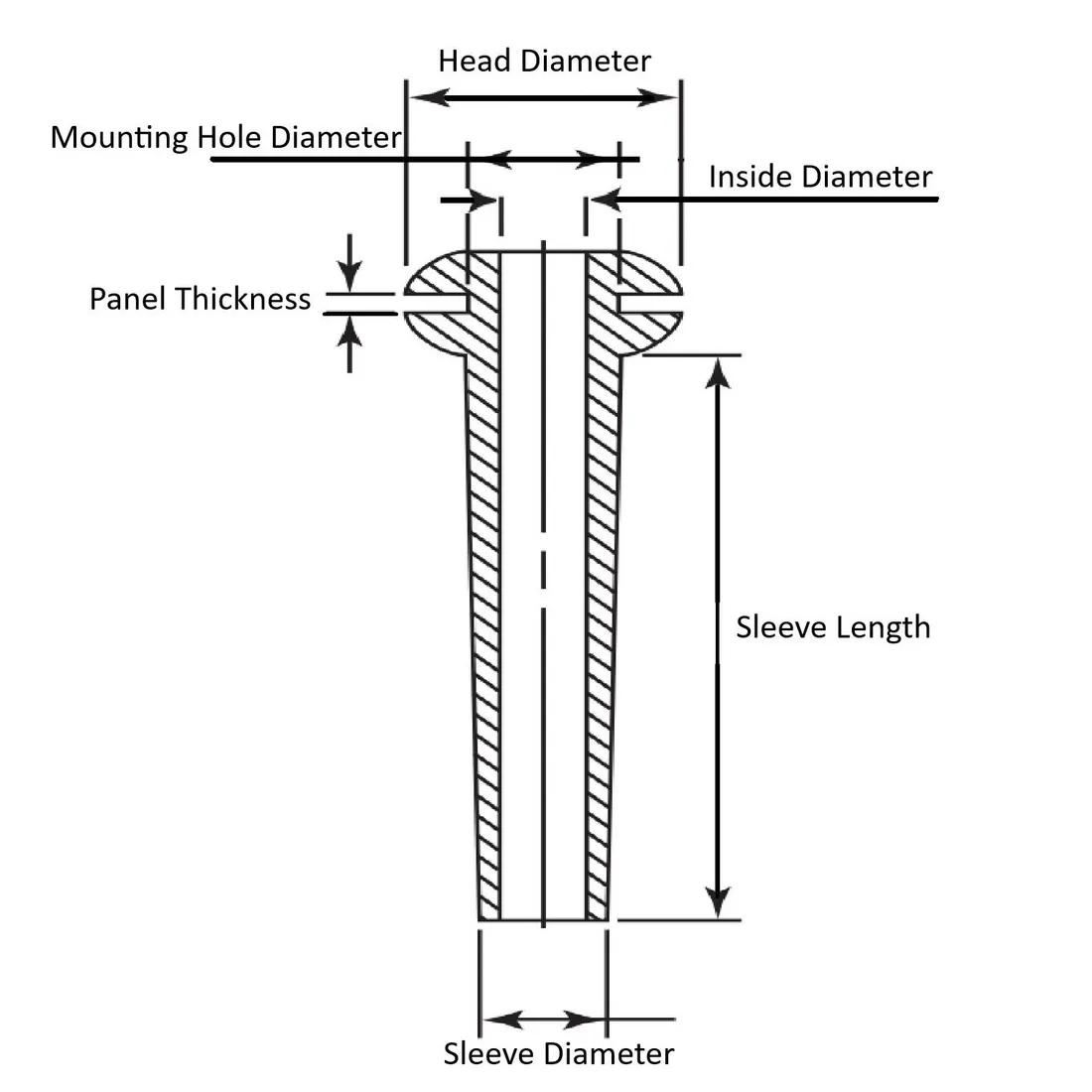

Item Code | Sleeve Length | Color | Material | Inside Diameter | Head Diameter | Mounting Hole Diameter | Sleeve Diameter (Seed) | Panel Thickness | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
RGS1-60466 | 1.650 in | Black | PVC | 0.200 in | 0.560 in | 0.343 in | 0.280 in | 0.062 in | 1 | |
GRS1030151A | 1.250 in | Black | Flexible PVC | 0.240 in | 0.560 in | 0.300 in | 0.311 in | 0.156 in | - | |
GRS1037091A | 0.562 in | Black | Flexible PVC | 0.250 in | 0.560 in | 0.374 in | 0.311 in | 0.094 in | - |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
RGS1-60466
Sleeve Length
1.650 in
Color
Black
Material
PVC
Inside Diameter
0.200 in
GRS1030151A
Sleeve Length
1.250 in
Color
Black
Material
Flexible PVC
Inside Diameter
0.240 in
GRS1037091A
Sleeve Length
0.562 in
Color
Black
Material
Flexible PVC
Inside Diameter
0.250 in
