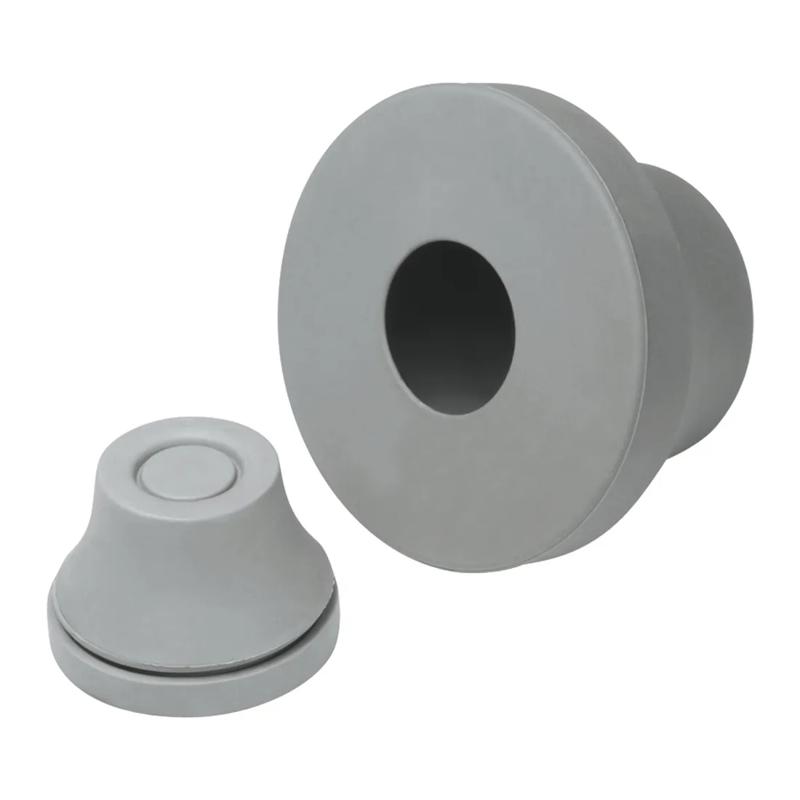

SRGR67 - IP67 Liquid Tight Grommets
Showing 1-10 of 18
Per page:1-10 of 18
Item Code | Maximum Cable Bundle Diameter | Color | Minimum Cable Bundle Diameter | Maximum Panel Thickness | Mounting Hole Diameter | Flange Thickness | Height Under Flange | Overall Height | Head Style | Type | Thread Size | Material | Overall Diameter | Minimum Panel Thickness | Head Diameter | Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LTG-1 | 5.0 mm | Gray | 3.0 mm | 2.0 mm | 12.7 mm | 6.8 mm | 6.0 mm | 12.8 mm | Round | 2 | PG-7 | EPDM | 20.0 mm | 0.5 mm | - | - | |
LTG-2 | 24.0 mm | Gray | 20.0 mm | 4.0 mm | 38.0 mm | 6.5 mm | 22.5 mm | 29.0 mm | Round | 2 | PG-29 | EPDM | 46.0 mm | 1.0 | 46.0 mm | - | |
LTG-43021 | 20.0 mm | Gray | 14.0 mm | 4.0 mm | 29.0 mm | 6.1 mm | 18.3 mm | 24.4 mm | Round | 2 | PG-21 | EPDM | 33.8 mm | 1.0 | 33.8 mm | - | |
LTG-3 | 32.0 mm | Gray | 25.0 mm | 4.0 mm | 48.0 mm | 8.0 mm | 24.0 mm | 32.0 mm | Round | 2 | PG-36 | EPDM | 57.5 mm | 1.0 | 57.5 mm | - | |
GR6743021A | 20.0 mm | Gray | 14.0 mm | 4.0 mm | 29.0 mm | - | - | - | Round | - | PG-21 | EPDM | - | 1.0 mm | - | - | |
GR6734716A | 14.0 mm | Gray | 10.0 mm | 4.0 mm | 23.0 mm | 6.5 mm | 15.5 mm | 22.0 mm | Round | - | PG-16 | EPDM | 28.0 mm | 1.0 mm | - | - | |
GR67464122A | 26.0 mm | Gray | 20.0 mm | 4.0 mm | 38.0 mm | 8.7 mm | 21.3 mm | 30.0 mm | Round | - | PG-29 | EPDM | 46.0 mm | 1.0 mm | - | - | |
GR6739897A | 7.0 mm | Gray | 5.0 mm | 4.0 mm | 16.0 mm | 6.5 mm | 12.5 mm | 19.0 mm | Round | - | PG-9 | EPDM | 21.0 mm | 1.0 mm | - | - | |
GR67M16A | 9.0 mm | Gray | 5.0 mm | 4.0 mm | 16.5 mm | - | - | - | Round | - | M16 | EPDM | - | 1.0 mm | - | - |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
LTG-1
Maximum Cable Bundle Diameter
5.0 mm
Color
Gray
Minimum Cable Bundle Diameter
3.0 mm
Maximum Panel Thickness
2.0 mm
LTG-2
Maximum Cable Bundle Diameter
24.0 mm
Color
Gray
Minimum Cable Bundle Diameter
20.0 mm
Mounting Hole Diameter
38.0 mm
LTG-43021
Maximum Cable Bundle Diameter
20.0 mm
Color
Gray
Minimum Cable Bundle Diameter
14.0 mm
Mounting Hole Diameter
29.0 mm
LTG-3
Maximum Cable Bundle Diameter
32.0 mm
Color
Gray
Minimum Cable Bundle Diameter
25.0 mm
Mounting Hole Diameter
48.0 mm
Per page:
1–5 of 19
