SRGR - Rubber Hole Grommets
Showing 1-10 of 89
Per page:1-10 of 89

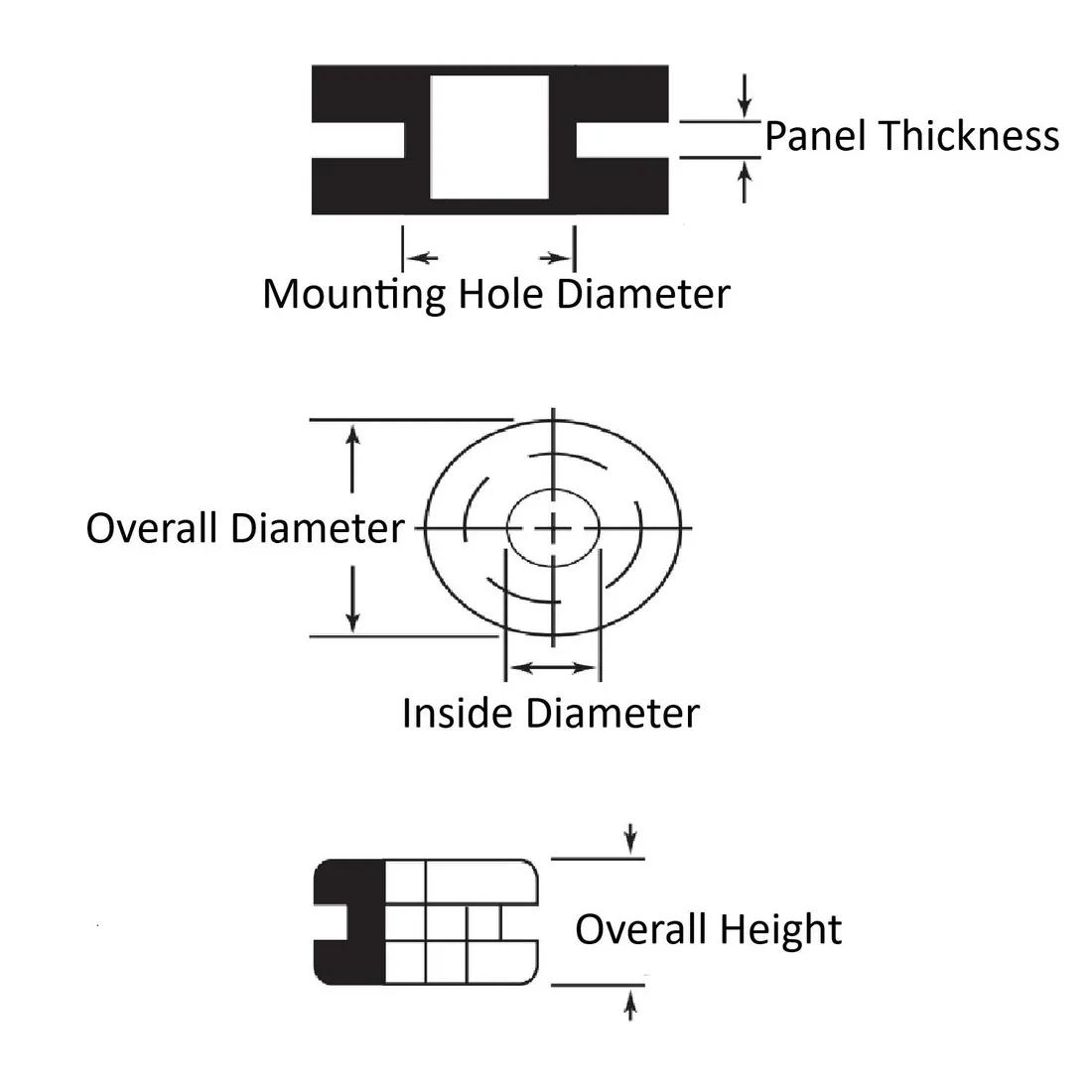

Item Code | Minimum Tensile Strength | Color | Hardness | Inside Diameter | Mounting Hole Diameter | Maximum Tensile Strength | Panel Thickness | Maximum Temperature | Material | Overall Diameter | Overall Height | Minimum Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GR3035A | 30 PSI | Black | 60 Durometer | 0.375 in | 0.563 in | 100 PSI | 0.188 in | 107 °C | SBR | 0.813 in | 0.375 in | -46 °C | |
GR3016A | 30 PSI | Black | 60 Durometer | 0.375 in | 0.500 in | 100 PSI | 0.125 in | 107 °C | SBR | 0.625 in | 0.406 in | -46 °C | |
GR3017A | 30 PSI | Black | 60 Durometer | 0.375 in | 0.531 in | 100 PSI | 0.125 in | 107 °C | SBR | 0.750 in | 0.375 in | -46 °C | |
GR3002A | 30 PSI | Black | 60 Durometer | 0.250 in | 0.438 in | 100 PSI | 0.063 in | 107 °C | SBR | 0.625 in | 0.188 in | -46 °C | |
GR3041A | 30 PSI | Black | 60 Durometer | 0.156 in | 0.250 in | 100 PSI | 0.063 in | 107 °C | SBR | 0.375 in | 0.188 in | -46 °C | |
GR3001A | 30 PSI | Black | 60 Durometer | 0.125 in | 0.250 in | 100 PSI | 0.063 in | 107 °C | SBR | 0.344 in | 0.188 in | -46 °C | |
GR3033A | 30 PSI | Black | 60 Durometer | 0.375 in | 0.500 in | 100 PSI | 0.250 in | 107 °C | SBR | 0.750 in | 0.500 in | -46 °C | |
GR3031A | 30 PSI | Black | 60 Durometer | 0.750 in | 1.063 in | 100 PSI | 0.063 in | 107 °C | SBR | 1.375 in | 0.375 in | -46 °C | |
GR3027A | 30 PSI | Black | 60 Durometer | 0.250 in | 0.469 in | 100 PSI | 0.250 in | 107 °C | SBR | 0.625 in | 0.500 in | -46 °C |
Per page:
1-10 of 89
1–5 of 89 variants
Per page:
GR3035A
Minimum Tensile Strength
30 PSI
Color
Black
Hardness
60 Durometer
Inside Diameter
0.375 in
GR3016A
Minimum Tensile Strength
30 PSI
Color
Black
Hardness
60 Durometer
Inside Diameter
0.375 in
GR3017A
Minimum Tensile Strength
30 PSI
Color
Black
Hardness
60 Durometer
Inside Diameter
0.375 in
GR3002A
Minimum Tensile Strength
30 PSI
Color
Black
Hardness
60 Durometer
Inside Diameter
0.250 in
Per page:
1–5 of 90
